Snakeffc toolhead

sadaoikebe·SnakeOilXY-FFC·toolhead/snakeffc-toolhead.kicad_pcb

Snakeffc toolhead PCB layout, top view — open source board by sadaoikebe
Simulate this board

About the Snakeffc toolhead PCB

Snakeffc toolhead is an open source PCB design by sadaoikebe, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 23.8 × 45.2 mm, with 12 components from 12 distinct parts.

Other key parts include the ADXL345. By type, the board carries 10 connectors, 1 IC and 1 capacitor.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

FFC mod for SnakeOilXY 3-D printer

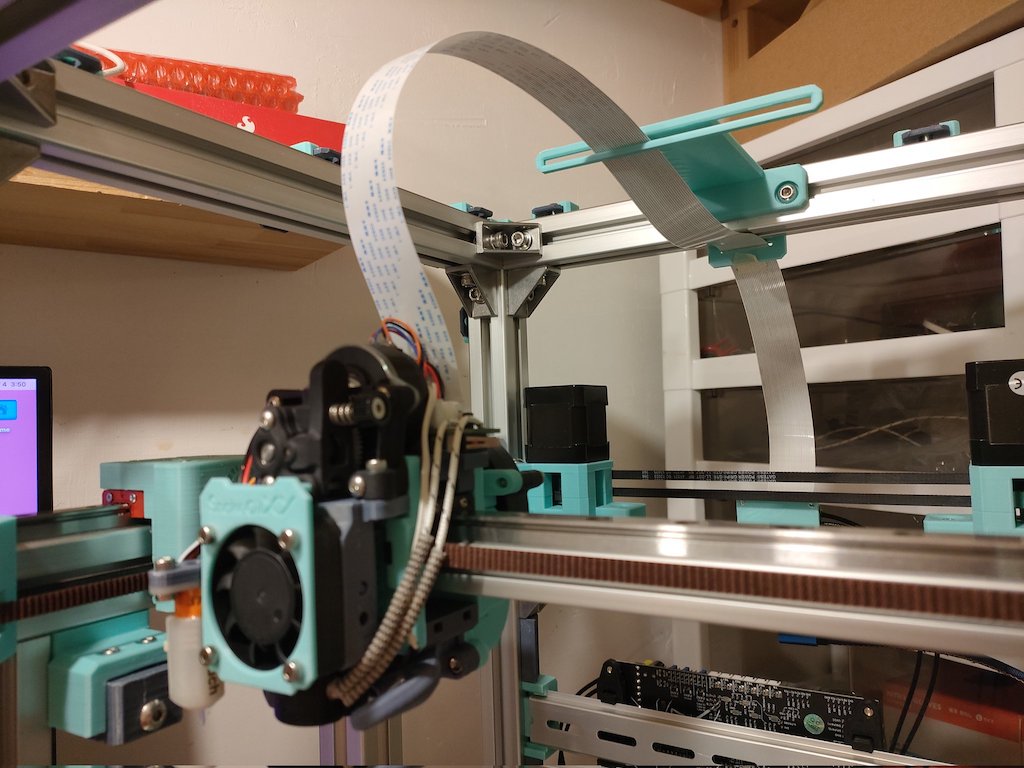

This is a toolhead PCB suite for SnakeOil-XY 3-D printer. It's a combo of a toolhead PCB and a dedicated MCU. MCU is connected to the toolhead by a ribbon cable, which makes connection simpler and also makes toolhead lighter. It only needs USB wire and 24V power supply connected to the MCU board. It has an ADXL345 accelerometer on-board. It has an X endstop on board, which fits SnakeOilXY toolhead dimension. * This system is compatible only with Klipper.

Snakeffc toolhead, from the project README
From the project README

Main components on the Snakeffc toolhead

ADXL345

Snakeffc toolhead bill of materials (BOM)

12 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADXL345
U2
1
PT100_NTC
J1
1
CONN_01X30
Conn_01x30
J4
1
HEATER
J5
1
HOTEND_FAN
J8
1
PARTCOOLER_FAN
J9
1
ZMIN
J10
1
SERVO
J11
1
E_STEPPER
J12
1
X_HOME
J13
1
AUX1
J16
1
0.1U
0.1u
C2

Snakeffc toolhead design files

The KiCad project lives in the sadaoikebe/SnakeOilXY-FFC repository on GitHub; these links point at the commit this page was built from.

Snakeffc toolhead: common questions

How big is the Snakeffc toolhead PCB?

The Snakeffc toolhead measures 23.8 × 45.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Snakeffc toolhead?

12 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Snakeffc toolhead design files?

From the sadaoikebe/SnakeOilXY-FFC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Snakeffc toolhead design in my own project?

Yes, under the terms of its GPL-3.0 license, which sadaoikebe chose for the repository.
