XassetteAsterisk

SdtElectronics·Xassette-Asterisk·hw/XassetteAsterisk.kicad_pcb

XassetteAsterisk PCB layout, top view — open source board by SdtElectronics
Simulate this board

About the XassetteAsterisk PCB

XassetteAsterisk is an open source PCB design by SdtElectronics, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 56 × 56 mm, with 137 components from 56 distinct parts.

Other key parts include the F133, W25Q32JVSS, SY8089AAAC, SY7201ABC and XC6206PxxxMR. By type, the board carries 59 capacitors, 35 resistors, 13 connectors, 13 diodes, 7 ICs and 4 inductors.

It belongs with the dev boards & breakouts, audio and iot & wireless designs in this gallery.

From the project

Evaluation board for AllWinner's RISC-V 64 SoC F133/D1s

Pins for LCD and DVP camera can also be used as IOs. See schematic below for detailed pin assignment.

The schematic in KiCAD format is available under hw. BOM in csv format is at docs/BOM.csv, and kitspace provides an online BOM. Do note that many components are optional (required by some specific peripherals)!

NOTE: hw-v0.1 board can NOT boot fw-v0.2 firmware. Use fw-v0.1 instead.

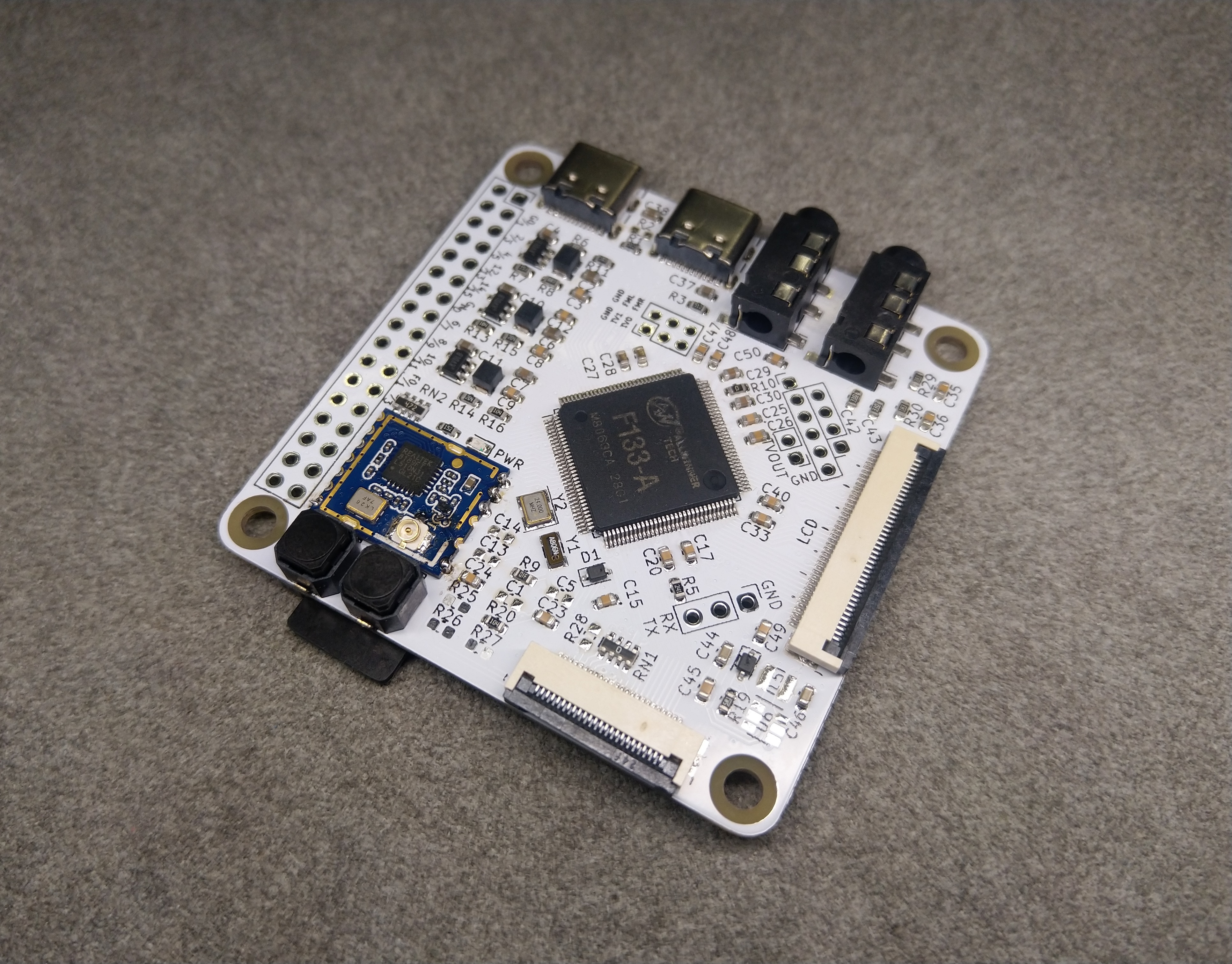

XassetteAsterisk, from the project README
From the project README

Main components on the XassetteAsterisk

F133W25Q32JVSSSY8089AAACSY7201ABCXC6206PxxxMR

XassetteAsterisk bill of materials (BOM)

137 components, 56 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
F133
U1
1
W25Q32JVSS
U2
3
SY8089AAAC
U3, U4, U5
1
SY7201ABC
U6
1
XC6206PxxxMR
U7
1
32.768K
Crystal
Y1
1
24M
Y2
1
CONN_01X40_MOUNTINGPIN
Conn_01x40_MountingPin
J1
1
CONN_01X24_MOUNTINGPIN
Conn_01x24_MountingPin
J2
2
PJ320D
AudioJack4
J3, J6
2
USB4105-GF-A
J4, J5
1
CONN_01X04
Conn_01x04
J7
1
CONN_02X17_ODD_EVEN
Conn_02x17_Odd_Even
J8
1
CONN_01X06
Conn_01x06
J9
1
CONN_02X03_ODD_EVEN
Conn_02x03_Odd_Even
J10
1
CONN_01X02
Conn_01x02
J11
1
CONN_01X03
Conn_01x03
J12
1
RTL8189FTV_Mod
J13
2
SW_SPST
FEL1, RST1
1
MountingHole_Pad
H5
Show 36 more
QtyPartRefs
1
uSD_SMD
XS1
2
1N5819
D
D1, D2
1
LED
D3
1
D
D4
9
ESD9B3.3ST5G
D5, D6, D7, D8, D9, D10, D11, D12 +1
3
2.2U
2.2u
L1, L2, L3
1
10U
10u
L5
2
0.1U
18p
C1, C5
10
10U
10u
C2, C4, C6, C7, C10, C11, C37, C38 +2
36
0.1U
0.1u
C3, C8, C9, C12, C15, C16, C17, C18 +28
2
18p
C13, C14
2
1u
C27, C28
2
0.47U
0.47u
C29, C30
1
0.1U
10u
C46
1
33P
33p
C52
1
10u
C55
2
0.1u
C56, C59
3
1.5K
5.1k
R1, R3, R24
1
5.1k
R2
9
10k
R4, R17, R18, R21, R25, R26, R27, R28 +1
1
240
R5
1
1k
R6
1
15K
15k
R7
1
68K
68k
R8
1
10M
R9
1
0
R10
1
100K
10k
R11
1
100K
5.1k
R12
2
100K
100k
R13, R16
2
200K
200k
R14, R15
3
2R2
R19, R29, R30
1
100k
R20
2
10K
5.1k
R22, R23
1
2.2K
2.2k
R31
1
10K
10k
R32
2
R_Pack04
RN1, RN2

XassetteAsterisk design files

The KiCad project lives in the SdtElectronics/Xassette-Asterisk repository on GitHub; these links point at the commit this page was built from.

XassetteAsterisk: common questions

How big is the XassetteAsterisk PCB?

The XassetteAsterisk measures 56 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the XassetteAsterisk?

137 components, from 56 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the XassetteAsterisk design files?

From the SdtElectronics/Xassette-Asterisk repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the XassetteAsterisk design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which SdtElectronics chose for the repository.
