WoMoHome ESP Touch LCD 7 HAT layout, top view — open source ESP32 board by Sharki-66

About the WoMoHome ESP Touch LCD 7 HAT

WoMoHome ESP Touch LCD 7 HAT is an open source ESP32 PCB design by Sharki-66, published on GitHub under the MIT license. It is a 2-layer board measuring 135 × 77 mm, with 46 components from 27 distinct parts.

Its main chip is the SIM7600 ESP32, from the ESP32 family. Other key parts include the PCF8574AP, SP3485CP, BTS40K2-1EJC and AP63203WU. By type, the board carries 14 resistors, 10 connectors, 7 ICs, 7 diodes, 5 capacitors and 1 fuse.

It belongs with the displays & leds, iot & wireless and rf & radio designs in this gallery.

From the project

Caravan Smart Home Display with esp32

Wer mit dem Wohnmobil unterwegs ist, kennt das Problem: Wie viel Gas ist noch in der Flasche? Reicht der Strom? Ist der Frischwassertank bald leer? Wie kalt wird es draußen über Nacht? Die serienmäßigen Anzeigen im Fahrzeug sind oft ungenau, schlecht ablesbar oder schlicht nicht vorhanden.

WoMo Home ersetzt das klassische EBL-Panel (LT 45x) durch ein selbstgebautes System, das alle Betriebsdaten des Wohnmobils erfasst, intelligent aufbereitet und auf einem 7-Zoll-Touchdisplay darstellt – jederzeit aktuell, übersichtlich und von überall im Fahrzeug erreichbar.

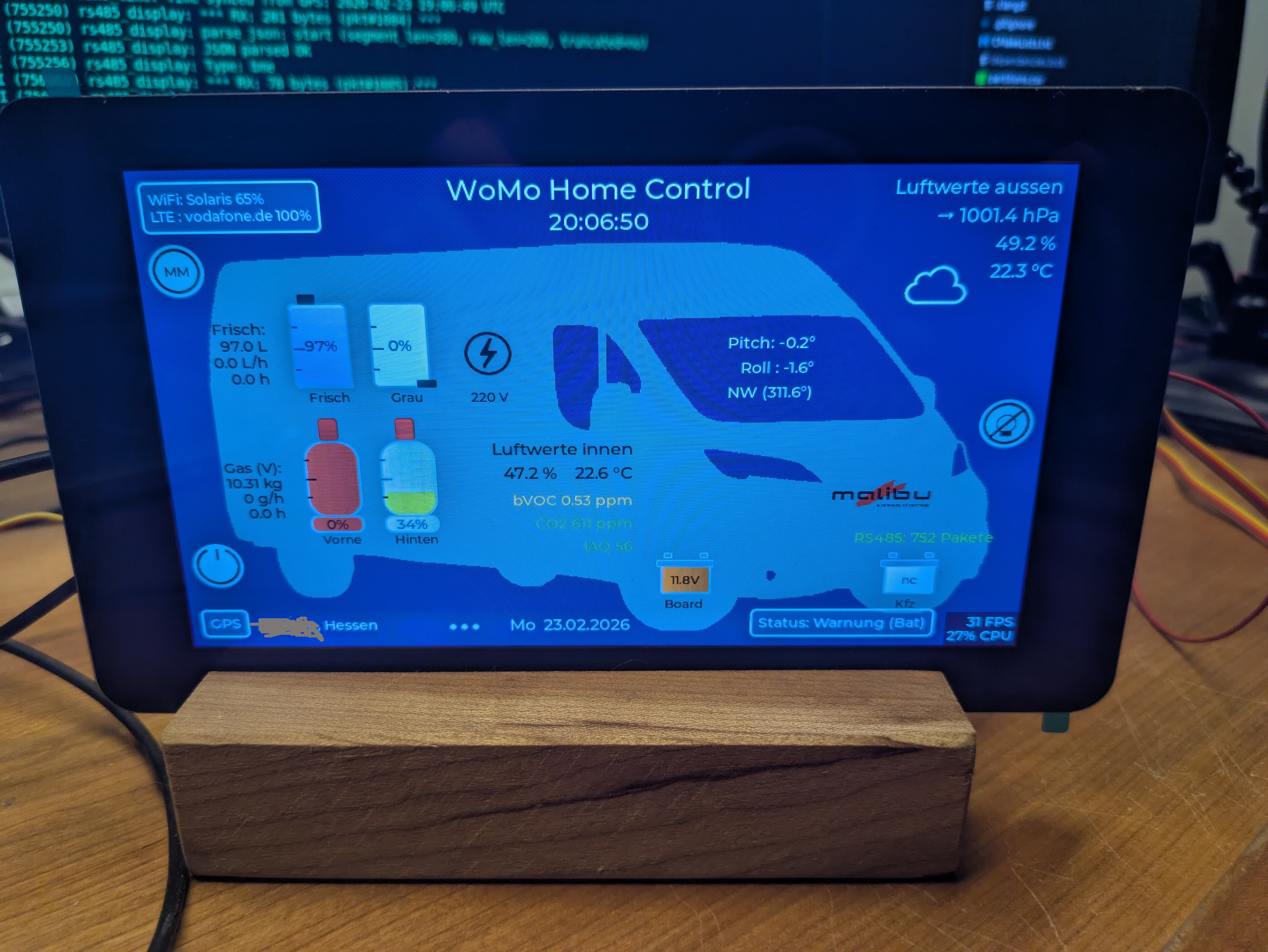

WoMoHome ESP Touch LCD 7 HAT, from the project README
From the project README

Main components on the WoMoHome ESP Touch LCD 7 HAT

PCF8574APSP3485CPSIM7600 ESP32BTS40K2-1EJCAP63203WU

WoMoHome ESP Touch LCD 7 HAT bill of materials (BOM)

46 components, 27 distinct parts.

QtyPartRefs
1
PCF8574AP
U1
1
SP3485CP
U2
1
SIM7600 ESP32
U3
3
BTS40K2-1EJC
U4, U5, U6
1
AP63203WU
U7
1
BNO055 IMU
J1
1
BME680 #1 Außen
J2
1
BME680 #0 Innen
J3
1
RS485
J4
1
HX711 GasWaage
J5
1
Sensor Grauwasser
J6
1
LT452 Malibu
J7
1
Sensor Frischwasser
J8
1
ADS1115_Module (ADC)
J9
1
PCF8523 RTC
J10
1
12V 2A
F1
1
Reset
SW1
6
BZV55B3V3
D1, D2, D3, D4, D5, D6
1
SS34
D7
1
3.9 µH
L1
Show 7 more
QtyPartRefs
2
10 nF
C1, C3
1
100nF
C2
2
22µF
C4, C6
4
1k
R1, R11, R12, R13
2
10k
R2, R14
4
22k
R3, R5, R8, R10
4
100k
R4, R6, R7, R9

WoMoHome ESP Touch LCD 7 HAT design files

The KiCad project lives in the Sharki-66/womo-home-esp32 repository on GitHub; these links point at the commit this page was built from.

WoMoHome ESP Touch LCD 7 HAT: common questions

What microcontroller does the WoMoHome ESP Touch LCD 7 HAT use?

The WoMoHome ESP Touch LCD 7 HAT is built around the SIM7600 ESP32, from the ESP32 family.

How big is the WoMoHome ESP Touch LCD 7 HAT?

The WoMoHome ESP Touch LCD 7 HAT measures 135 × 77 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WoMoHome ESP Touch LCD 7 HAT?

46 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the WoMoHome ESP Touch LCD 7 HAT design files?

From the Sharki-66/womo-home-esp32 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the WoMoHome ESP Touch LCD 7 HAT design in my own project?

Yes, under the terms of its MIT license, which Sharki-66 chose for the repository.

Can I test firmware for the WoMoHome ESP Touch LCD 7 HAT without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
