Boardstorm x3 PCB layout, top view — open source RP2040/RP2350 board by shashwtd

About the Boardstorm x3 PCB

Boardstorm x3 is an open source RP2040/RP2350 PCB design by shashwtd, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 48 components from 26 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the MCP1700T-3302E/TT, W25Q16JVUXIQ, BQ24075RGTR, MAX17048G+T10 and USBLC6-2SC6. By type, the board carries 20 capacitors, 14 resistors, 6 ICs, 5 connectors, 1 crystal and 1 switch.

It belongs with the power & battery designs in this gallery.

From the project

this is a custom RP2040 microcontroller devboard, it comes with the following features

this is a custom RP2040 microcontroller devboard, it comes with the following features

- USB-C power and programming - 2MB onboard SPI flash - 12MHz crystal oscillator - broken out GPIO headers (Pico-compatible pinout) - LiPo battery support with USB-C charging - automatic USB/battery power switching via BQ24075 - can charge and run at once on USB power - MAX17048 fuel gauge for accurate battery percentage over I2C

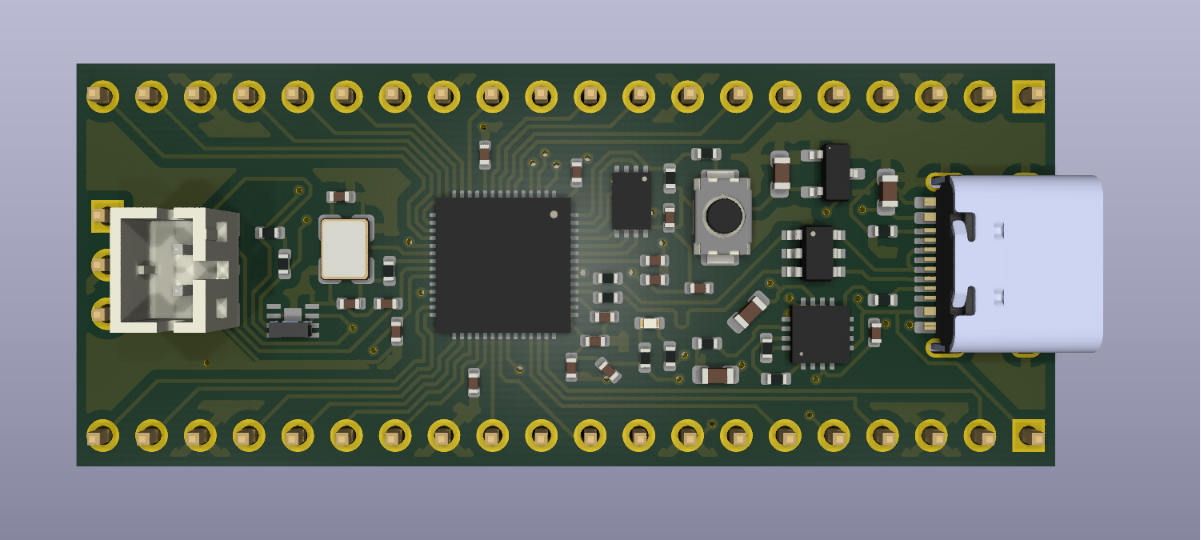

Boardstorm x3, from the project README
From the project README

Main components on the Boardstorm x3

RP2040MCP1700T-3302E/TTW25Q16JVUXIQBQ24075RGTRMAX17048G+T10USBLC6-2SC6

Boardstorm x3 bill of materials (BOM)

48 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
MCP1700T-3302E/TT
MCP1700x-330xxTT
U2
1
W25Q16JVUXIQ
W25Q16JVZPIQ TR
U3
1
BQ24075RGTR
BQ24075RGT
U4
1
MAX17048G+T10
MAX17048G_T10
U5
1
USBLC6-2SC6
U6
1
12 MHz
Y1
1
TYPE-C-31-M-12
USB_C_Receptacle_USB2.0_14P
J1
2
CONN_01X20_PIN
Conn_01x20_Pin
J2, J3
1
CONN_01X03_PIN
Conn_01x03_Pin
J4
1
Conn_01x02
J5
1
TS-1088-AR02016
SW_Push
SW1
1
LED
D1
2
1UF
1uF
C1, C10
12
0.1UF
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +4
2
4.7UF
4.7uF
C13, C14
2
33PF
33pF
C15, C16
2
10UF
10uF
C18, C19
2
5.1K
R1, R2
2
27
R3, R4
Show 6 more
QtyPartRefs
2
1K
R5, R6
2
10K
R7, R8
1
8.87K
R9
1
47K
R10
1
3.09K
3.1K
R11
3
4.7K
R12, R13, R14

Boardstorm x3 design files

The KiCad project lives in the shashwtd/boardstorm-x3 repository on GitHub; these links point at the commit this page was built from.

Boardstorm x3: common questions

What microcontroller does the Boardstorm x3 use?

The Boardstorm x3 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Boardstorm x3 PCB?

The Boardstorm x3 measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Boardstorm x3?

48 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Boardstorm x3 design files?

From the shashwtd/boardstorm-x3 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Boardstorm x3 design in my own project?

The repository has no license, so all rights stay with shashwtd. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Boardstorm x3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
