SlimeVR board

Skaut0071·SlimeVR_Tracker·Board/SlimeVR_board.kicad_pcb

SlimeVR board layout, top view — open source ESP32 board by Skaut0071

About the SlimeVR board

SlimeVR board is an open source ESP32 PCB design by Skaut0071, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 61 × 50 mm, with 34 components from 22 distinct parts.

Its main chip is the ESP32-C3-WROOM-02-N4, from the ESP32 family. Other key parts include the TP4056-ESOP8 and XC6220B331MR. By type, the board carries 10 resistors, 8 capacitors, 6 connectors, 4 diodes, 3 ICs and 2 switches.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

Cutsom PCB based on SlimeVR project for Full Body Tracking for Virtual Reality without need of expensive base stations. This repositary contains PCB files for production, also contains all files during developing process.

- Schematic Version: 2.0 - Project Type: DIY/Hobby - Manufacture: JLCPCB

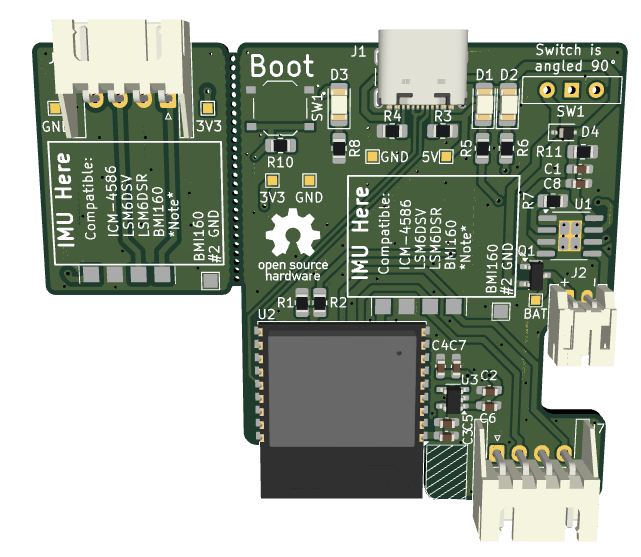

SlimeVR board, from the project README
From the project README

Main components on the SlimeVR board

TP4056-ESOP8ESP32-C3-WROOM-02-N4XC6220B331MR

SlimeVR board bill of materials (BOM)

34 components, 22 distinct parts.

QtyPartRefs
1
TP4056-ESOP8
U1
1
ESP32-C3-WROOM-02-N4
U2
1
XC6220B331MR
U3
1
DMP3099L-7
Q1
1
USB_C_Receptacle_USB2.0_16P
J1
1
JST-PH
J2
2
SMD_Pads
J3, J4
2
JTX-HX-A-1
J7, J8
1
LA215009
SW1
1
SW_Push
SW2
1
FYLS-1206URC
D1
1
FYLS-1206PGC
D2
1
FYLS-1206UWC
D3
1
1N4007WS
D4
4
100nF
C1, C2, C4, C5
2
10uF
C3, C7
2
1uF
C6, C8
2
47k
R1, R2
3
5.1k
R3, R4, R11
3
1k
R5, R6, R8
Show 2 more
QtyPartRefs
1
1.2k
R7
1
10k
R10

SlimeVR board design files

The KiCad project lives in the Skaut0071/SlimeVR_Tracker repository on GitHub; these links point at the commit this page was built from.

SlimeVR board: common questions

What microcontroller does the SlimeVR board use?

The SlimeVR board is built around the ESP32-C3-WROOM-02-N4, from the ESP32 family.

How big is the SlimeVR board?

The SlimeVR board measures 61 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SlimeVR board?

34 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the SlimeVR board design files?

From the Skaut0071/SlimeVR_Tracker repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SlimeVR board design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which Skaut0071 chose for the repository.

Can I test firmware for the SlimeVR board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
