About the ICEPico PCB

ICEPico is an open source RP2040/RP2350 PCB design by SorenGilkeyJohnson, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 21 × 51 mm, with 69 components from 32 distinct parts.

Its main chip is the RP2350A, from the RP2040/RP2350 family. Other key parts include the ICE40UP5K-SG48I, AP63203, TLV75512PDBV and W25Q128JVP. By type, the board carries 33 capacitors, 18 resistors, 5 ICs, 4 diodes, 3 connectors and 2 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A custom dev board based on the RP2350 microcontroller and the ICE40UP5K-SG48I FPGA.

The iCEPico is a custom PCB that pairs the RP2350 with the Lattice ICE40UP5K-SG48I FPGA. The board is modelled after the Raspberry Pi Pico, with the addition of the FPGA and a +1V2 regulator to supply it. The board matches the physical dimensions of the Pico, though it does not replicate the Pico's pinout.

I made this project because I wanted to learn FPGA design. Initially, I thought about using a BGA package but decided to go with QFN instead due to PCB costs and complexity. I had previously designed for the RP2040 but never the RP2350. I plan to use the project as a general-purpose dev…

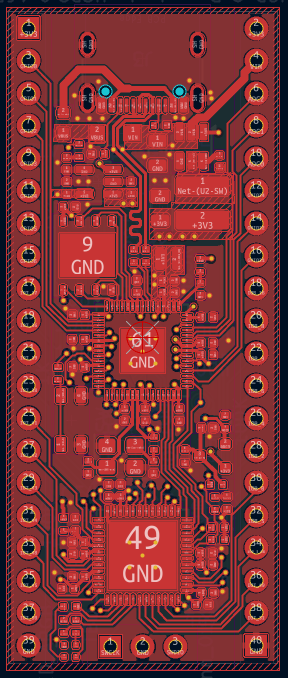

ICEPico, from the project README — From the project README

Main components on the ICEPico

ICE40UP5K-SG48I AP63203 TLV75512PDBV W25Q128JVP RP2350A

ICEPico bill of materials (BOM)

69 components, 32 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ICE40UP5K-SG48I	QFN-48-1EP_7x7mm_P0.5mm_EP5.3x5.3mm	U1
1	AP63203	TSOT-23-6	U2
1	TLV75512PDBV	SOT-23-5	U3
1	W25Q128JVP	WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm	U4
1	RP2350A	QFN-60-1EP_7x7mm_P0.4mm_EP3.4x3.4mm	U5
1	BSS138	SOT-23	Q1
1	12MHZ	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J1
1	Conn_02x20_Odd_Even	PinHeader_2x20_P2.54mm_Vertical	J2
1	USB_C_Receptacle_USB2.0_16P	USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal	J3
1	Polyfuse	Fuse_0603_1608Metric	F1
1	SW_MEC_5G	SW_3_42 4-PIN Button	SW1
1	PMEG4010ER	Nexperia_CFP3_SOD-123W	D1
1	LED_ARGB	LED_SK6812_EC15_1.5x1.5mm	D2
2	LED	LED_0402_1005Metric	D3, D4
1	3u9	L_Chilisin_BWVS00404012	L1
1	3u3	L_Changjiang_FTC201607S	L2
17	100n	C_0402_1005Metric	C1, C3, C6, C7, C10, C11, C14, C18 +9
9	4u7	C_0402_1005Metric	C2, C4, C9, C12, C13, C24, C26, C28 +1
1	10u	C_0805_2012Metric	C5

Show 12 more

Qty	Part	Footprint	Refs
2	1u	C_0402_1005Metric	C8, C15
1	1n	C_0402_1005Metric	C16
1	22u	C_0805_2012Metric	C17
2	TBD	C_0402_1005Metric	C21, C22
2	5K1	R_0402_1005Metric	R1, R2
1	100R	R_0402_1005Metric	R3
3	10K	R_0402_1005Metric	R4, R5, R11
5	TBD	R_0402_1005Metric	R6, R7, R8, R9, R12
2	100K	R_0402_1005Metric	R10, R13
2	1K	R_0402_1005Metric	R14, R15
2	27R	R_0402_1005Metric	R16, R17
1	33R	R_0402_1005Metric	R18

ICEPico design files

The KiCad project lives in the SorenGilkeyJohnson/iCEPico repository on GitHub; these links point at the commit this page was built from.

LayoutKiCad/ICE40UP5K-SG48I.kicad_pcb
SchematicKiCad/ICE40UP5K-SG48I.kicad_sch
BOMfabrication/bom.csv

ICEPico: common questions

What microcontroller does the ICEPico use?

The ICEPico is built around the RP2350A, from the RP2040/RP2350 family.

How big is the ICEPico PCB?

The ICEPico measures 21 × 51 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ICEPico?

69 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ICEPico design files?

From the SorenGilkeyJohnson/iCEPico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ICEPico design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which SorenGilkeyJohnson chose for the repository.
