Panelize TestBoard Final
About the Panelize TestBoard Final PCB
Panelize TestBoard Final is an open source Nordic nRF PCB design by StickyPix, published on GitHub. It is a 4-layer board measuring 98.3 × 54.6 mm, with 90 components from 55 distinct parts.
Its main chip is the NRF54L15-QFAA-R, from the Nordic nRF family. Other key parts include the ESD5451N, BQ24040DSQR, FH8614G1, BQ27220YZFR and GR6206P332MR-G. By type, the board carries 42 capacitors, 18 resistors, 7 connectors, 7 inductors, 6 ICs and 4 diodes.
It belongs with the displays & leds, iot & wireless and power & battery designs in this gallery.
From the project
Spectra 6 and 4 gray E-paper frame
StickyPix is a small, rechargeable e-paper picture frame that lets you send images from a phone or desktop app over Bluetooth Low Energy. The same product family supports a four-gray black-and-white display and a six-color display.
StickyPix is developed as a complete hardware and software product:
1. Choose an image in the Flutter app. 2. Crop, rotate, and adjust the image for the selected device. 3. The app converts the image to the display's limited palette using dithering. 4. The processed framebuffer is sent to the device over BLE. 5. The device refreshes the e-paper panel and returns…
Main components on the Panelize TestBoard Final
Panelize TestBoard Final bill of materials (BOM)
90 components, 55 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESD5451N | DFN1006-2 | U1 |
| 1 | BQ24040DSQR | IC_BQ24045DSQR | U2 |
| 1 | NRF54L15-QFAA-R | QFN40P600X600X90-49N | U3 |
| 1 | FH8614G1 | UDFN-4-1EP_1x1mm_P0.65mm_EP0.48x0.48mm | U4 |
| 1 | BQ27220YZFR | BGA9C50P3X3_158X162X62 | U5 |
| 1 | GR6206P332MR-G | SOT-23-3 | U6 |
| 1 | BSS138LT1G | SOT95P237X111-3N | Q1 |
| 1 | SI2301CDS-T1-GE3 | SOT-23 | Q2 |
| 1 | CRYSTAL_GND24 Crystal_GND24 | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y2 |
| 2 | CONN_01X03_PIN Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J1, J5 |
| 1 | USB_C_RECEPTACLE_POWERONLY_6P USB_C_Receptacle_PowerOnly_6P | USB_C_SHOU_HAN_6P | J2 |
| 1 | BATTERY | BATTERY_HC-1.2-2PWT | J3 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J4 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J6 |
| 1 | FH34SRJ-50S-0.5SH_50_ | HRS_FH34SRJ-50S-0.5SH_50_ | J7 |
| 1 | Antenna_Shield | 2.4GHz_Left_Soldermask | AE1 |
| 1 | Antenna_Shield | 2.4GHz_Left_PC_ABS | AE2 |
| 1 | VAL** | mouse-bite-3mm-slot | mouse-bite-3mm-slot |
| 4 | MBR0530 | D_SOD-123 | D1, D2, D3, D4 |
| 1 | FerriteBead | C_0201_0603Metric | FB1 |
Show 35 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2.7NH 2.7nH | RF_0201_0603Metric | L1 |
| 2 | 3.5NH 3.5nH | RF_0201_0603Metric | L2, L3 |
| 2 | 10UH 10uH | L_Changjiang_FNR4012S | L4, L6 |
| 1 | 4.7UH 4.7uH | L_0603_1608Metric | L5 |
| 1 | 1.5PF 1.5pF | RF_0201_0603Metric | C1 |
| 1 | 2PF 2pF | RF_0201_0603Metric | C2 |
| 3 | 4.7UF 4.7uF | C_0402_1005Metric | C3, C36, C40 |
| 1 | 0.47UF 0.47uF | C_0402_1005Metric | C4 |
| 9 | 10UF 10uF | C_0603_1608Metric | C5, C7, C9, C10, C11, C37, C38, C39 +1 |
| 1 | 10UF 1uF | C_0603_1608Metric | C6 |
| 1 | 0.3PF 0.3pF | RF_0201_0603Metric | C8 |
| 1 | 470NF 470nF | C_0402_1005Metric | C12 |
| 1 | 100NF 100nF | C_0402_1005Metric | C13 |
| 2 | 2.2UF 2.2uF | C_0402_1005Metric | C14, C31 |
| 1 | 1UF 4.7uF | C_0603_1608Metric | C15 |
| 6 | 1UF 1uF | C_0402_1005Metric | C16, C18, C32, C33, C34, C35 |
| 1 | 3.9PF 3.9pF | C_0201_0603Metric | C17 |
| 2 | 2.2UF 2.2uF | C_0201_0603Metric | C19, C28 |
| 4 | 100NF 100nF | C_0201_0603Metric | C20, C21, C22, C25 |
| 1 | 2.2NF 2.2nF | C_0201_0603Metric | C23 |
| 1 | 0.1UF 0.1uF | C_0402_1005Metric | C24 |
| 3 | 10UF 10uF | C_0402_1005Metric | C26, C29, C30 |
| 1 | 10NF 10nF | C_0201_0603Metric | C27 |
| 1 | 4.7UF 4.7uF | C_0603_1608Metric | C44 |
| 2 | 1M | R_0402_1005Metric | R1, R15 |
| 3 | 5.1K 5.1k | R_0402_1005Metric | R2, R4, R11 |
| 2 | 0.2 | R_0402_1005Metric | R3, R16 |
| 1 | 1k | R_0201_0603Metric | R5 |
| 1 | 5.4K 5.4k | R_0402_1005Metric | R6 |
| 4 | 10K 10k | R_0402_1005Metric | R7, R12, R17, R18 |
| 1 | 2k | R_0402_1005Metric | R8 |
| 1 | 100 | R_0402_1005Metric | R9 |
| 1 | 5.1K 10k | R_0402_1005Metric | R10 |
| 1 | 0.01 | R_0402_1005Metric | R13 |
| 1 | 0 | R_0402_1005Metric | R14 |
Panelize TestBoard Final design files
The KiCad project lives in the StickyPix/Not-So-Sticky-Pix repository on GitHub; these links point at the commit this page was built from.
Panelize TestBoard Final: common questions
What microcontroller does the Panelize TestBoard Final use?
The Panelize TestBoard Final is built around the NRF54L15-QFAA-R, from the Nordic nRF family.
How big is the Panelize TestBoard Final PCB?

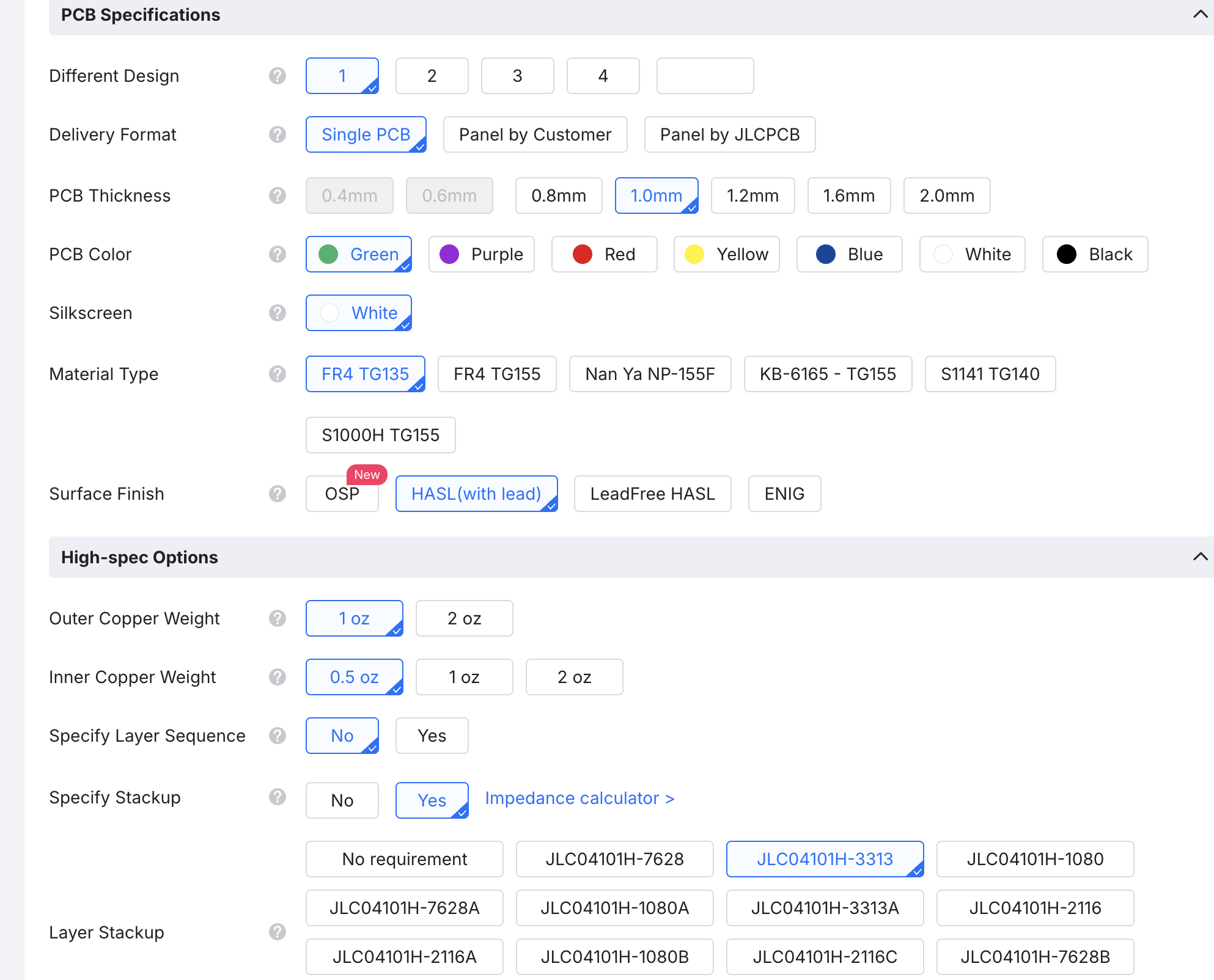

The Panelize TestBoard Final measures 98.3 × 54.6 mm, has 4 copper layers and is 1.0204 mm thick.
How many components are on the Panelize TestBoard Final?
90 components, from 55 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Panelize TestBoard Final design files?
From the StickyPix/Not-So-Sticky-Pix repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Panelize TestBoard Final design in my own project?
The repository has no license, so all rights stay with StickyPix. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Panelize TestBoard Final without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
