About the Toolbox PCB
Toolbox is an open source PCB design by StudioKAT, published on GitHub. It is a 2-layer board measuring 80.9 × 128.5 mm, with 272 components from 83 distinct parts.
Other key parts include the TL074CDR, TL072CDT and CJ431. By type, the board carries 130 resistors, 46 capacitors, 42 connectors, 24 diodes, 15 ICs and 8 switches.
It belongs with the audio designs in this gallery, and the repository also holds 1 earlier revision of it.
From the project

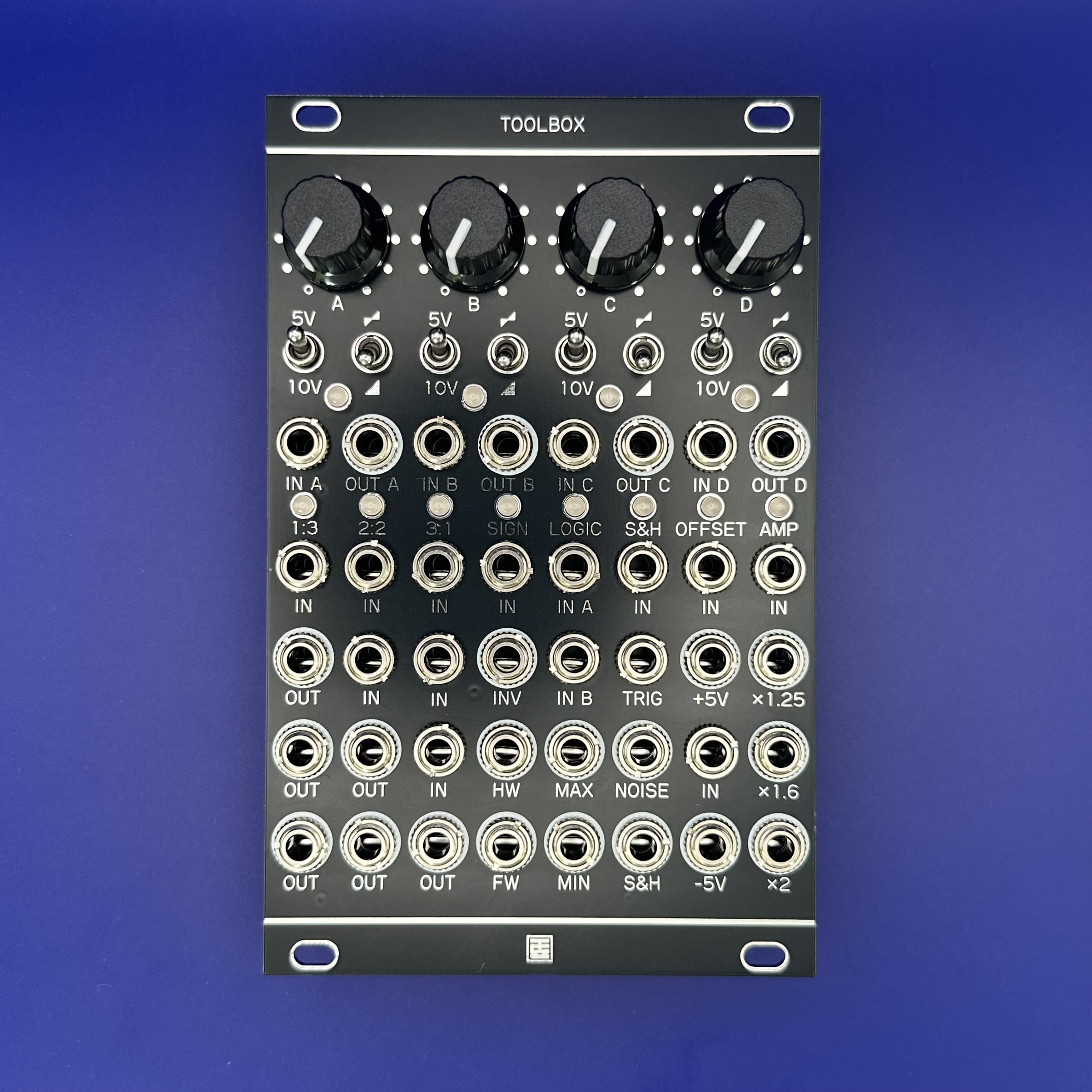

Toolbox は、16HPサイズの中にモジュラーシンセに必要な多彩なユーティリティ機能を凝縮した多機能ツールボックスモジュールです。 Mutable Instruments の「Shades」「Links」「Kinks」をベースにしつつ、独自の機能追加を行いました。
Toolbox は、16HPサイズの中にモジュラーシンセに必要な多彩なユーティリティ機能を凝縮した多機能ツールボックスモジュールです。 Mutable Instruments の「Shades」「Links」「Kinks」をベースにしつつ、独自の機能追加を行いました。
主な機能： - オーディオ/CVミキサー（加算・減算） - CVへのオフセット追加(5V/10V)・極性反転 - 1:3 バッファード・マルチプル - 2:2 ユニティミキサー - 3:1 アベレージミキサー（各チャンネルのゲイン = 1/3） - SIGNセクション：インバーター / 半波整流 / 全波整流 - LOGICセクション：アナログOR / アナログAND - S&Hセクション：サンプル＆ホールド / ホワイトノイズ出力 - OFFSET：±5V ↔ 0〜10Vの変換（5Vオフセット） - AMP：CVやオーディオ信号の増幅 - 8V → 10V（x1.25） - 5V → 8V（x1.6） - 5V → 10V（x2）
Main components on the Toolbox
Toolbox bill of materials (BOM)
272 components, 83 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | TL074CDR | SOIC-14_3.9x8.7mm_P1.27mm | U1, U2, U3, U4, U5, U6, U7, U8 +4 |
| 2 | TL072CDT | SOIC-8_3.9x4.9mm_P1.27mm | U13, U14 |
| 1 | CJ431 | SOT-23 | U15 |
| 2 | 2SC1815 | SOT-23 | Q1, Q2 |
| 1 | MMBFJ310 | SOT-23 | Q3 |
| 1 | POWER | PinHeader_2x05_2.54mm_Europower | J1 |
| 1 | OUT_1 | AudioJack_PJ301M-12 | J2 |
| 1 | IN_1 | AudioJack_PJ301M-12 | J3 |
| 1 | OUT_2 | AudioJack_PJ301M-12 | J4 |
| 1 | IN_2 | AudioJack_PJ301M-12 | J5 |
| 1 | OUT_3 | AudioJack_PJ301M-12 | J6 |
| 1 | IN_3 | AudioJack_PJ301M-12 | J7 |
| 1 | OUT_4 | AudioJack_PJ301M-12 | J8 |
| 1 | IN_4 | AudioJack_PJ301M-12 | J9 |
| 1 | LINKS_1TO3_OUT1 Links_1to3_OUT1 | AudioJack_PJ301M-12 | J10 |
| 1 | LINKS_1TO3_IN Links_1to3_IN | AudioJack_PJ301M-12 | J11 |
| 1 | LINKS_3TO1_IN1 Links_3to1_IN1 | AudioJack_PJ301M-12 | J12 |
| 1 | LINKS_1TO3_OUT2 Links_1to3_OUT2 | AudioJack_PJ301M-12 | J13 |
| 1 | LINKS_3TO1_IN2 Links_3to1_IN2 | AudioJack_PJ301M-12 | J14 |
| 1 | LINKS_3TO1_OUT Links_3to1_OUT | AudioJack_PJ301M-12 | J15 |
Show 63 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LINKS_1TO3_OUT3 Links_1to3_OUT3 | AudioJack_PJ301M-12 | J16 |
| 1 | LINKS_3TO1_IN3 Links_3to1_IN3 | AudioJack_PJ301M-12 | J17 |
| 1 | LINKS_2TO2_IN1 Links_2to2_IN1 | AudioJack_PJ301M-12 | J18 |
| 1 | LINKS_2TO2_IN2 Links_2to2_IN2 | AudioJack_PJ301M-12 | J19 |
| 1 | LINKS_2TO2_OUT1 Links_2to2_OUT1 | AudioJack_PJ301M-12 | J20 |
| 1 | LINKS_2TO2_OUT2 Links_2to2_OUT2 | AudioJack_PJ301M-12 | J21 |
| 1 | Kinks_IN | AudioJack_PJ301M-12 | J22 |
| 1 | Kinks_OUT_INV | AudioJack_PJ301M-12 | J23 |
| 1 | Kinks_OUT_HW | AudioJack_PJ301M-12 | J24 |
| 1 | Kinks_OUT_FW | AudioJack_PJ301M-12 | J25 |
| 1 | Kinks_OUT_MAX | AudioJack_PJ301M-12 | J26 |
| 1 | Kinks_IN_A | AudioJack_PJ301M-12 | J27 |
| 1 | Kinks_IN_B | AudioJack_PJ301M-12 | J28 |
| 1 | Kinks_OUT_MIN | AudioJack_PJ301M-12 | J29 |
| 1 | Jumper | PinHeader_1x03_P2.54mm_Vertical | J30 |
| 1 | Kinks_OUT_Noise | AudioJack_PJ301M-12 | J31 |
| 1 | Kinks_OUT_S&H | AudioJack_PJ301M-12 | J32 |
| 1 | Kinks_S&H_IN | AudioJack_PJ301M-12 | J33 |
| 1 | Kinks_S&H_TRIG | AudioJack_PJ301M-12 | J34 |
| 1 | OUT_+10V | AudioJack_PJ301M-12 | J35 |
| 1 | IN_±5V | AudioJack_PJ301M-12 | J36 |
| 1 | IN_+10V | AudioJack_PJ301M-12 | J37 |
| 1 | OUT_±5V | AudioJack_PJ301M-12 | J38 |
| 1 | IN | AudioJack_PJ301M-12 | J39 |
| 1 | OUT_X1.25 OUT_x1.25 | AudioJack_PJ301M-12 | J40 |
| 1 | OUT_X1.6 OUT_x1.6 | AudioJack_PJ301M-12 | J41 |
| 1 | OUT_X2 OUT_x2 | AudioJack_PJ301M-12 | J42 |
| 4 | B10K | Potentiometer_RV09 | RV1, RV2, RV3, RV4 |
| 8 | SW_SPDT | ToggleSwitch_2MS1-T2-B4-M2-Q-E-S | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 |
| 2 | 1N5819WS | D_SOD-323 | D1, D2 |
| 12 | LED_Dual_Bidirectional | LED_D3.0mm | D3, D4, D5, D6, D7, D8, D9, D10 +4 |
| 10 | 1N4148WS | D_SOD-323 | D11, D12, D13, D14, D15, D16, D17, D18 +2 |
| 2 | 22UF 22uF | C_0805_2012Metric | C1, C6 |
| 30 | 100NF 100nF | C_0603_1608Metric | C2, C3, C4, C5, C7, C8, C9, C10 +22 |
| 4 | 22P 22p | C_0402_1005Metric | C33, C34, C35, C36 |
| 3 | 10P 10p | C_0402_1005Metric | C37, C38, C46 |
| 1 | 22PF 22pF | C_0603_1608Metric | C39 |
| 1 | 0.1UF/16V 0.1uF/16V | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C40 |
| 2 | 10U 10u | CP_EIA-3216-18_Kemet-A | C41, C42 |
| 1 | 0.01UF/16V 0.01uF/16V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C43 |
| 1 | 10N 10n | C_Rect_L7.2mm_W2.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C44 |
| 1 | 100P 100p | C_0402_1005Metric | C45 |
| 1 | 1K | R_0603_1608Metric | R1 |
| 3 | 100K | R_0603_1608Metric | R2, R5, R6 |
| 2 | 200K | R_0603_1608Metric | R3, R91 |
| 2 | 10K | R_0603_1608Metric | R4, R7 |
| 59 | 100K | R_0402_1005Metric | R8, R9, R10, R11, R14, R15, R16, R17 +51 |
| 16 | 1K | R_0402_1005Metric | R12, R13, R22, R23, R32, R33, R42, R43 +8 |
| 19 | 100R | R_0402_1005Metric | R45, R48, R53, R54, R63, R64, R68, R74 +11 |
| 1 | 10M | R_0402_1005Metric | R47 |
| 1 | 33K | R_0402_1005Metric | R49 |
| 6 | 200K | R_0402_1005Metric | R66, R67, R71, R72, R77, R78 |
| 4 | 220K | R_0402_1005Metric | R80, R82, R83, R85 |
| 5 | 1M | R_0402_1005Metric | R86, R87, R98, R99, R100 |
| 1 | 470K | R_0402_1005Metric | R89 |
| 1 | 4.7K | R_0402_1005Metric | R90 |
| 1 | 2.2K | R_0603_1608Metric | R94 |
| 1 | 2K | R_0603_1608Metric | R95 |
| 2 | 10K | R_0402_1005Metric | R101, R105 |
| 1 | 150K | R_0402_1005Metric | R120 |
| 2 | 120K | R_0402_1005Metric | R122, R124 |
| 1 | 75K | R_0402_1005Metric | R125 |
| 1 | 49.9K | R_0402_1005Metric | R128 |
