Lipo-Charger and-3.3v-Regulator

stuenkels·Lipo-Charger-and-3.3v-Regulator·Lipo Charger KiCad Files/LipoCharger.kicad_pcb

Lipo-Charger and-3.3v-Regulator PCB layout, top view — open source board by stuenkels

About the Lipo-Charger and-3.3v-Regulator PCB

Lipo-Charger and-3.3v-Regulator is an open source PCB design by stuenkels, published on GitHub. It is a 2-layer board measuring 14.1 × 33.3 mm, with 21 components from 15 distinct parts.

Other key parts include the TP4056, DW01-A, FS8205A and TPS63001. By type, the board carries 6 resistors, 5 capacitors, 4 ICs, 3 connectors, 2 diodes and 1 inductor.

It belongs with the power & battery designs in this gallery.

From the project

Simple Lipo Charger based off the TP4056 IC

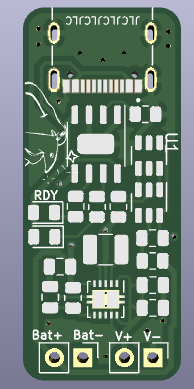

Lipo-Charger and-3.3v-Regulator, from the project README
From the project README

Main components on the Lipo-Charger and-3.3v-Regulator

TP4056DW01-AFS8205ATPS63001

Lipo-Charger and-3.3v-Regulator bill of materials (BOM)

21 components, 15 distinct parts.

QtyPartRefs
1
TP4056
U1
1
DW01-A
U2
1
FS8205A
U3
1
TPS63001
U4
2
Conn_01x02
J1, J3
1
TYPE-C-31-M-12
J2
1
Green
D1
1
Red
D2
1
2.2uh
L1
1
0.1uf
C1
3
10uf
C2, C3, C4
1
C_Small
C5
4
1k
R1, R3, R6, R7
1
470
R8
1
100
R10

Lipo-Charger and-3.3v-Regulator design files

The KiCad project lives in the stuenkels/Lipo-Charger-and-3.3v-Regulator repository on GitHub; these links point at the commit this page was built from.

Lipo-Charger and-3.3v-Regulator: common questions

How big is the Lipo-Charger and-3.3v-Regulator PCB?

The Lipo-Charger and-3.3v-Regulator measures 14.1 × 33.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lipo-Charger and-3.3v-Regulator?

21 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lipo-Charger and-3.3v-Regulator design files?

From the stuenkels/Lipo-Charger-and-3.3v-Regulator repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Lipo-Charger and-3.3v-Regulator design in my own project?

The repository has no license, so all rights stay with stuenkels. Use it as a reference, and ask the author before reusing the design.
