VAMP PCB layout, top view — open source board by syntonos

About the VAMP PCB

VAMP is an open source PCB design by syntonos, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 217.9 × 60 mm, with 88 components from 37 distinct parts.

Other key parts include the Daisy_Seed3, ER_OLEDM0.91_1x-I2C, YV13S-L7.85-B10Ka(60)-0-DL01, OPA1652AIDR and TPA6110A2DGN. By type, the board carries 27 resistors, 23 capacitors, 20 switches, 9 ICs, 2 microphones and 1 module.

It belongs with the audio and displays & leds designs in this gallery.

From the project

An experimental, intuitive sampler synth, based with Daisy Seed 3.

An experimental, intuitive sampler synth, based with Daisy Seed 3. Pocket sized and equipped with an onboard sampling mic.

VAMP by syntonos is a play on both of those definitions. Take the lifeblood of a sound, then build a creature of your own with it. Built for field sampling and on-the-go chord construction, with an onboard microphone and headphone port.

At its most basic, I'd like it to be able to take a sample and pitch shift it to match each of the octave's keys + modulation with sampling and playback with the knobs & joystick (time dilation, pitch, reverb, distortion, sampling…

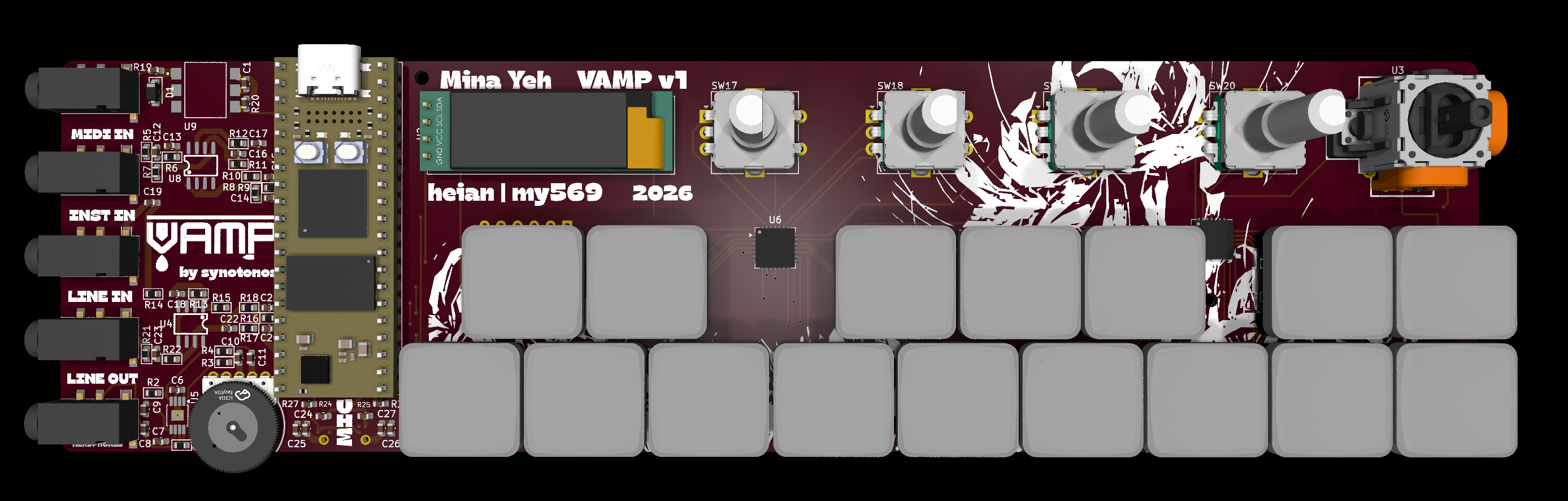

VAMP, from the project README
From the project README

Main components on the VAMP

Daisy_Seed3ER_OLEDM0.91_1x-I2CYV13S-L7.85-B10Ka(60)-0-DL01OPA1652AIDRTPA6110A2DGNMCP23S17x-x-MLH11L1SD_Card_Module

VAMP bill of materials (BOM)

88 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Daisy_Seed3
U1
1
ER_OLEDM0.91_1x-I2C
U2
1
YV13S-L7.85-B10Ka(60)-0-DL01
YV13S-L7.85-B10KA
YTL(亚特联)
U3
2
OPA1652AIDR
TI(德州仪器)
U4, U8
1
TPA6110A2DGN
U5
2
MCP23S17x-x-ML
U6, U7
1
H11L1
U9
1
SD_Card_Module
A1
5
AudioJack4
HEADOUT1, INSTIN1, LINEIN1, LINEOUT1, MIDIIN1
2
Mic_MEMS_Digital_SPH0645LM4H
MK1, MK2
16
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +8
4
RotaryEncoder_Switch
SW17, SW18, SW19, SW20
1
1N4148
D1
4
0.1uF
C1, C7, C24, C27
1
1uF
C6
2
100uF
C8, C9
4
470pF
C10, C11, C21, C22
5
10uF
C12, C15, C19, C20, C23
1
100pF
C13
1
1nF
C14
Show 17 more
QtyPartRefs
2
330pF
C16, C18
1
33nF
C17
2
200pF
C25, C26
2
33k
R1, R2
2
22k
R3, R4
6
10k
R5, R10, R11, R13, R16, R21
3
100
R6, R12, R22
1
1M
R7
1
3.3k
R8
1
4.7k
R9
2
20k
R14, R18
1
1k
R15
1
750
R17
1
220R
R19
1
270
R20
1
RK10J12E002L
ALPSALPINE(阿尔卑斯阿尔派)
R23
4
51
R24, R25, R26, R27

VAMP design files

The KiCad project lives in the syntonos/VAMP repository on GitHub; these links point at the commit this page was built from.

VAMP: common questions

How big is the VAMP PCB?

The VAMP measures 217.9 × 60 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the VAMP?

88 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the VAMP design files?

From the syntonos/VAMP repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the VAMP design in my own project?

Yes, under the terms of its GPL-3.0 license, which syntonos chose for the repository.
