Fakedeck gerber

syuchan1005·Fakedeck·assets/Plus/kicad/Fakedeck-gerber.kicad_pcb

Fakedeck gerber PCB layout, top view — open source RP2040/RP2350 board by syuchan1005
Simulate this board

About the Fakedeck gerber PCB

Fakedeck gerber is an open source RP2040/RP2350 PCB design by syuchan1005, published on GitHub. It is a 2-layer board measuring 88 × 102 mm, with 9 components from 5 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the ATtiny2313-20P. By type, the board carries 4 switches, 2 ICs and 2 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

Using raspberry pi pico as a stream deck

This project access WiFi AP. You should copy config.sample.ini to config.ini, and change values to your Wifi settings.

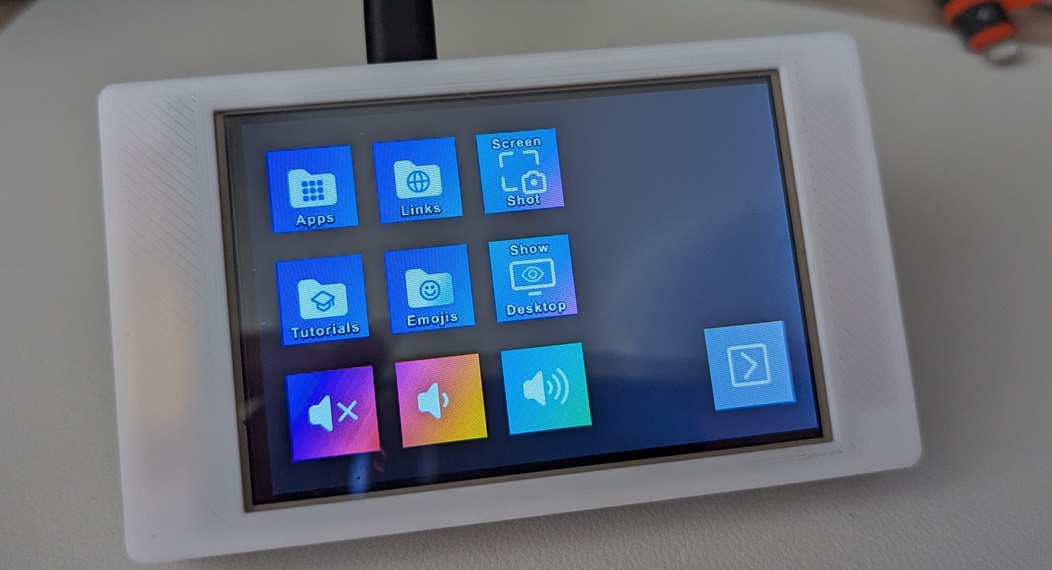

Fakedeck gerber, from the project README
From the project README

Main components on the Fakedeck gerber

PicoATtiny2313-20P

Fakedeck gerber bill of materials (BOM)

9 components, 5 distinct parts.

QtyPartRefs
1
Pico
U1
1
ATtiny2313-20P
U2
2
Conn_01x06_Pin
J1, J2
4
RotaryEncoder_Switch
SW1, SW2, SW3, SW4
1
JC8048M050R
TFT1

Fakedeck gerber design files

The KiCad project lives in the syuchan1005/Fakedeck repository on GitHub; these links point at the commit this page was built from.

Fakedeck gerber: common questions

What microcontroller does the Fakedeck gerber use?

The Fakedeck gerber is built around the Pico, from the RP2040/RP2350 family.

How big is the Fakedeck gerber PCB?

The Fakedeck gerber measures 88 × 102 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fakedeck gerber?

9 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Fakedeck gerber design files?

From the syuchan1005/Fakedeck repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Fakedeck gerber design in my own project?

The repository has no license, so all rights stay with syuchan1005. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Fakedeck gerber without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
