E-ink screen

TDA-2030·E-ink-screen·hardware/epaper.kicad_pcb

E-ink screen PCB layout, top view — open source ESP32 board by TDA-2030

About the E-ink screen PCB

E-ink screen is an open source ESP32 PCB design by TDA-2030, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 65 × 30 mm, with 55 components from 29 distinct parts.

Its main chip is the ESP32-WROOM-32D, from the ESP32 family. Other key parts include the AMS1117-3.3, LTC4054ES5-4.2, TC8002D and CP2102N-A01-GQFN28. By type, the board carries 20 resistors, 15 capacitors, 6 connectors, 5 ICs, 4 transistors and 4 diodes.

It belongs with the displays & leds and power & battery designs in this gallery.

From the project

An assistant to help you view text and picture calendars

An assistant to help you view text and picture calendars. It is mainly composed of a 2.13 inch eink(epaper) and an esp32 module.

ESP32 of espressif is used as the controller, and development environment is esp-idf v4.0.

ESP-IDF Programming Guide will teach you to install the development environment step by step.

Here you can configure the project. For example, you can change the GPIO of the screen by entering component config → Eink setting .

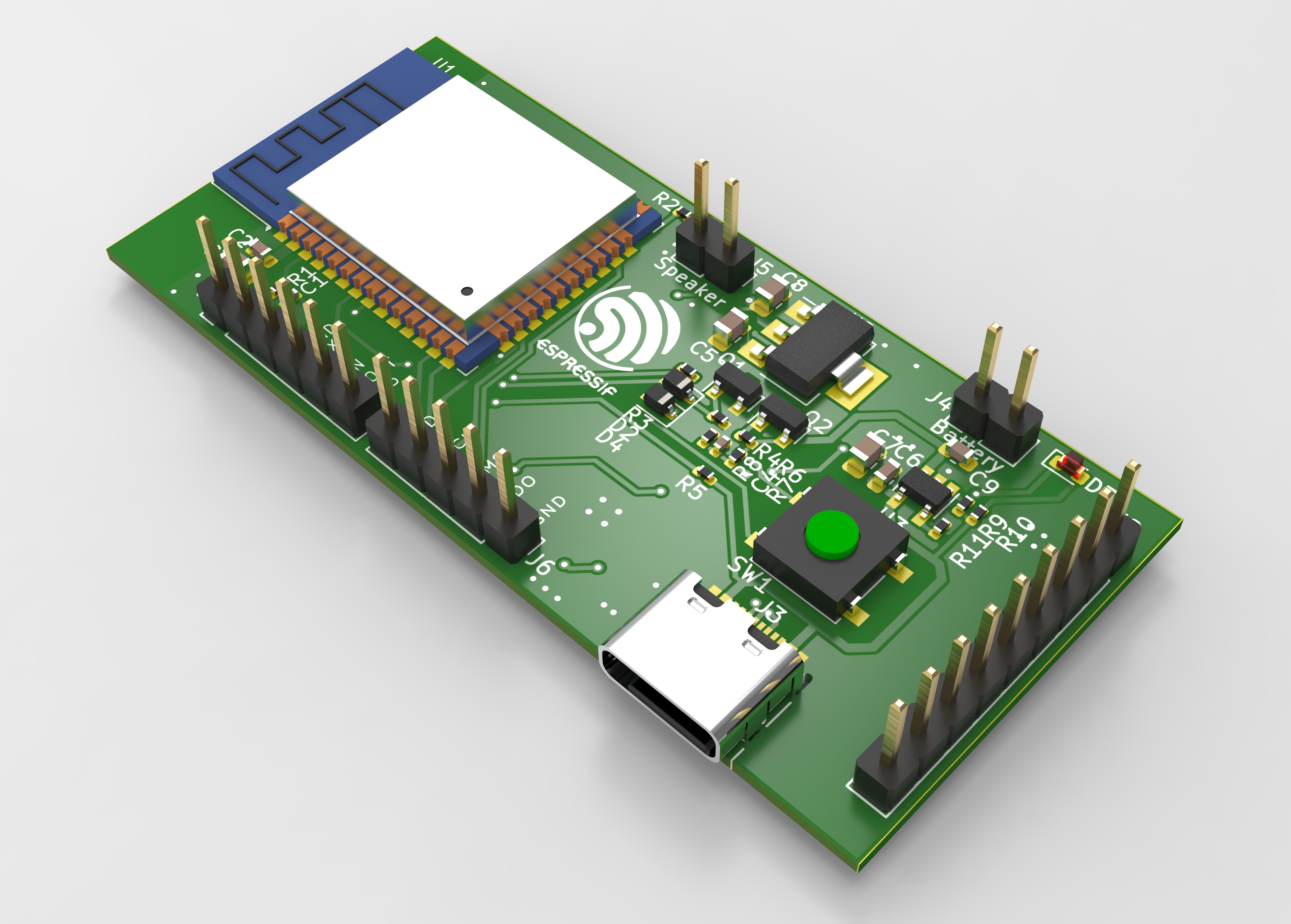

E-ink screen, from the project README
From the project README

Main components on the E-ink screen

ESP32-WROOM-32DAMS1117-3.3LTC4054ES5-4.2TC8002DCP2102N-A01-GQFN28

E-ink screen bill of materials (BOM)

55 components, 29 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32D
U1
1
AMS1117-3.3
U2
1
LTC4054ES5-4.2
U3
1
TC8002D
U4
1
CP2102N-A01-GQFN28
U5
1
DMG3404L
Q1
1
AO3401A
Q2
2
S8050
Q3, Q4
1
download
J1
1
epaper
J2
1
USB_C_Receptacle_USB2.0
J3
1
BATT
J4
1
Speaker
J5
1
JTAG
J6
1
SW_Push
SW1
1
LED_BLUE
D1
2
1N4148WS
D2, D4
1
LED_RED
D3
3
0.1uf
C1, C4, C15
4
1uf
C2, C6, C9, C14
Show 9 more
QtyPartRefs
4
10uf
C3, C5, C7, C8
3
0.39uf
C10, C11, C12
1
1uf
C13
9
10K
R1, R4, R6, R7, R8, R9, R16, R17 +1
3
4.7K
R2, R3, R5
1
1K
R10
1
1.5K
R11
4
20k
R12, R13, R14, R15
2
22
R19, R20

E-ink screen design files

The KiCad project lives in the TDA-2030/E-ink-screen repository on GitHub; these links point at the commit this page was built from.

E-ink screen: common questions

What microcontroller does the E-ink screen use?

The E-ink screen is built around the ESP32-WROOM-32D, from the ESP32 family.

How big is the E-ink screen PCB?

The E-ink screen measures 65 × 30 mm, has 2 copper layers and is 1 mm thick.

How many components are on the E-ink screen?

55 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the E-ink screen design files?

From the TDA-2030/E-ink-screen repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the E-ink screen design in my own project?

Yes, under the terms of its Apache-2.0 license, which TDA-2030 chose for the repository.

Can I test firmware for the E-ink screen without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
