Amiga Drawbridge BA1

tebl·Amiga-DrawBridge·faceplates/Amiga Drawbridge BA1/Amiga Drawbridge BA1.kicad_pcb

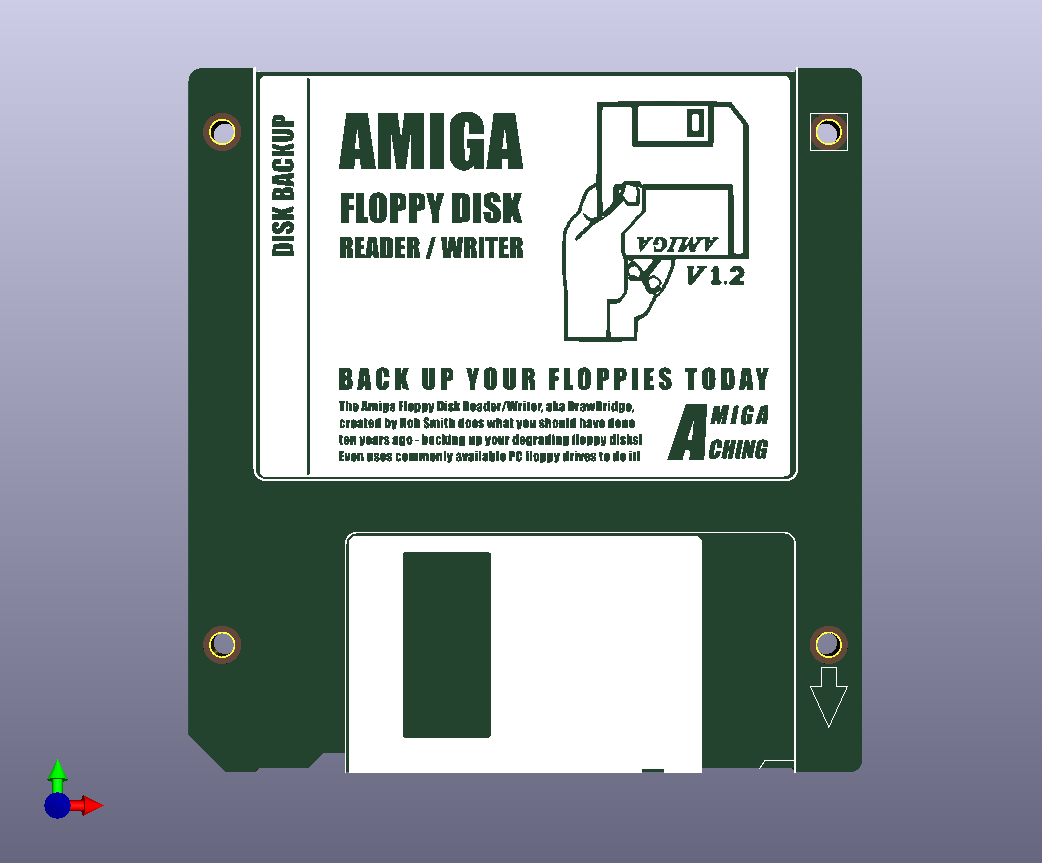

Amiga Drawbridge BA1 PCB layout, top view — open source board by tebl

About the Amiga Drawbridge BA1 PCB

Amiga Drawbridge BA1 is an open source PCB design by tebl, published on GitHub. It is a 2-layer board measuring 90 × 94 mm, with 4 components from 1 distinct parts.

It belongs with the retro computing designs in this gallery.

From the project

A PCB build of Rob Smiths Amiga DrawBridge, an Arduino-based solution for reading and writing Amiga floppy disks on modern hardware. Also includes a version of Greaseweazle.

Amiga Drawbridge BA1, from the project README
From the project README

Amiga Drawbridge BA1 bill of materials (BOM)

4 components, 1 distinct parts.

QtyPartRefs
4
Mounting
M1, M2, M3, M4

Amiga Drawbridge BA1 design files

The KiCad project lives in the tebl/Amiga-DrawBridge repository on GitHub; these links point at the commit this page was built from.

Amiga Drawbridge BA1: common questions

How big is the Amiga Drawbridge BA1 PCB?

The Amiga Drawbridge BA1 measures 90 × 94 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amiga Drawbridge BA1?

4 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amiga Drawbridge BA1 design files?

From the tebl/Amiga-DrawBridge repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Amiga Drawbridge BA1 design in my own project?

The repository has no license, so all rights stay with tebl. Use it as a reference, and ask the author before reusing the design.
