Amiga Drawbridge

tebl·Amiga-DrawBridge·Amiga Drawbridge/Amiga Drawbridge.kicad_pcb

Amiga Drawbridge PCB layout, top view — open source AVR/Arduino board by tebl
Simulate this board

About the Amiga Drawbridge PCB

Amiga Drawbridge is an open source AVR/Arduino PCB design by tebl, published on GitHub. It is a 2-layer board measuring 90 × 94 mm, with 18 components from 14 distinct parts.

Its main chip is the Arduino_Pro_Mini, from the AVR/Arduino family. Other key parts include the FT232RL. By type, the board carries 6 modules, 4 connectors, 3 jumpers, 3 resistors and 2 diodes.

It belongs with the retro computing and usb & debug tools designs in this gallery.

From the project

A PCB build of Rob Smiths Amiga DrawBridge, an Arduino-based solution for reading and writing Amiga floppy disks on modern hardware. Also includes a version of Greaseweazle.

- 1> Building the device - 1.1> Soldering it together - 1.2> Power considerations - 1.3> Modifying FTDI-adapter - 1.4> Install Arduino Pro Mini - 1.5> Let there be light - 1.6> Finishing touches - 2> Schematic - 3> BOM

With the equipment sorted, now comes the shopping - so head on over to the BOM-section for some information on what kind of components that you'll need. Note that with sites such as ebay, AliExpress and similar sites that sell cheap chinese components, you'll need to treat these as a suggested search term and look for something that matches the gallery pictures.

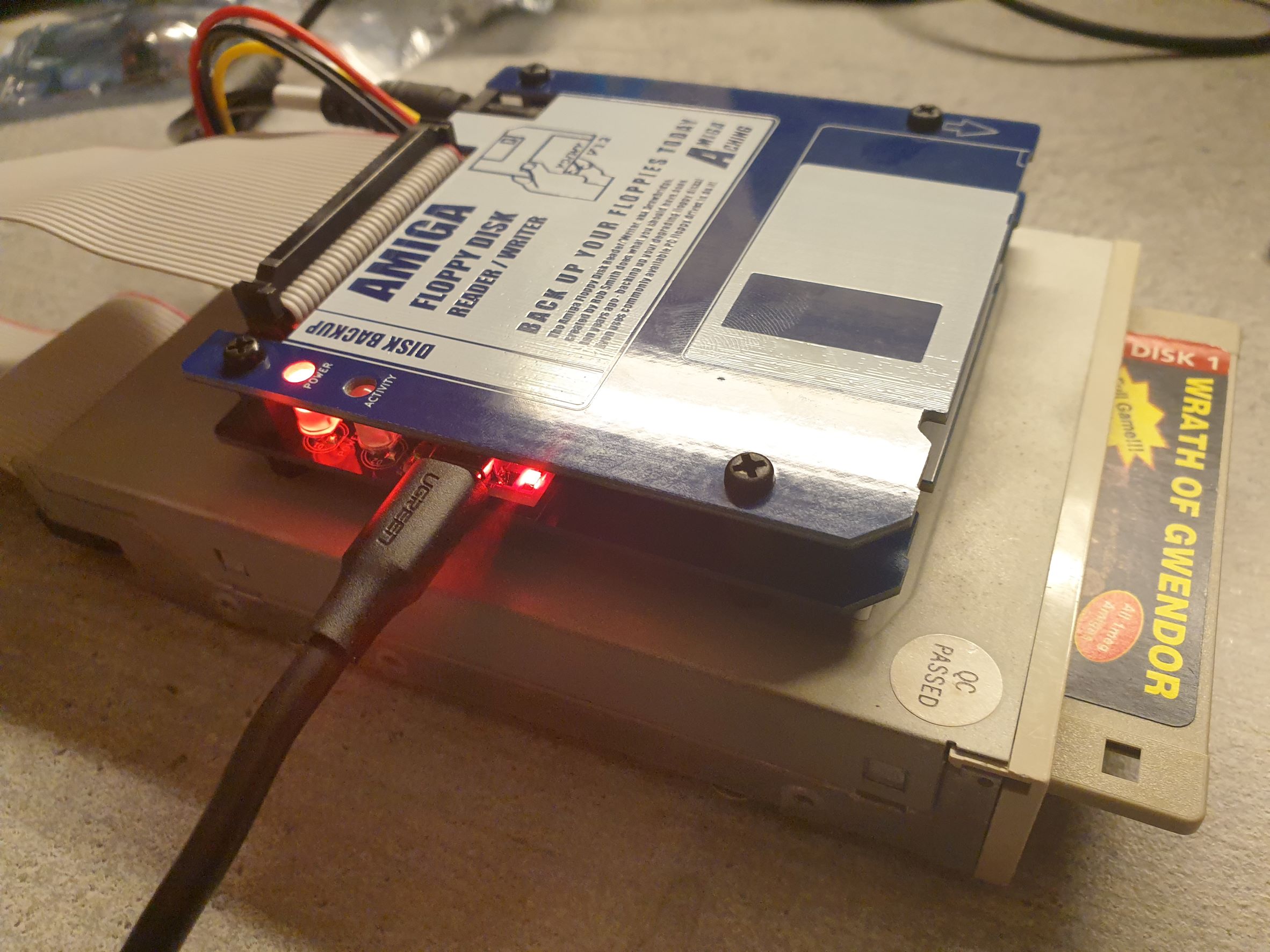

Amiga Drawbridge, from the project README
From the project README

Main components on the Amiga Drawbridge

Arduino_Pro_MiniFT232RL

Amiga Drawbridge bill of materials (BOM)

18 components, 14 distinct parts.

QtyPartRefs
1
Arduino_Pro_Mini
A1
1
FT232RL
A2
4
Mounting
M1, M2, M3, M4
1
FDC
J1
1
PWR_IN1
J2
1
PWR_DRV
J3
1
PWR_IN2
J4
1
ARD_TYPE
JP1
1
PWR_SEL
JP2
1
VER_SEL
JP3
1
LED_PWR
D1
1
LED_ACT
D2
1
1k
R1
2
330*
R2, R3

Amiga Drawbridge design files

The KiCad project lives in the tebl/Amiga-DrawBridge repository on GitHub; these links point at the commit this page was built from.

Amiga Drawbridge: common questions

What microcontroller does the Amiga Drawbridge use?

The Amiga Drawbridge is built around the Arduino_Pro_Mini, from the AVR/Arduino family.

How big is the Amiga Drawbridge PCB?

The Amiga Drawbridge measures 90 × 94 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amiga Drawbridge?

18 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amiga Drawbridge design files?

From the tebl/Amiga-DrawBridge repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Amiga Drawbridge design in my own project?

The repository has no license, so all rights stay with tebl. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Amiga Drawbridge without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
