Greaseweazle FA1 PCB layout, top view — open source board by tebl

About the Greaseweazle FA1 PCB

Greaseweazle FA1 is an open source PCB design by tebl, published on GitHub. It is a 2-layer board measuring 90 × 94 mm, with 4 components from 1 distinct parts.

It belongs with the retro computing designs in this gallery.

From the project

A PCB build of Rob Smiths Amiga DrawBridge, an Arduino-based solution for reading and writing Amiga floppy disks on modern hardware. Also includes a version of Greaseweazle.

Note that as the faceplate will sit a bit higher up on the standoffs, the LEDs will need to be soldered around a millimeter above the board - the recommended way of installing them is to insert them into the footprint (longer pin in the round hole), install the faceplate and then solder the LEDs into place with the LED flush against the faceplate.

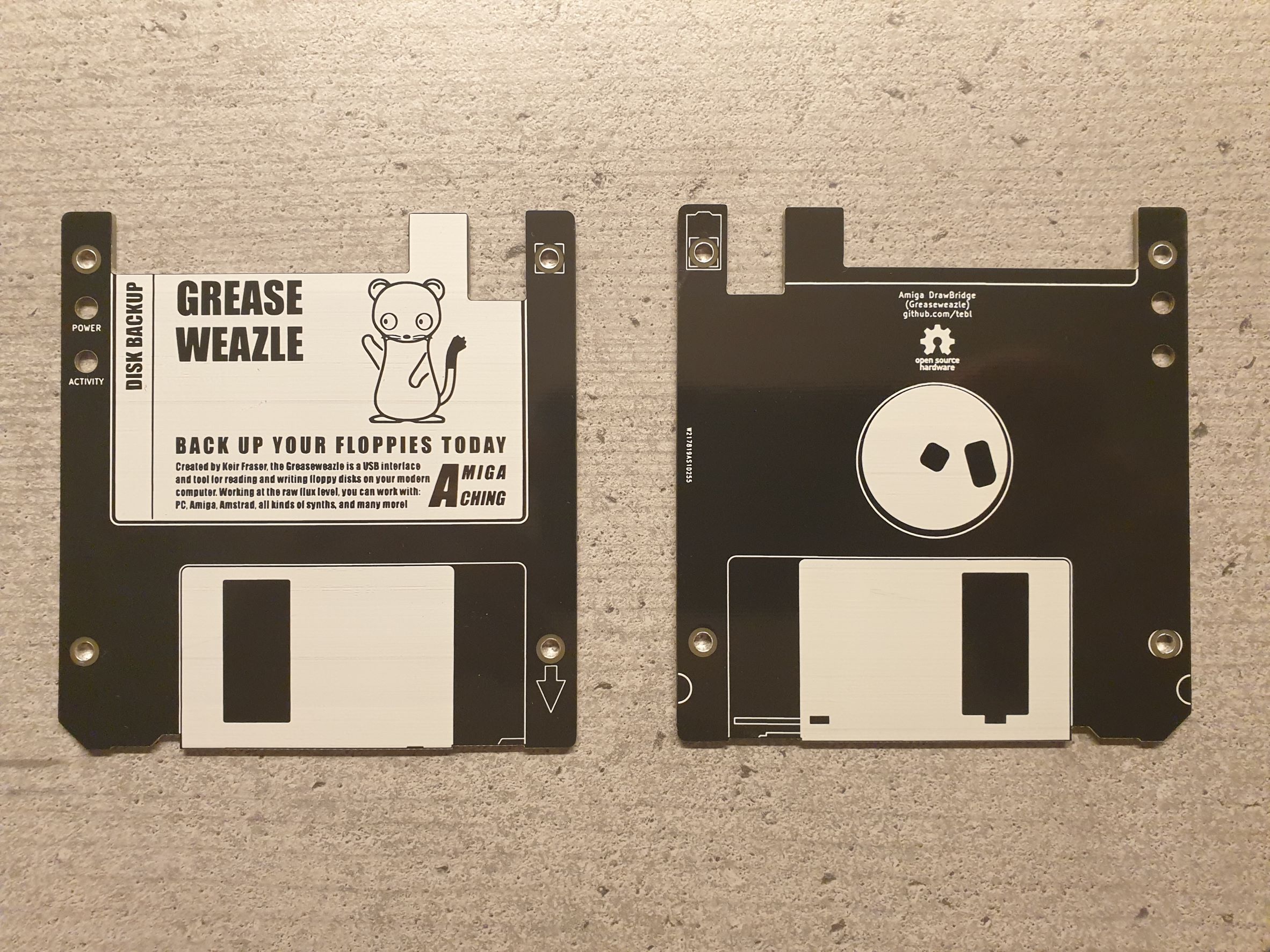

Greaseweazle FA1, from the project README
From the project README

Greaseweazle FA1 bill of materials (BOM)

4 components, 1 distinct parts.
