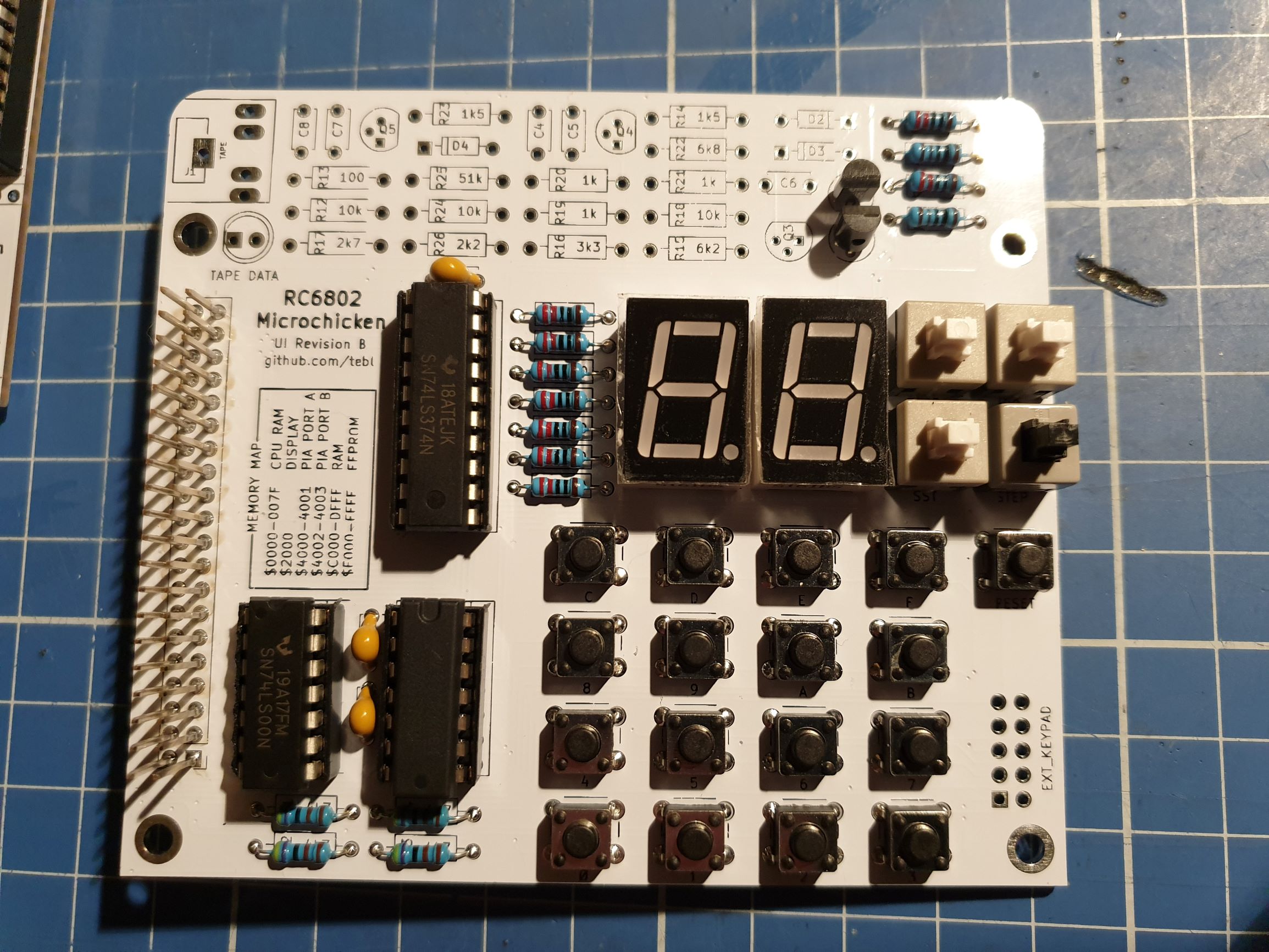

About the RC6802 UI PCB
RC6802 UI is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 99.1 × 86.4 mm, with 80 components from 50 distinct parts.
Other key parts include the 74LS374, 74LS00 and 74LS73. By type, the board carries 30 resistors, 21 switches, 8 capacitors, 5 transistors, 4 modules and 4 diodes.
It belongs with the retro computing designs in this gallery.
From the project
Computer based on the Motorola 6802 processor, called RC6802 Microchicken as it's an adaption of the one found in a computer projects book by Daniel Metzger.
One of my most enjoyable reads the past year has been "22 micro-computer projects - to build, learn and learn" by Daniel L. Metzger, the Microchicken-computer is described in detail within it and so I sought to build one myself. The computer has been designed as a set of smaller modules, for an overall description a listing of the available modules - see the main project README!

Main components on the RC6802 UI
RC6802 UI bill of materials (BOM)
80 components, 50 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS374 | DIP-20_W7.62mm_Socket | U1 |
| 1 | 74LS00 | DIP-14_W7.62mm_Socket | U2 |
| 1 | 74LS73 | DIP-14_W7.62mm_Socket | U3 |
| 4 | Mounting | 1pin | M1, M2, M3, M4 |
| 2 | 2N3906 | TO-92_Molded_Narrow | Q1, Q2 |
| 3 | 2N3904 | TO-92_Molded_Narrow | Q3, Q4, Q5 |
| 1 | TAPE | Tayda_3.5mm_stereo_TRS_jack_A-853 | J1 |
| 1 | RC6802_UI_Port | Pin_Header_Straight_2x20_Pitch2.54mm | J2 |
| 1 | EXT_KEYPAD | Pin_Header_Angled_2x05_Pitch2.54mm | J3 |
| 1 | RESET | SW_PUSH_6mm | SW1 |
| 1 | ~IRQ | dpdt_switch | SW2 |
| 1 | Ø | SW_PUSH_6mm | SW3 |
| 1 | 4 | SW_PUSH_6mm | SW4 |
| 1 | 8 | SW_PUSH_6mm | SW5 |
| 1 | C | SW_PUSH_6mm | SW6 |
| 1 | 1 | SW_PUSH_6mm | SW7 |
| 1 | 5 | SW_PUSH_6mm | SW8 |
| 1 | 9 | SW_PUSH_6mm | SW9 |
| 1 | D | SW_PUSH_6mm | SW10 |
| 1 | 2 | SW_PUSH_6mm | SW11 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 6 | SW_PUSH_6mm | SW12 |
| 1 | A | SW_PUSH_6mm | SW13 |
| 1 | E | SW_PUSH_6mm | SW14 |
| 1 | 3 | SW_PUSH_6mm | SW15 |
| 1 | 7 | SW_PUSH_6mm | SW16 |
| 1 | B | SW_PUSH_6mm | SW17 |
| 1 | F | SW_PUSH_6mm | SW18 |
| 1 | TAPE | dpdt_switch | SW19 |
| 1 | STEP | dpdt_switch | SW20 |
| 1 | SST | dpdt_switch | SW21 |
| 1 | RIGHT | 7SegmentLED_LTS6760_LTS6780 | AFF1 |
| 1 | LEFT | 7SegmentLED_LTS6760_LTS6780 | AFF2 |
| 1 | DATA_IN | LED_D5.0mm | D1 |
| 3 | 1n914 | D_DO-35_SOD27_P7.62mm_Horizontal | D2, D3, D4 |
| 4 | 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2, C3, C8 |
| 2 | 50nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C4, C6 |
| 1 | 68nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C5 |
| 1 | 500nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C7 |
| 4 | 4k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4 |
| 9 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6, R7, R8, R9, R10, R11, R27 +1 |
| 3 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R12, R18, R24 |
| 1 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R13 |
| 2 | 1k5 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R14, R23 |
| 1 | 6k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R15 |
| 1 | 3k3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R16 |
| 1 | 2k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R17 |
| 5 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R19, R20, R21, R28, R30 |
| 1 | 6k8 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R22 |
| 1 | 51k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R25 |
| 1 | 2k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R26 |
RC6802 UI design files
The KiCad project lives in the tebl/RC6802-Microchicken repository on GitHub; these links point at the commit this page was built from.
RC6802 UI: common questions
How big is the RC6802 UI PCB?
The RC6802 UI measures 99.1 × 86.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RC6802 UI?
80 components, from 50 distinct parts. The full bill of materials is listed on this page.
Where can I download the RC6802 UI design files?
From the tebl/RC6802-Microchicken repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the RC6802 UI design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
