Hackbat esp32

thehackbat·hackbat_esp32·kicad/hackbat.kicad_pcb

Hackbat esp32 PCB layout, top view — open source ESP32 board by thehackbat
Simulate this board

About the Hackbat esp32 PCB

Hackbat esp32 is an open source ESP32 PCB design by thehackbat, published on GitHub. It is a 2-layer board measuring 100 × 40 mm, with 59 components from 31 distinct parts.

Its main chip is the ESP32-C6-WROOM-1, from the ESP32 family. Other key parts include the C29953, DM-OLED096-636 and AMS1117-3.3. By type, the board carries 23 resistors, 12 capacitors, 6 switches, 4 ICs, 4 inductors and 3 connectors.

It belongs with the rf & radio and iot & wireless designs in this gallery.

From the project

Hackbat version based on the ESP32C6

New version of the Hackbat tool, this time based on the ESP32 C6.

The new version of hackbat features a powerful ESP32C6 from Espressif. This microcontroller features a dual core RISC-V processor, WIFI6, BT LE and a bunch of peripherals.

The package used is the WROOM-1, but it is also compatible with the 1U model adding an external antenna.

Like the original, the Hackbat ESP32 features an RF tranceiver, the CC1101 from Texas Instruments.

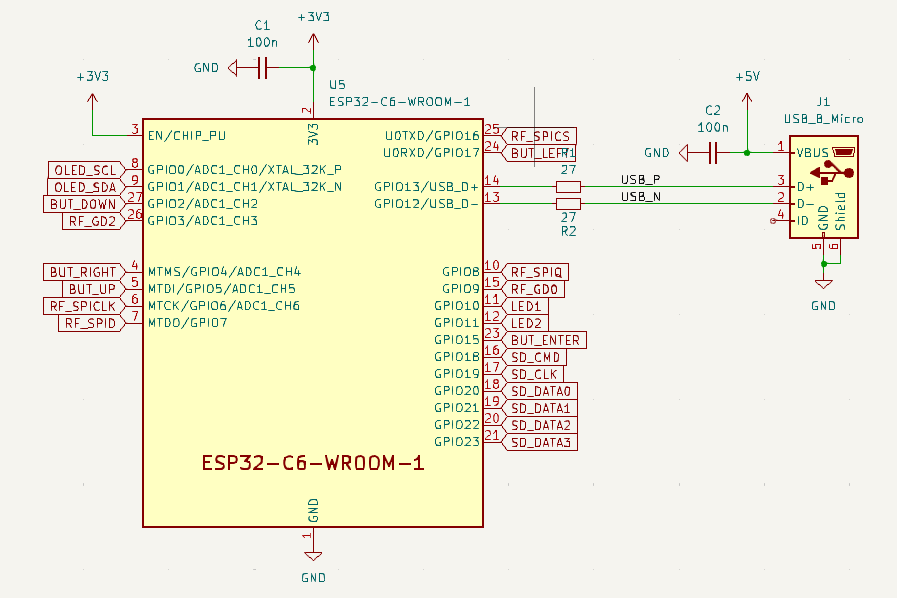

Hackbat esp32, from the project README
From the project README

Main components on the Hackbat esp32

C29953DM-OLED096-636AMS1117-3.3ESP32-C6-WROOM-1

Hackbat esp32 bill of materials (BOM)

59 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C29953
CC1101
U2
1
DM-OLED096-636
U3
1
AMS1117-3.3
U4
1
ESP32-C6-WROOM-1
U5
1
C254353
27MHz
Y1
1
USB_B_Micro
J1
1
Conn_Coaxial
J2
1
C114218
Micro_SD_Card_Det_Hirose_DM3AT
J3
1
Antenna
AE1
1
Battery
BT1
1
JUMPER_2_OPEN
Jumper_2_Open
JP1
5
C455109
SW_Push
SW1, SW2, SW3, SW4, SW5
1
C92658
SW_SPST
SW6
2
LED
D1, D2
1
C82544
D_Schottky
D3
2
27NH
27nH
L1, L2
1
22N
22n
L3
1
27N
27n
L4
2
100N
100n
C1, C2
1
100N
100n
C3
Show 11 more
QtyPartRefs
2
220P
220p
C4, C11
2
3.9P
3.9p
C5, C6
1
8.2P
8.2p
C7
2
27P
27p
C8, C9
1
5.6P
5.6p
C10
1
1u
C12
2
27
R1, R2
10
4K7
4k7
R3, R4, R5, R6, R7, R8, R9, R15 +2
1
56K
56k
R10
4
0
R11, R12, R13, R14
6
10K
10k
R17, R18, R20, R21, R22, R23

Hackbat esp32 design files

The KiCad project lives in the thehackbat/hackbat_esp32 repository on GitHub; these links point at the commit this page was built from.

Hackbat esp32: common questions

What microcontroller does the Hackbat esp32 use?

The Hackbat esp32 is built around the ESP32-C6-WROOM-1, from the ESP32 family.

How big is the Hackbat esp32 PCB?

The Hackbat esp32 measures 100 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackbat esp32?

59 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackbat esp32 design files?

From the thehackbat/hackbat_esp32 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackbat esp32 design in my own project?

The repository has no license, so all rights stay with thehackbat. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hackbat esp32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
