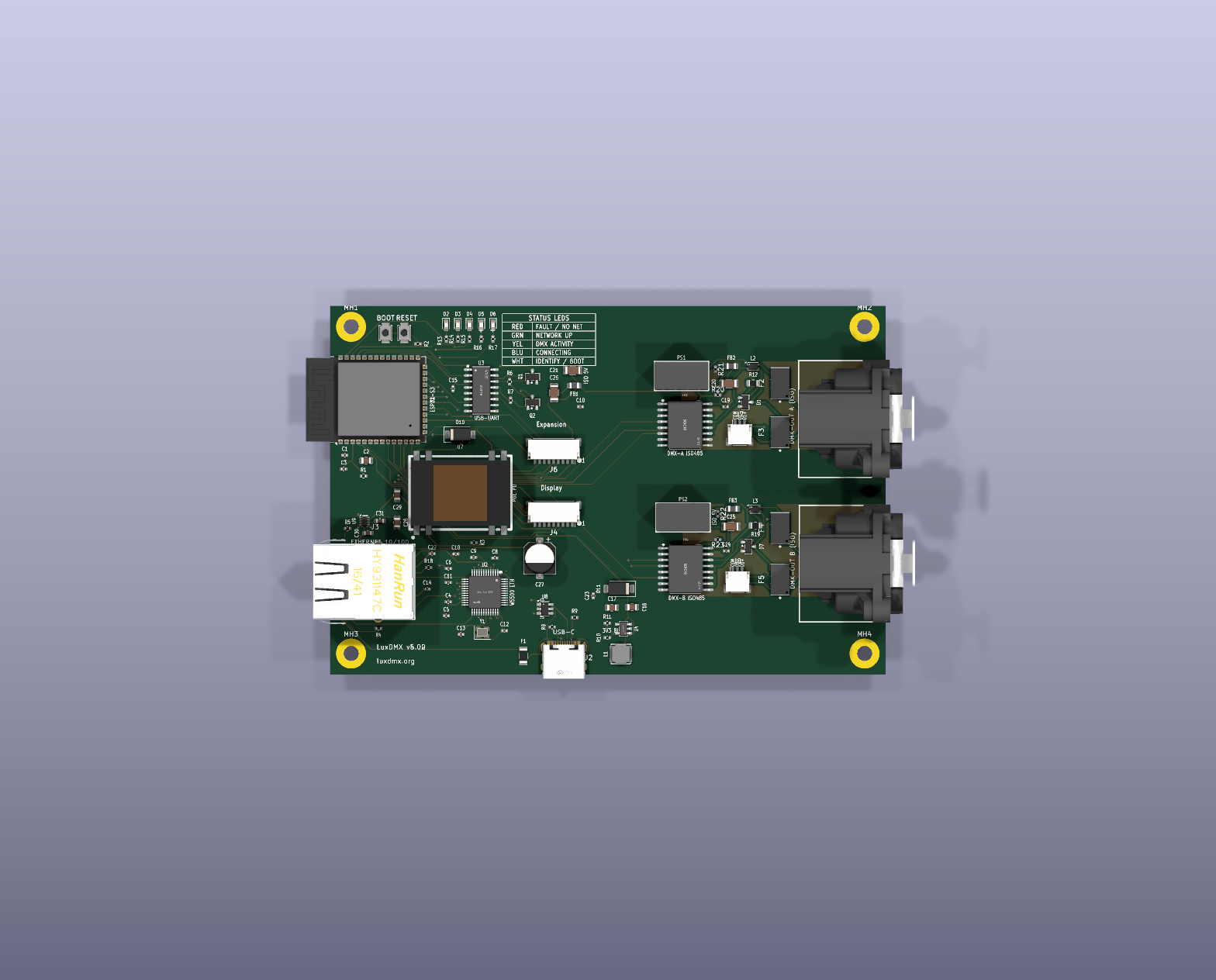

About the LuxDMX PCB
LuxDMX is an open source ESP32 PCB design by tombueng, published on GitHub. It is a 4-layer board measuring 119 × 79 mm, with 93 components from 51 distinct parts.
Its main chip is the C2913204, from the ESP32 family. Other key parts include the C32843, C78988, C183095, C5380106 and C7519. By type, the board carries 29 capacitors, 23 resistors, 9 diodes, 8 ICs, 8 connectors and 6 inductors.
It belongs with the iot & wireless designs in this gallery.
From the project
Open-source Art-Net / sACN (E1.31) → DMX512 gateway for ESP32 / ESP32-S3 / Ethernet. Live web UI shows all 512 channels in real time, flags console conflicts, and drives galvanically-isolated DMX. Flash from your browser, no toolchain.
A compact, open-source Art-Net / sACN → galvanically-isolated DMX512 gateway, built around an ESP32-S3 with both WiFi and wired Ethernet. Designed entirely as code (SKiDL netlist) and routed by a fully-scripted, placement-driven pipeline — so the board regenerates itself from your component placement, isolation barrier and all.
Lighting consoles and media servers speak Art-Net or sACN (E1.31) over a network. Fixtures — dimmers, moving heads, hazers, LED bars — speak DMX512 over an isolated RS-485 bus. LuxDMX sits between them: it receives Art-Net/sACN over WiFi or Ethernet and emits a clean…

Main components on the LuxDMX
LuxDMX bill of materials (BOM)
93 components, 51 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2913204 ESP32-S3-WROOM-1-N8R2 | ESP32-S3-WROOM-1 | U1 |
| 1 | C32843 W5500 | LQFP-48_L7.0-W7.0-P0.50-LS9.0-BL | U2 |
| 1 | C78988 SY8089 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U4 |
| 2 | C183095 ISO3086DWR | SOIC-16_L10.3-W7.5-P1.27-LS10.3-BL | U5, U6 |
| 1 | C5380106 DP9900M-5V | PWRM-SMD_DP9900M-5V | U7 |
| 1 | C7519 USBLC6-2SC6 | SOT-23-6 | U8 |
| 1 | C3235557 TPS2116DRLR | SOT-583-8 | U9 |
| 1 | C9006 25MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 2 | C368501 XLR-5 NC5FAH | CONN-TH_NC5FAH | J1, J5 |
| 1 | C165948 USB-C | USB-C_SMD-TYPE-C-31-M-12_1 | J2 |
| 1 | C91754 HY931147C | RJ45-TH_HY931147C | J3 |
| 1 | C160408 DISP SH9 | JST_SH_SM09B-SRSS-TB_1x09-1MP_P1.00mm_Horizontal | J4 |
| 1 | C160408 EXP SH9 | JST_SH_SM09B-SRSS-TB_1x09-1MP_P1.00mm_Horizontal | J6 |
| 1 | C160403 DMX-OUT A | JST_SH_SM03B-SRSS-TB_1x03-1MP_P1.00mm_Horizontal | J7 |
| 1 | C160403 DMX-OUT B | JST_SH_SM03B-SRSS-TB_1x03-1MP_P1.00mm_Horizontal | J8 |
| 1 | C883133 1.5A 16V PPTC | Fuse_1206_3216Metric | F1 |
| 4 | C913221 TBU 200mA 650V | DIO-SMD_3P-L6.5-W4.0-BI | F2, F3, F4, F5 |
| 2 | C7465127 B0505S-1W | PWRM-TH_B0505S-1W | PS1, PS2 |
| 1 | C231329 BOOT | SW_SPST_B3U-1000P | SW1 |
| 1 | C231329 RST | SW_SPST_B3U-1000P | SW2 |
Show 31 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | C404012 SM712 | SOT-23 | D1, D7 |
| 1 | C2286 LED | LED_0603_1608Metric | D2 |
| 1 | C12624 LED | LED_0603_1608Metric | D3 |
| 1 | C89811 LED | LED_0603_1608Metric | D4 |
| 1 | C2288 LED | LED_0603_1608Metric | D5 |
| 1 | C2290 LED | LED_0603_1608Metric | D6 |
| 1 | C110521 SMAJ60A | D_SMA | D10 |
| 1 | C151932 SMAJ5.0A | D_SMA | D11 |
| 3 | C1017 600R@100MHz | L_0805_2012Metric | FB1, FB2, FB3 |
| 1 | C354584 2.2uH | IND-SMD_L4.0-W4.0 | L1 |
| 2 | C383338 ACM2012-201-2P | L_CommonModeChoke_Coilank_ACM2012 | L2, L3 |
| 12 | C1525 100nF | C_0402_1005Metric | C1, C5, C8, C9, C10, C11, C14, C18 +4 |
| 2 | C15850 10uF | C_0805_2012Metric | C2, C28 |
| 2 | C52923 1uF | C_0402_1005Metric | C3, C4 |
| 1 | C23733 4.7uF | C_0402_1005Metric | C6 |
| 2 | C307443 18pF C0G | C_0402_1005Metric | C12, C13 |
| 3 | C45783 22uF | C_0805_2012Metric | C16, C17, C29 |
| 4 | C13585 10uF | C_1206_3216Metric | C20, C21, C25, C26 |
| 1 | C970685 100uF | CP_Elec_6.3x7.7 | C27 |
| 2 | C15849 1uF | C_0603_1608Metric | C30, C31 |
| 4 | C60490 10k | R_0402_1005Metric | R1, R2, R11, R25 |
| 1 | C25752 12.4k | R_0402_1005Metric | R3 |
| 2 | C2930002 330R | R_0402_1005Metric | R4, R5 |
| 2 | C25905 5k1 | R_0402_1005Metric | R8, R9 |
| 1 | C2933099 45.3k | R_0402_1005Metric | R10 |
| 2 | C17437 120R | R_0805_2012Metric | R12, R19 |
| 2 | C106235 1k | R_0402_1005Metric | R13, R15 |
| 3 | C2909321 150R | R_0402_1005Metric | R14, R16, R17 |
| 1 | C25120 49.9R | R_0402_1005Metric | R18 |
| 4 | C2909361 470R | R_0402_1005Metric | R20, R21, R22, R23 |
| 1 | C138008 30k | R_0402_1005Metric | R24 |
LuxDMX design files
The KiCad project lives in the tombueng/LuxDMX repository on GitHub; these links point at the commit this page was built from.
LuxDMX: common questions
What microcontroller does the LuxDMX use?
The LuxDMX is built around the C2913204, from the ESP32 family.
How big is the LuxDMX PCB?
The LuxDMX measures 119 × 79 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the LuxDMX?
93 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LuxDMX design files?
From the tombueng/LuxDMX repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LuxDMX design in my own project?
The repository has no license, so all rights stay with tombueng. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the LuxDMX without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
