SPACEDOS01

UniversalScientificTechnologies·SPACEDOS01·hw/sch_pcb/SPACEDOS01.kicad_pcb

SPACEDOS01 PCB layout, top view — open source AVR/Arduino board by UniversalScientificTechnologies

About the SPACEDOS01 PCB

SPACEDOS01 is an open source AVR/Arduino PCB design by UniversalScientificTechnologies, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 93.5 × 48.2 mm, with 79 components from 33 distinct parts.

Its main chip is the ATMEGA1284P-AU, from the AVR/Arduino family. Other key parts include the OPA2314, ISL21080DIH312Z-TK 1V25, TS7211, TS5A4594 and TPS613222ADBV. By type, the board carries 42 capacitors, 19 resistors, 8 ICs, 4 modules, 2 diodes and 2 inductors.

It belongs with the test & measurement and science & space designs in this gallery.

From the project

Silicon diode dosimeter optimized for spacecraft dosimetry

SPACEDOS01B is a semiconductor-based dosimeter launched at Sokrat-R (NORAD ID 44404) satellite, currently orbiting the Earth about 500km above the surface. The device is intended for the measurement of cosmic radiation in mixed ionization fields on board satellites. In the case of manned missions look to SPACEDOS02 or SPACEDOS03.

The device can be purchased from Universal Scientific Technologies s.r.o. Contact us by email at sale@ust.cz for a commercial quotation.

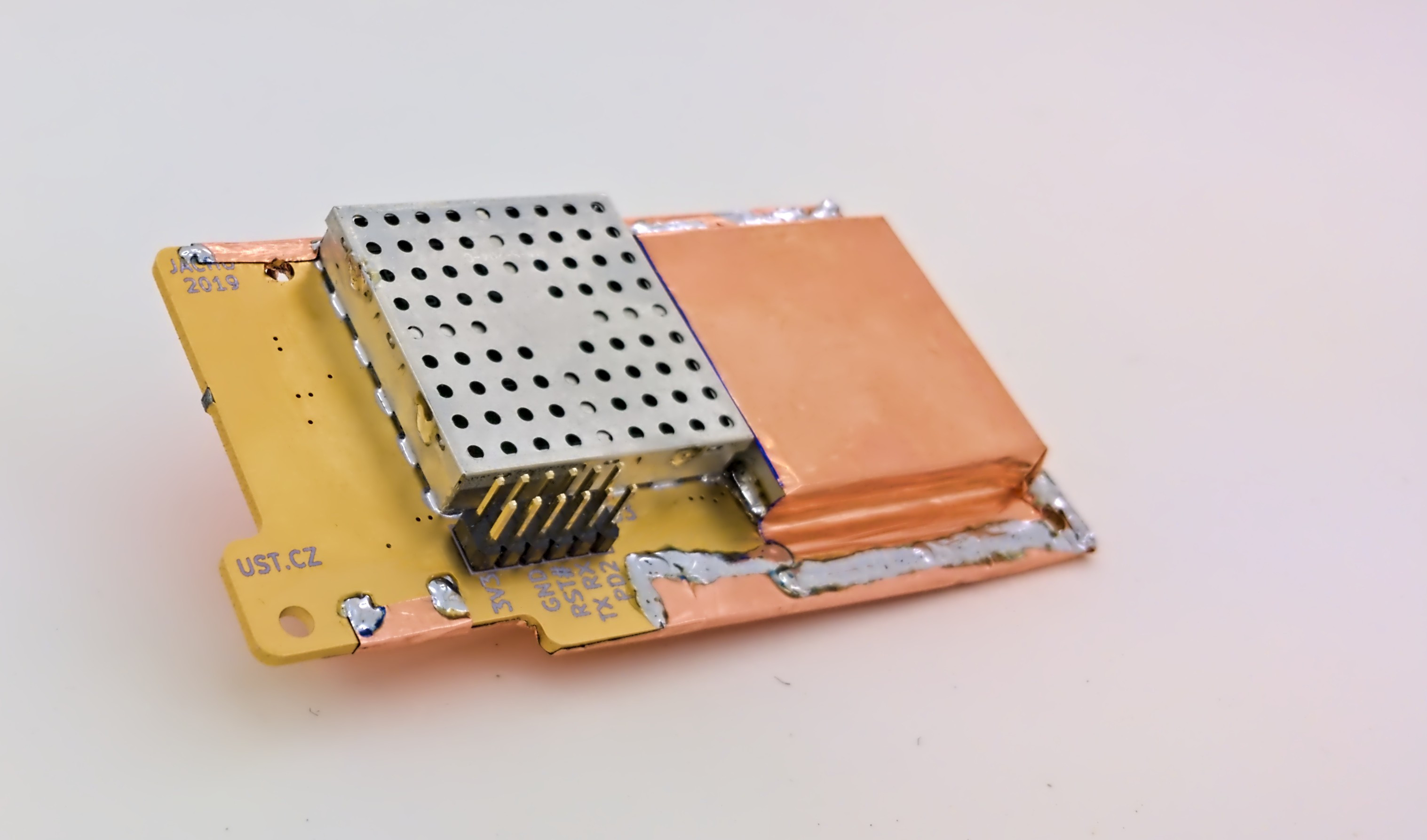

SPACEDOS01, from the project README
From the project README

Main components on the SPACEDOS01

OPA2314ISL21080DIH312Z-TK 1V25TS7211TS5A4594TPS613222ADBVATMEGA1284P-AUPCF85263A

SPACEDOS01 bill of materials (BOM)

79 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
OPA2314
U1, U2
1
ISL21080DIH312Z-TK 1V25
U3
1
TS7211
U4
1
TS5A4594
U5
1
TPS613222ADBV
U8
1
ATMEGA1284P-AU
U10
1
PCF85263A
U11
1
BMI-S-210-F
M6
3
BMI-S-204-F
M8, M9, M10
1
ABS07-120-32.768KHZ-T
Y2
1
2R2
F2
1
S2744-09
D1
1
BZV55C-5,6V
D3
1
10uH - LQH32CN100K23L
L1
1
DFE252012P-4R7M
L3
1
22UF
22uF
C1
20
100NF
100nF
C2, C10, C11, C12, C13, C14, C16, C20 +12
3
4U7
4u7
C3, C17, C43
11
10UF
10uF
C4, C6, C7, C8, C9, C21, C23, C36 +3
1
1pFNP0 251R15S1R0AV4E
C5
Show 13 more
QtyPartRefs
1
3N3
3n3
C15
1
2N2
2n2
C18
1
1NF/NP0
1nF/NP0
C19
1
1UF
1uF
C24
2
NFM21PC105-1UF
NFM21PC105-1uF
C29, C52
1
10R
R1
4
470R
R2, R3, R4, R5
1
10M
R6
5
10K
10k
R7, R12, R20, R21, R23
1
1k
R8
5
4K7
4k7
R9, R11, R15, R19, R22
1
1K2
1k2
R10
1
2K2
2k2
R13

SPACEDOS01 design files

The KiCad project lives in the UniversalScientificTechnologies/SPACEDOS01 repository on GitHub; these links point at the commit this page was built from.

SPACEDOS01: common questions

What microcontroller does the SPACEDOS01 use?

The SPACEDOS01 is built around the ATMEGA1284P-AU, from the AVR/Arduino family.

How big is the SPACEDOS01 PCB?

The SPACEDOS01 measures 93.5 × 48.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SPACEDOS01?

79 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SPACEDOS01 design files?

From the UniversalScientificTechnologies/SPACEDOS01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SPACEDOS01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which UniversalScientificTechnologies chose for the repository.
