CheeseDip-Castellated PCB layout, top view — open source TI MSP430/CC board by upsidedownlabs
Simulate this board

About the CheeseDip-Castellated PCB

CheeseDip-Castellated is an open source TI MSP430/CC PCB design by upsidedownlabs, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 21.6 × 60 mm, with 27 components from 17 distinct parts.

Its main chip is the MSP430G2553IPW28, from the TI MSP430/CC family. Other key parts include the TLV74033PDBVR / ME6211 and CH340C. By type, the board carries 7 capacitors, 5 resistors, 4 connectors, 4 diodes, 3 ICs and 3 switches.

It belongs with the dev boards & breakouts, usb & debug tools and test & measurement designs in this gallery.

From the project

Texas Instrument MSP430G2553 based development board.

Upside Down Labs MSP430 Breadstick is a development board for ultra low power MSP430G2553 MCU from Texas Instruments.

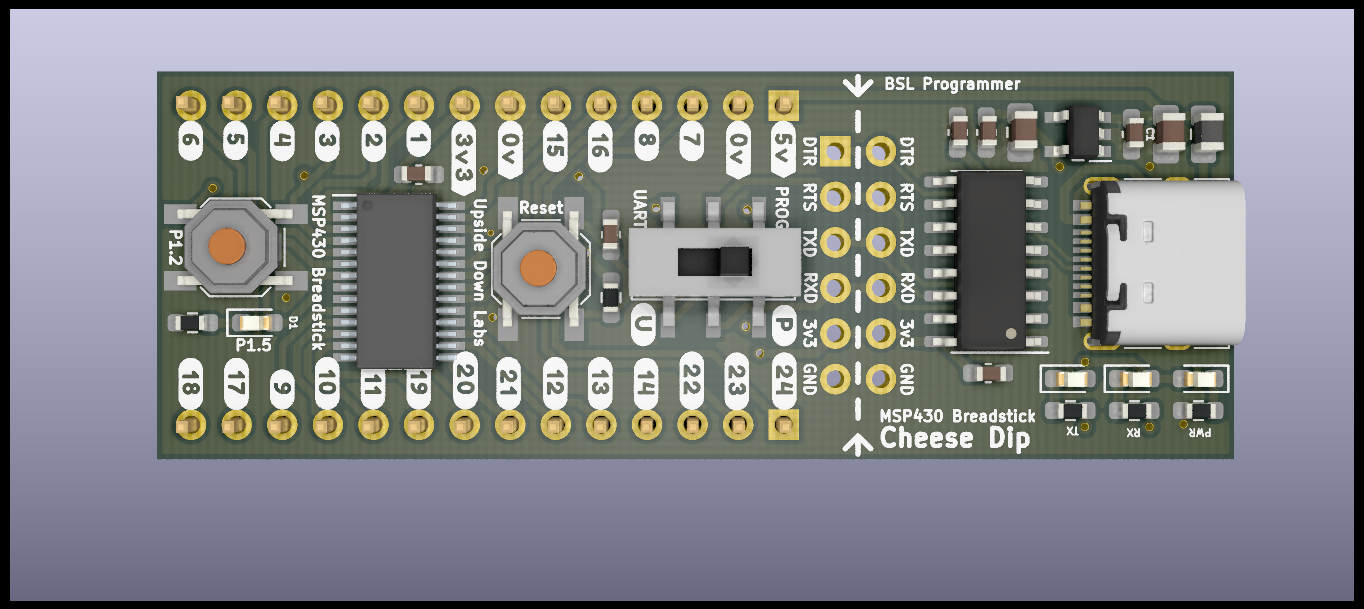

CheeseDip-Castellated, from the project README
From the project README

Main components on the CheeseDip-Castellated

MSP430G2553IPW28TLV74033PDBVR / ME6211CH340C

CheeseDip-Castellated bill of materials (BOM)

27 components, 17 distinct parts.

QtyPartRefs
1
MSP430G2553IPW28
IC1
1
TLV74033PDBVR / ME6211
IC3
1
CH340C
U1
1
Conn_02x06_Counter_Clockwise
J1
2
Conn_01x14
J2, J5
1
USB_C_Receptacle_USB2.0
J3
2
SW_SPST
SW1, SW3
1
SS-3235S-L3
SW2
1
USR LED
D1
1
RX LED
D2
1
PWR LED
D3
1
TX LED
D4
1
Ferrite_Bead_Small
FB1
5
100nF
C1, C3, C4, C6, C8
2
10uF
C2, C7
4
1k
R1, R2, R3, R4
1
10k
R5

CheeseDip-Castellated design files

The KiCad project lives in the upsidedownlabs/MSP430-Breadstick repository on GitHub; these links point at the commit this page was built from.

CheeseDip-Castellated: common questions

What microcontroller does the CheeseDip-Castellated use?

The CheeseDip-Castellated is built around the MSP430G2553IPW28, from the TI MSP430/CC family.

How big is the CheeseDip-Castellated PCB?

The CheeseDip-Castellated measures 21.6 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CheeseDip-Castellated?

27 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the CheeseDip-Castellated design files?

From the upsidedownlabs/MSP430-Breadstick repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the CheeseDip-Castellated design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which upsidedownlabs chose for the repository.

Can I test firmware for the CheeseDip-Castellated without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
