About the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro

NorthernStudios-Custom-RP2040-Dev-Board with-Gyro is an open source RP2040/RP2350 PCB design by uzzambutt, published on GitHub. It is a 6-layer board measuring 17.8 × 48 mm, with 40 components from 19 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVZPIQ TR, LSM6DS3 and MCP1700X-330XXTT. By type, the board carries 19 capacitors, 10 resistors, 4 ICs, 4 connectors, 1 crystal and 1 switch.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

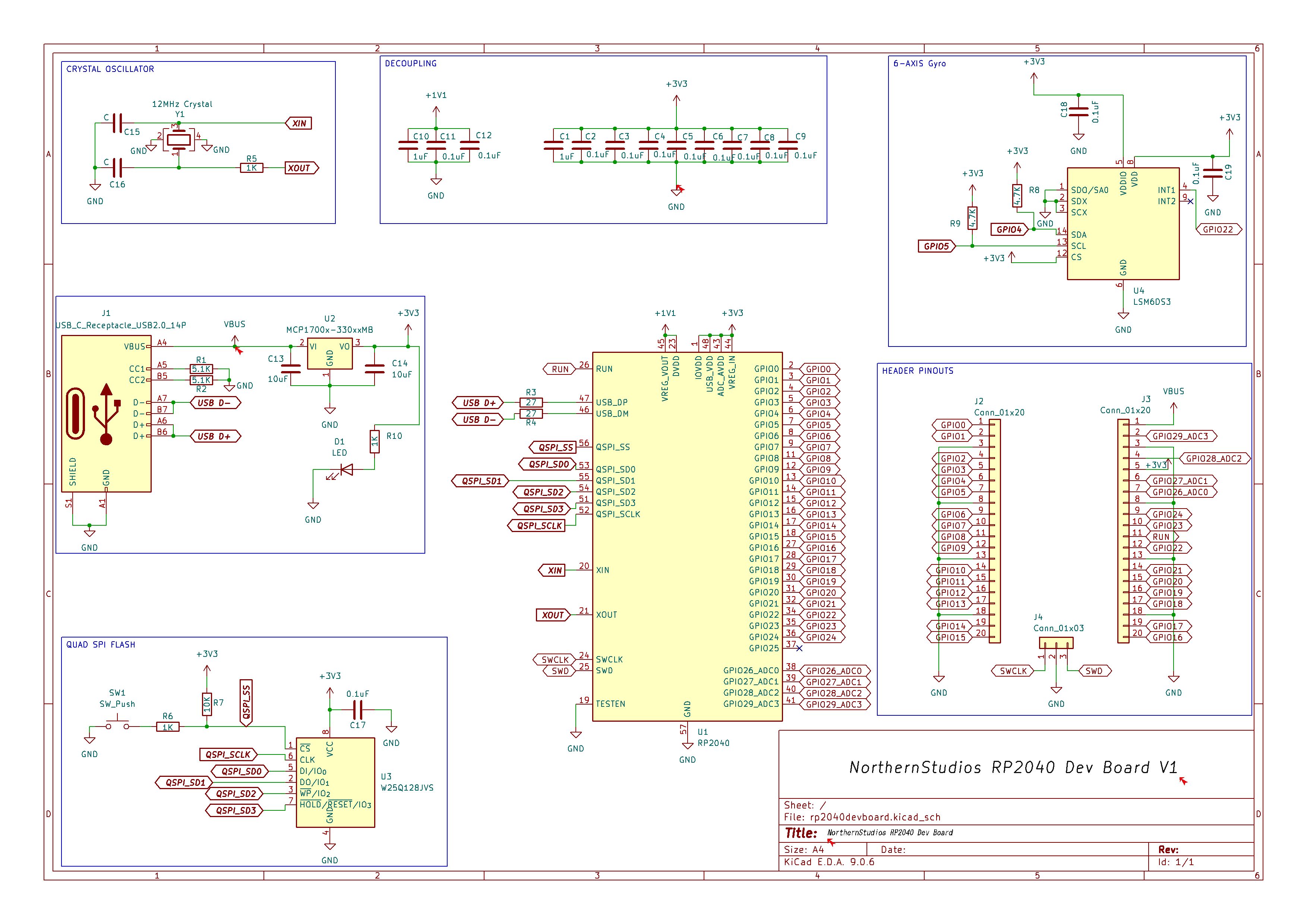

NorthernStudios-Custom-RP2040-Dev-Board with-Gyro, from the project README
From the project README

Main components on the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro

RP2040W25Q16JVZPIQ TRLSM6DS3MCP1700X-330XXTT

NorthernStudios-Custom-RP2040-Dev-Board with-Gyro bill of materials (BOM)

40 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
W25Q16JVZPIQ TR
U3
1
LSM6DS3
U4
1
MCP1700X-330XXTT
MCP1700x-330xxTT
U5
1
12MHz Crystal
Y1
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
2
CONN_01X20
Conn_01x20
J2, J3
1
CONN_01X03
Conn_01x03
J4
1
SW_Push
SW1
1
LED
D1
2
1UF
1uF
C1, C10
13
0.1UF
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +5
2
10UF
10uF
C13, C14
2
33PF
33pF
C15, C16
2
5.1K
R1, R2
2
27
R3, R4
3
1K
R5, R6, R10
1
10K
R7
2
4.7K
R8, R9

NorthernStudios-Custom-RP2040-Dev-Board with-Gyro design files

The KiCad project lives in the uzzambutt/NorthernStudios-Custom-RP2040-Dev-Board-with-Gyro repository on GitHub; these links point at the commit this page was built from.

NorthernStudios-Custom-RP2040-Dev-Board with-Gyro: common questions

What microcontroller does the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro use?

The NorthernStudios-Custom-RP2040-Dev-Board with-Gyro is built around the RP2040, from the RP2040/RP2350 family.

How big is the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro?

The NorthernStudios-Custom-RP2040-Dev-Board with-Gyro measures 17.8 × 48 mm, has 6 copper layers and is 1.6 mm thick.

How many components are on the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro?

40 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro design files?

From the uzzambutt/NorthernStudios-Custom-RP2040-Dev-Board-with-Gyro repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro design in my own project?

The repository has no license, so all rights stay with uzzambutt. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the NorthernStudios-Custom-RP2040-Dev-Board with-Gyro without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
