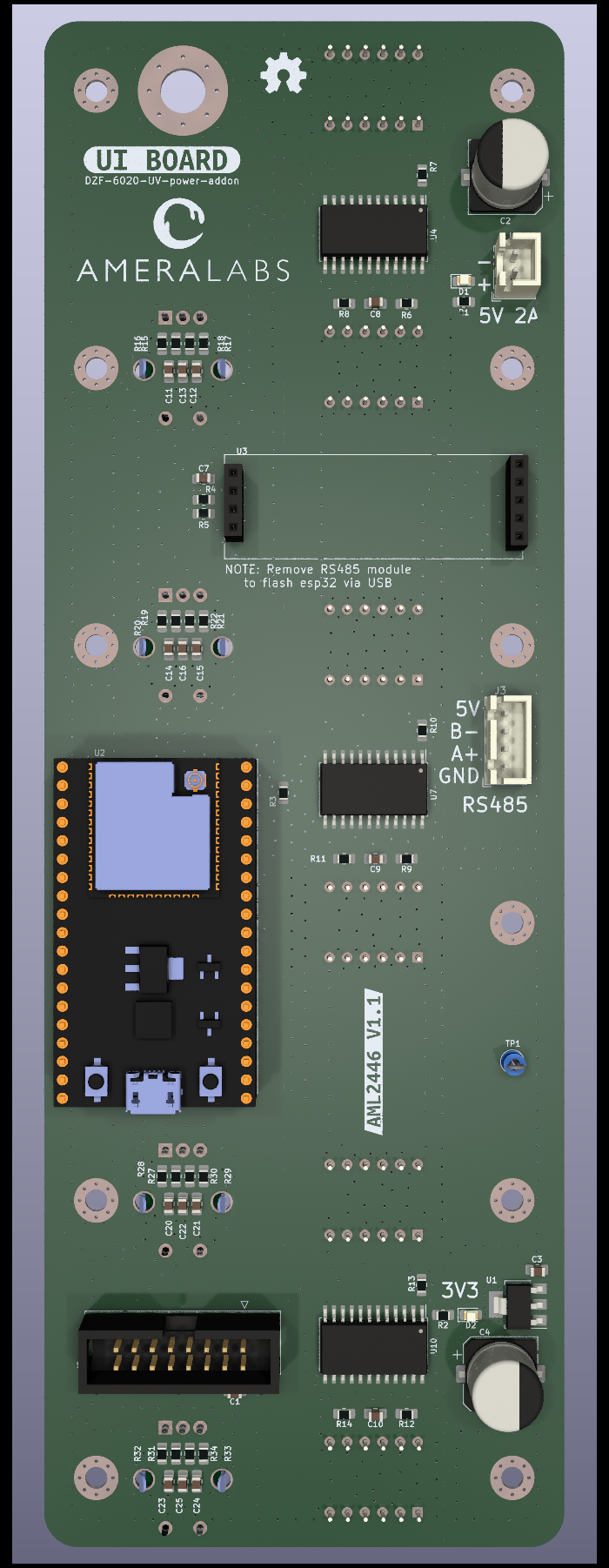

Ui PCB layout, top view — open source ESP32 board by vaidastal

About the Ui PCB

Ui is an open source ESP32 PCB design by vaidastal, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 75 × 220 mm, with 77 components from 34 distinct parts.

Its main chip is the USBLC6-2SC6, from the ESP32 family. Other key parts include the TMP102AIDRLR, SLM346CK-DG and 3641AS. By type, the board carries 34 resistors, 25 capacitors, 12 ICs, 3 connectors and 3 diodes.

From the project

Addon for DZF-6020 vacuum UV post-curing chamber to adjust light sources and their radiant flux.

Dev NOTE: before commit, run ./kibot.sh to regenerate documentation, bom, gerbers and other assets.

UI schematics power schematics * pcb.pdf with dimensions

Ui, from the project README
From the project README

Main components on the Ui

USBLC6-2SC6TMP102AIDRLRSLM346CK-DG3641AS

Ui bill of materials (BOM)

77 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
LM1117-3.3
U1
1
USBLC6-2SC6
esp32-devkitc-v4
U2
1
USBLC6-2SC6
RS485-UART
U3
1
USBLC6-2SC6
MAX7219
U4
2
TMP102AIDRLR
3641AS
U5, U6
2
SLM346CK-DG
MAX7219
U7, U10
3
SLM346CK-DG
3641AS
U8, U9, U11
1
3641AS
U12
1
POWER
J1
1
IDC 2x8
J2
1
RS485
J3
1
5V
D1
1
3V3
D2
1
SS34A
ANT
D3
10
100N
100n
C1, C3, C5, C6, C7, C12, C14, C18 +2
2
100N
220u
C2, C4
1
220U
100n
C8
12
10U/35V
100n
C9, C10, C11, C13, C15, C16, C17, C19 +4
1
10k
R1
1
4k7
R2
Show 14 more
QtyPartRefs
3
100R
R3, R32, R33
2
100R
R4, R5
1
0
R6
1
100R
0
R7
1
100R
10K
R8
1
4K7
0
R9
1
68R
0
R10
2
68R
10K
R11, R14
1
33R
0
R12
1
10K
0
R13
7
68R
1K
R15, R18, R19, R22, R23, R26, R27
4
33R
100R
R16, R20, R24, R28
4
10K
100R
R17, R21, R25, R29
3
1K
R30, R31, R34

Ui design files

The KiCad project lives in the vaidastal/DZF-6020-UV-power-addon repository on GitHub; these links point at the commit this page was built from.

Ui: common questions

What microcontroller does the Ui use?

The Ui is built around the USBLC6-2SC6, from the ESP32 family.

How big is the Ui PCB?

The Ui measures 75 × 220 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Ui?

77 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ui design files?

From the vaidastal/DZF-6020-UV-power-addon repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ui design in my own project?

Yes, under the terms of its GPL-3.0 license, which vaidastal chose for the repository.

Can I test firmware for the Ui without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
