RFMote PA

vedderb·rise_sdvp·Hardware/RFMote_PA/RFMote_PA.kicad_pcb

RFMote PA PCB layout, top view — open source STM32 board by vedderb
Simulate this board

About the RFMote PA PCB

RFMote PA is an open source STM32 PCB design by vedderb, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 64 × 27 mm, with 73 components from 40 distinct parts.

Its main chip is the STM32F40X_LQFP64, from the STM32 family. Other key parts include the LM3671, CC2520, CC2592 and MCP2551-I/SN. By type, the board carries 33 capacitors, 17 resistors, 7 connectors, 6 inductors, 5 ICs and 2 crystals.

It belongs with the rf & radio, robotics & motion and sensors designs in this gallery.

From the project

The RISE Self-Driving Model Vehicle Platform

This is the source code and hardware design for a model vehicle platform developed and maintained by the VESC project (formerly at RISE Research Institutes of Sweden). The platform has support for cars with Ackermann steering, robots with differential steering and partial support for quadcopters.

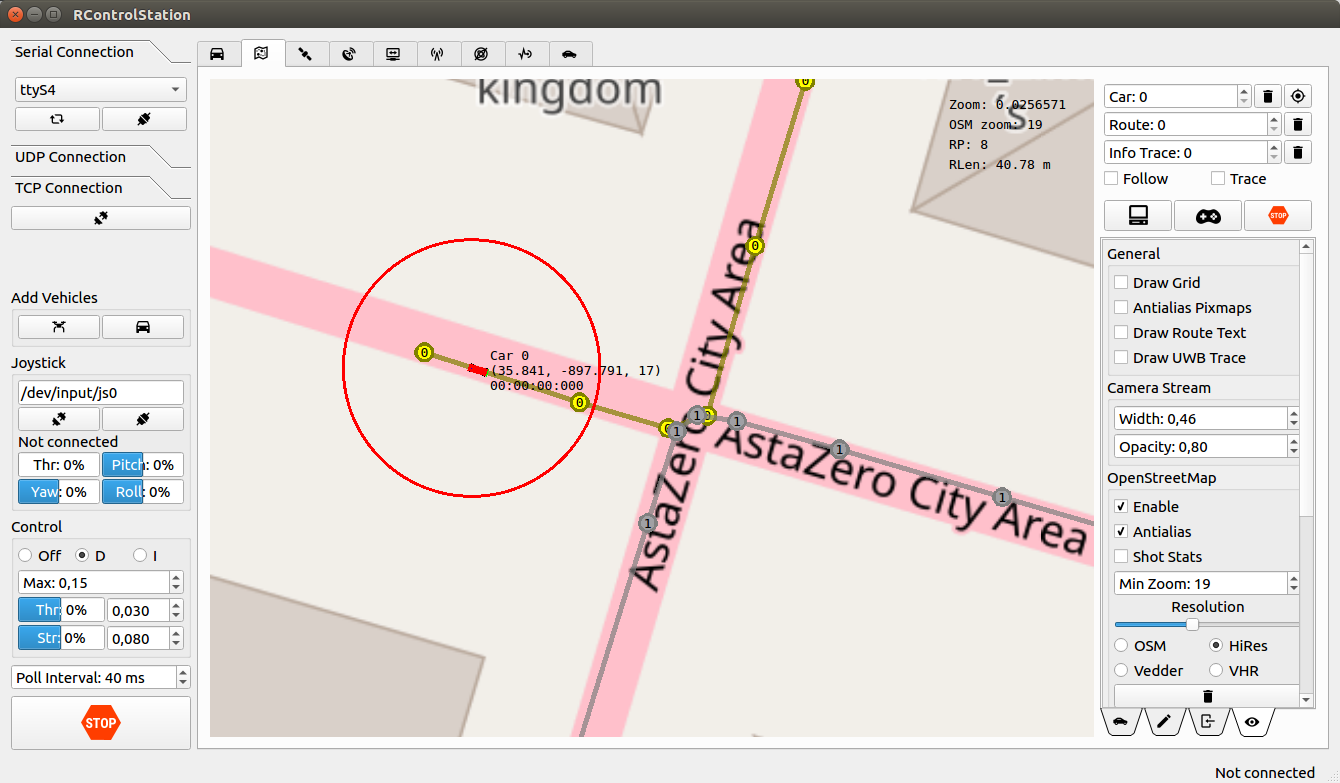

Self-Driving in this context means that the vehicles can follow a pre-programmed path outdoors accurately using RTK-GNSS. The paths can be edited using RControlStation as a set of points with different time stamps or velocities, depending on the mode. It is also possible to send paths to the…

RFMote PA, from the project README
From the project README

Main components on the RFMote PA

LM3671STM32F40X_LQFP64CC2520CC2592MCP2551-I/SN

RFMote PA bill of materials (BOM)

73 components, 40 distinct parts.
