Coolgirl nes multicart

viuhimciuc·coolgirl-nes-multicart·Coolgirl-NES_Rev6.x/Coolgirl-NES_Rev6.x.kicad_pcb

Coolgirl nes multicart PCB layout, top view — open source AVR/Arduino board by viuhimciuc

About the Coolgirl nes multicart PCB

Coolgirl nes multicart is an open source AVR/Arduino PCB design by viuhimciuc, published on GitHub. It is a 2-layer board measuring 100 × 59 mm, with 61 components from 19 distinct parts.

Its main chip is the ATTINY13A-S, from the AVR/Arduino family. Other key parts include the EPM1270T144, LD1117S33TR, S29GL01GP, FM18W08-SG and LY62L2568. By type, the board carries 28 capacitors, 17 resistors, 10 ICs, 3 diodes, 1 connector and 1 battery holder.

It belongs with the retro computing and usb & debug tools designs in this gallery.

From the project

Ultimate multigame cartridge for Nintendo Entertainment System (NES)

The goal of this project is to create a Nintendo Entertainment System (NES) cartridge in KiCad based on the coolgirl-famicom-multicart project. This hardware design remains functionally identical to ClusterM's original project and can support up to ~700 games across various mappers.

Layers: 2 PCB Thickness: 1.2mm Edge Connectors**: Gold fingers are highly recommended

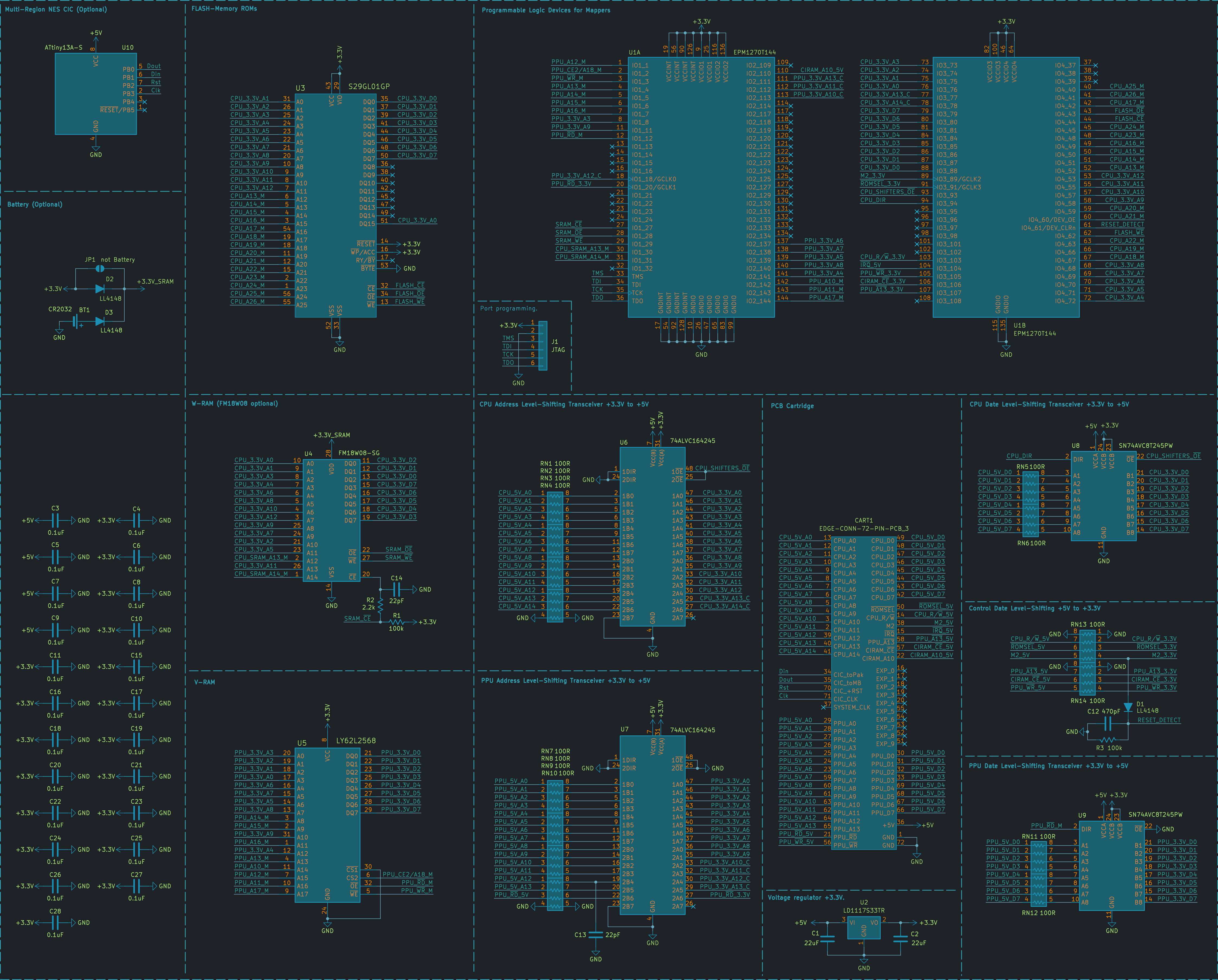

Coolgirl nes multicart, from the project README
From the project README

Main components on the Coolgirl nes multicart

EPM1270T144LD1117S33TRS29GL01GPFM18W08-SGLY62L256874ALVC164245SN74AVC8T245PWATTINY13A-S

Coolgirl nes multicart bill of materials (BOM)

61 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
EPM1270T144
U1
1
LD1117S33TR
U2
1
S29GL01GP
U3
1
FM18W08-SG
U4
1
LY62L2568
U5
2
74ALVC164245
U6, U7
2
SN74AVC8T245PW
U8, U9
1
ATTINY13A-S
ATtiny13A-S
U10
1
JTAG
J1
1
CR2032
BT1
1
EDGE-CONN-72-PIN-PCB_3
CART1
3
LL4148
D1, D2, D3
2
22UF
22uF
C1, C2
23
0.1UF
0.1uF
C3, C4, C5, C6, C7, C8, C9, C10 +15
1
470PF
470pF
C12
2
22PF
22pF
C13, C14
2
100K
100k
R1, R3
1
2.2K
2.2k
R2
14
100R
RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 +6

Coolgirl nes multicart design files

The KiCad project lives in the viuhimciuc/coolgirl-nes-multicart repository on GitHub; these links point at the commit this page was built from.

Coolgirl nes multicart: common questions

What microcontroller does the Coolgirl nes multicart use?

The Coolgirl nes multicart is built around the ATTINY13A-S, from the AVR/Arduino family.

How big is the Coolgirl nes multicart PCB?

The Coolgirl nes multicart measures 100 × 59 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Coolgirl nes multicart?

61 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Coolgirl nes multicart design files?

From the viuhimciuc/coolgirl-nes-multicart repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Coolgirl nes multicart design in my own project?

The repository has no license, so all rights stay with viuhimciuc. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Coolgirl nes multicart without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
