About the Stm32mp1-custom devboard PCB

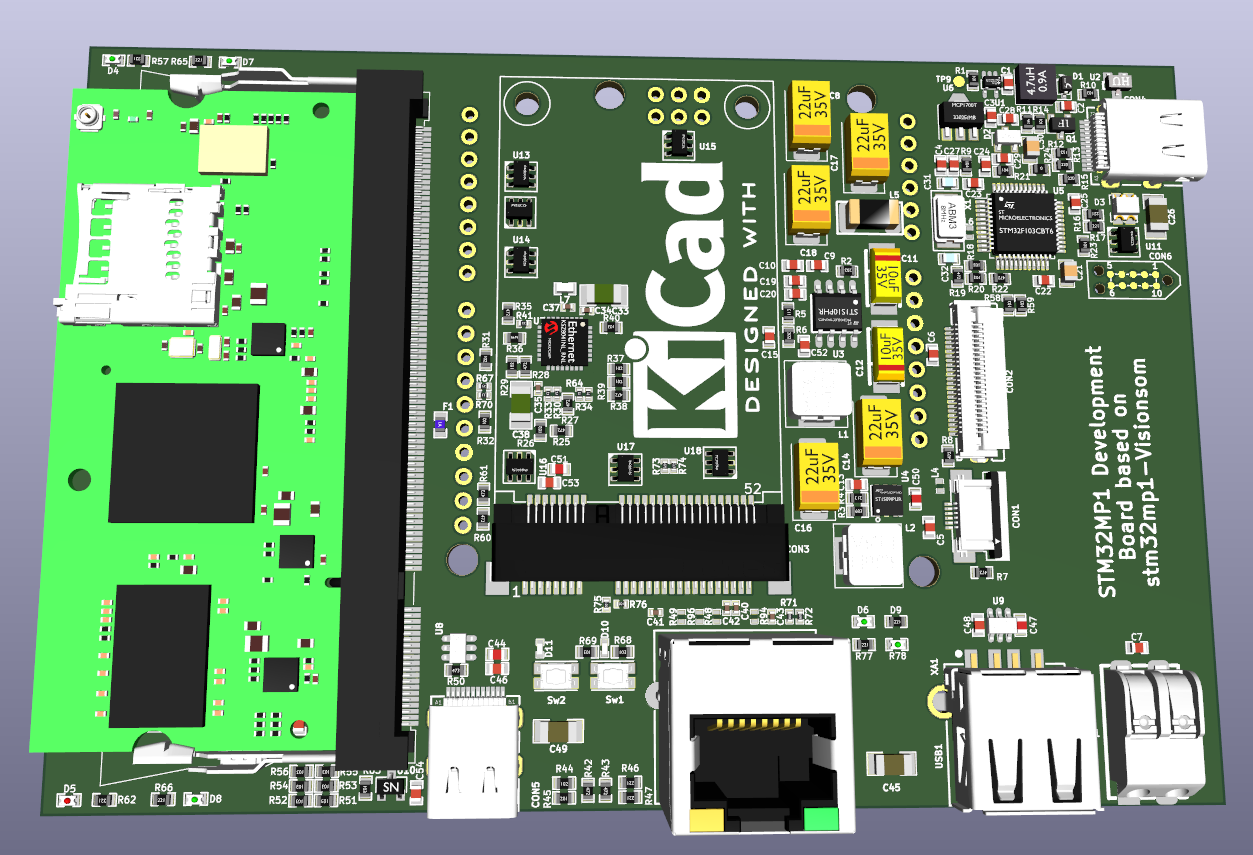

Stm32mp1-custom devboard is an open source STM32 PCB design by voloviq, published on GitHub. It is a 4-layer board measuring 120 × 80.6 mm, with 194 components from 69 distinct parts.
Its main chip is the STM32F103CBT6, from the STM32 family. Other key parts include the TPS61169DCKR, MCP1703T-3302E/CB, ST1S10PHR, ST1S09IPUR and MCP1700T-3302E/MB. By type, the board carries 80 resistors, 54 capacitors, 19 ICs, 11 diodes, 7 connectors and 7 test points.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Custom development board for stm32mp1-visionsom from Somlabs
Development boards are created in KiCad.
Boards supported with DSI Display with touchscreen, arduino header, power supply, ethernet and usb.

Main components on the Stm32mp1-custom devboard
Stm32mp1-custom devboard bill of materials (BOM)
194 components, 69 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS61169DCKR Texat Instruments | TPS61169DCKR | U1 |
| 1 | MCP1703T-3302E/CB MCP1703T-3302E MICROCHIP TECHNOLOGY | MCP1703T-3302E_SOT23 | U2 |
| 1 | ST1S10PHR ST Microelectronics | ST1S10PHR_SOIC8 | U3 |
| 1 | ST1S09IPUR ST Microelectronics | ST1S09IPUR | U4 |
| 1 | STM32F103CBT6 STM32F103C(8-B)Tx ST Microelectronics | STM32F103CBT6 | U5 |
| 1 | MCP1700T-3302E/MB MCP1700T-3302E_MB Microchip Technology | MCP1700T-3302E_MB_SOT89 | U6 |
| 1 | KSZ8041NL-TR KSZ8041NL_RNL Microchip / Micrel | KSZ8041NL_RNL_QFN32 | U7 |
| 2 | USBLC6-2SC6 USBLC6-2 STMicroelectronics | USBLC6-2_SOT23-6L | U8, U9 |
| 1 | APX803D-29SRG-7 Diodes Incorporated | APX803D-29SRG-7 | U10 |
| 9 | IP4220CZ6.125 IP4220CZ6 NEXPERIA | IP4220CZ6_SOT457 | U11, U12, U13, U14, U15, U16, U17, U18 +1 |
| 1 | BC847BE6327 BC847B INFINEON TECHNOLOGIES | BC847B_SOT23 | Q1 |
| 1 | ABM3AIG-8.000MHZ-8-1R-T 8.000MHZ ABRACON | ABM3AIG-8.000MHZ-8-1R-T | X1 |
| 1 | 52746-0671 MOLEX | 52746-0671 | CON1 |
| 1 | 505110-2491 MOLEX | 505110-2491 | CON2 |
| 1 | 2041119-1 TE Connectivity | 2041119-1 | CON3 |
| 2 | 632723300011 USB_C_Wurth_632723300011 Wurth Elektronik | 632723300011 | CON4, CON5 |
| 1 | TC2050-IDC-NL TC2050-IDC-NL-SWI Tag-Connect LLC | TC2050-IDC-NL | CON6 |
| 1 | 2060-452/998-404 Main Power Supply WAGO | 2060-452_998-404 | P1 |
| 1 | FUSE 0603-FF PW 1A FF_PW_1A0 ESKA | Fuse_0603-FF_PW_1A0 | F1 |
| 1 | VisionSOM-STM32MP1 Somlabs | VisionSOM-STM32MP1 | SOM1 |
Show 49 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 434153017835 Wurth Electronics | 434153017835 | Sw1, Sw2 |
| 1 | 74990101210 WE-RJ45_74990101210 Wurth | WE-RJ45_74990101210 | T2 |
| 7 | TP1.27mm | Test_Point_1.27mm | TP5, TP6, TP7, TP8, TP9, TP10, TP11 |
| 1 | 62900416021 USB-A-Wurth-62900416021 Wurth | Wurth-62900416021 | USB1 |
| 1 | ARDUINO_101_SHIELD Arduino_101_Shield | Arduino_101_Shield | XA1 |
| 1 | NSR0530HT1G NSR0530H-D ON Semiconductor | NSR0530H-D_SOD323 | D1 |
| 1 | BAT54C.215 BAT54C Nexperia | BAT54C | D2 |
| 1 | HSMF-C155 Broadcom/Avago | HSMF-C155 | D3 |
| 5 | KP-1608CGCK KPT-1608CGCK KINGBRIGHT ELECTRONIC | LED_KPT-1608CGCK | D4, D6, D7, D8, D9 |
| 1 | KPG-1608SURKC-T KINGBRIGHT ELECTRONIC | LED_KPG-1608SURKC-T | D5 |
| 2 | 82357120100 Wurth Elektronik | 82357120100 | D10, D11 |
| 2 | ASPI-0630HI-3R3M-T15 3.3uH-13.5A ABRACON | ASPI-0630HI-3R3M-T15 | L1, L2 |
| 1 | 74438333047 4.7uH-0.9A-74438333047 Wurth | 4.7uH-0.9A-74438333047 | L3 |
| 2 | BLM15HG601SN1D MURATA | BLM15HG601SN1D_0402 | L4, L6 |
| 1 | 742792515 Wurth Elektronik | 742792515 | L5 |
| 1 | BLM18PG121SN1D MURATA | BLM18PG121SN1D_SM0603 | L7 |
| 3 | CL10B105KO8NNNC 1uF/16V SAMSUNG | 1uF_0603 | C1, C3, C4 |
| 1 | CL10A475KQ8NNNC 4.7uF/35V SAMSUNG | 4_7uF_0603 | C2 |
| 29 | GRM155R71H104KE14D 100nF/50V Murata | 100nF_0402 | C5, C6, C7, C9, C10, C13, C19, C20 +21 |
| 5 | 293D226X9035D2TE3 22uF35V VISHAY | 22uF_35V_Size_D | C8, C14, C16, C17, C18 |
| 2 | 293D106X9035C2TE3 10uF/35V VISHAY | 10uF_35V_C | C11, C12 |
| 1 | VJ0603Y103KXAPW1BC 10nF/50V VISHAY | 10nF_0603 | C15 |
| 2 | C0603C106M9PACTU 10uF/6.3V KEMET | 10uF_10V_0603 | C21, C30 |
| 3 | CC1206KKX7RDBB102 1nF/2kV YAGEO | 1nF_2kV_1206 | C26, C45, C49 |
| 2 | C0603C200J5GACTU 20pF/50V Kemet | 20pF_0603 | C31, C32 |
| 2 | 293D226X9010C2TE3 22uF6V3 VISHAY | 22uF6V3_1206 | C33, C38 |
| 4 | C0603C106M9PACTU 10uF KEMET | 10uF_10V_0603 | C44, C47, C50, C51 |
| 1 | 0603SAF100JT5E 10Ω/1%/0.1Wat ROYAL OHM | 10R_0603 | R1 |
| 2 | CQ03SAF2001T5E 2k,1% ROYAL OHM | 2k_0603 | R2, R6 |
| 1 | 0603SAF6802T5E 68k ROYAL OHM | 68k_0603 | R3 |
| 1 | 0603SAF2102T5E 21k ROYAL OHM | 21k_0603 | R4 |
| 1 | 0603SAF1102T5E 11k,1% ROYAL OHM | 11k_0603 | R5 |
| 14 | 0603SAF4701T5E 4k7 ROYAL OHM | 4k7_0603 | R7, R8, R19, R22, R25, R27, R28, R35 +6 |
| 2 | HP03W5J0104T5E 100k ROYAL OHM | 100k_0603 | R9, R21 |
| 15 | 0603SAJ0103T5E 10k ROYAL OHM | 10k_0603 | R10, R18, R20, R40, R51, R52, R53, R54 +7 |
| 1 | 0603SAJ0363T5E 36k Royal Ohm | 36k_0603 | R11 |
| 2 | CQ03SAF220JT5E 22R Royal Ohm | 22R_0603 | R12, R15 |
| 1 | 0603SAF1501T5E 1k5 Royal Ohm | 1k5_0603 | R13 |
| 2 | CQ03SAF1000T5E 100R Royal Ohm | 100R_0603 | R14, R23 |
| 10 | CQ03SAF2203T5E 220R Royal Ohm | 220R_0603 | R16, R17, R46, R47, R57, R62, R65, R66 +2 |
| 1 | 0603SAJ0000T5E 0R ROYAL OHM | 0R_0603 | R24 |
| 8 | 0603SAF1001T5E 1k ROYAL OHM | 1k_0603 | R26, R29, R31, R32, R37, R39, R75, R76 |
| 7 | CQ02WGF330JTCE 33R Royal Ohm | 33R_0402 | R30, R33, R34, R41, R64, R67, R70 |
| 1 | 0603SAF6491T5E 6k49 ROYAL OHM | 6k49_0603 | R36 |
| 1 | 0603SAF4701T5E 4k7_NM ROYAL OHM | 4k7_0603 | R38 |
| 2 | 0603SAF1001T5E 1k_NM ROYAL OHM | 1k_0603 | R44, R45 |
| 4 | 0402WGF499JTCE 49R9_1% Royal Ohm | 49R9_0402 | R48, R49, R94, R96 |
| 1 | 0603SAF4702T5E 47k Royal Ohm | 47k_0603 | R50 |
| 2 | 0402WGF100JTCE 10R ROYAL OHM | 10R_0402 | R71, R72 |
Stm32mp1-custom devboard design files
The KiCad project lives in the voloviq/stm32mp1-custom-devboard repository on GitHub; these links point at the commit this page was built from.
Stm32mp1-custom devboard: common questions
What microcontroller does the Stm32mp1-custom devboard use?
The Stm32mp1-custom devboard is built around the STM32F103CBT6, from the STM32 family.
How big is the Stm32mp1-custom devboard PCB?
The Stm32mp1-custom devboard measures 120 × 80.6 mm, has 4 copper layers and is 1.614 mm thick.
How many components are on the Stm32mp1-custom devboard?
194 components, from 69 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Stm32mp1-custom devboard design files?
From the voloviq/stm32mp1-custom-devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Stm32mp1-custom devboard design in my own project?
The repository has no license, so all rights stay with voloviq. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Stm32mp1-custom devboard without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
