BirdNest PCB layout, top view — open source ESP32 board by VorosEgyes

About the BirdNest PCB

BirdNest is an open source ESP32 PCB design by VorosEgyes, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 42 components from 27 distinct parts.

Its main chip is the ESP32-CAM, from the ESP32 family. Other key parts include the DS18B20, TP4056_Module, ME2188, LM393 and TL431DBZ. By type, the board carries 14 resistors, 12 capacitors, 6 ICs, 3 transistors, 2 connectors and 2 diodes.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

BirdNest Camera

BirdNest is a battery-aware ESP32-CAM wildlife and bird nest monitoring project built with PlatformIO and Arduino. It captures photos on schedule or command, sends images and status updates to Telegram, and supports MQTT telemetry for smart home and IoT integrations. The firmware includes deep sleep power saving, OTA remote updates, WiFi recovery logic, DS18B20 temperature monitoring, and calibrated battery voltage reporting for reliable long-term outdoor operation.

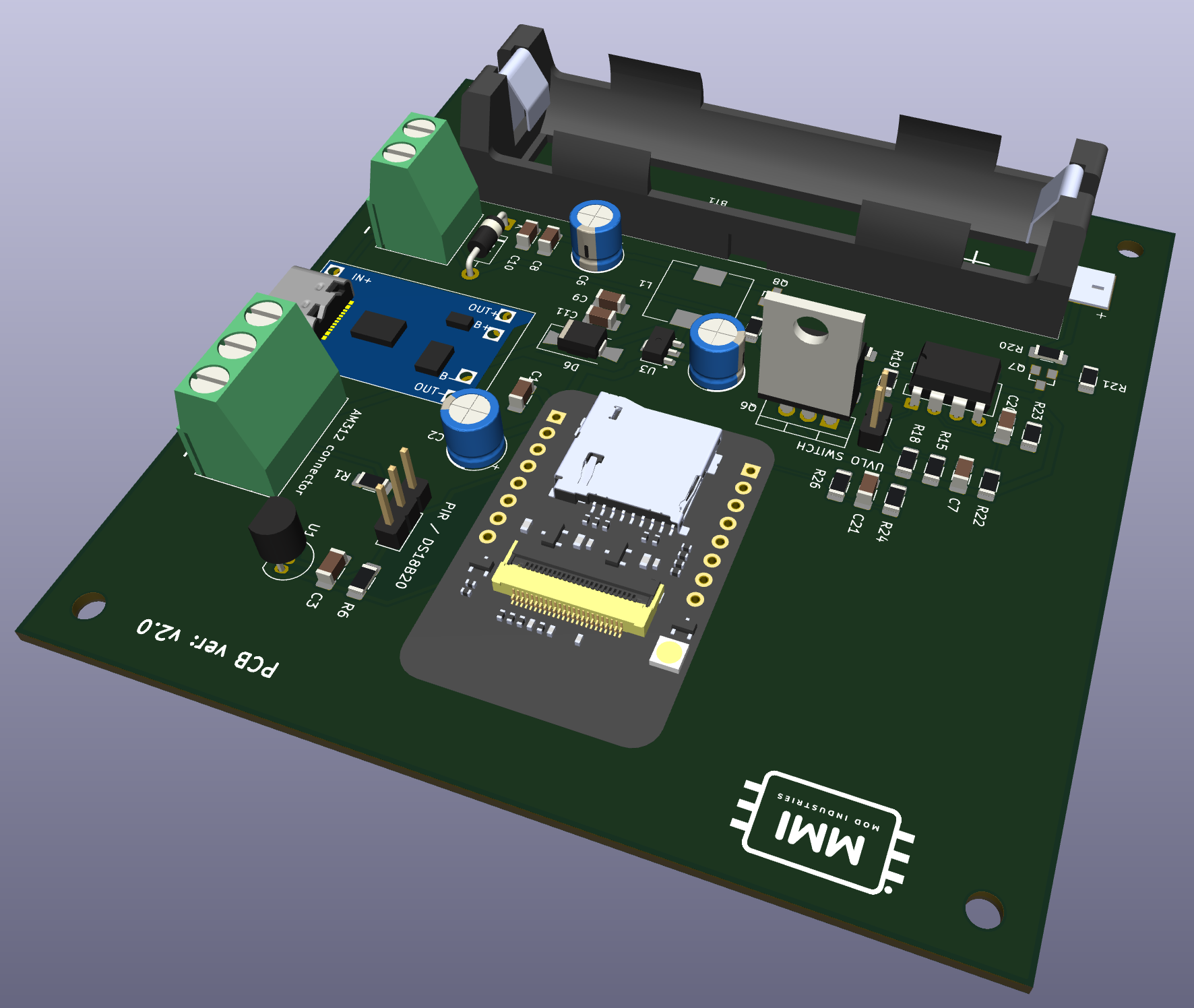

BirdNest, from the project README
From the project README

Main components on the BirdNest

DS18B20TP4056_ModuleME2188ESP32-CAMLM393TL431DBZ

BirdNest bill of materials (BOM)

42 components, 27 distinct parts.

QtyPartRefs
1
DS18B20
U1
1
TP4056_Module
U2
1
ME2188
U3
1
ESP32-CAM
U4
1
LM393
U7
1
TL431DBZ
U8
1
FQP27P06
Q6
2
DMG2305UX
Q7, Q8
1
AM312 connector
J2
1
Solarpanel
J3
1
Battery
BT1
1
Jumper_2_Open
JP7
1
1N5819
D1
1
SS14
D6
1
22uH
L1
7
100nF
C1, C3, C7, C10, C11, C20, C21
3
100uF
C2, C6, C12
1
22uF
C8
1
47uF
C9
1
10k
R1
Show 7 more
QtyPartRefs
5
100k
R2, R15, R18, R21, R23
1
4.7k
R6
1
22k
R17
3
1M
R19, R20, R26
1
39k
R22
1
2M
R24
1
680R
R25

BirdNest design files

The KiCad project lives in the VorosEgyes/BirdNest repository on GitHub; these links point at the commit this page was built from.

BirdNest: common questions

What microcontroller does the BirdNest use?

The BirdNest is built around the ESP32-CAM, from the ESP32 family.

How big is the BirdNest PCB?

The BirdNest measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BirdNest?

42 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the BirdNest design files?

From the VorosEgyes/BirdNest repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the BirdNest design in my own project?

Yes, under the terms of its MIT license, which VorosEgyes chose for the repository.

Can I test firmware for the BirdNest without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
