ESP-Smartwatch

Westsi·ESP-Smartwatch·smartwatch/smartwatch.kicad_pcb

ESP-Smartwatch PCB layout, top view — open source ESP32 board by Westsi

About the ESP-Smartwatch PCB

ESP-Smartwatch is an open source ESP32 PCB design by Westsi, published on GitHub under the GPL-2.0 license. It is a 4-layer board measuring 40 × 29.7 mm, with 34 components from 20 distinct parts.

Its main chip is the ESP32-WROVER-E, from the ESP32 family. Other key parts include the MCP73831-5-OT, MPU-6050 and TLV1117-33. By type, the board carries 13 capacitors, 9 resistors, 4 ICs, 3 connectors, 2 LEDs and 1 switch.

It belongs with the wearables and iot & wireless designs in this gallery.

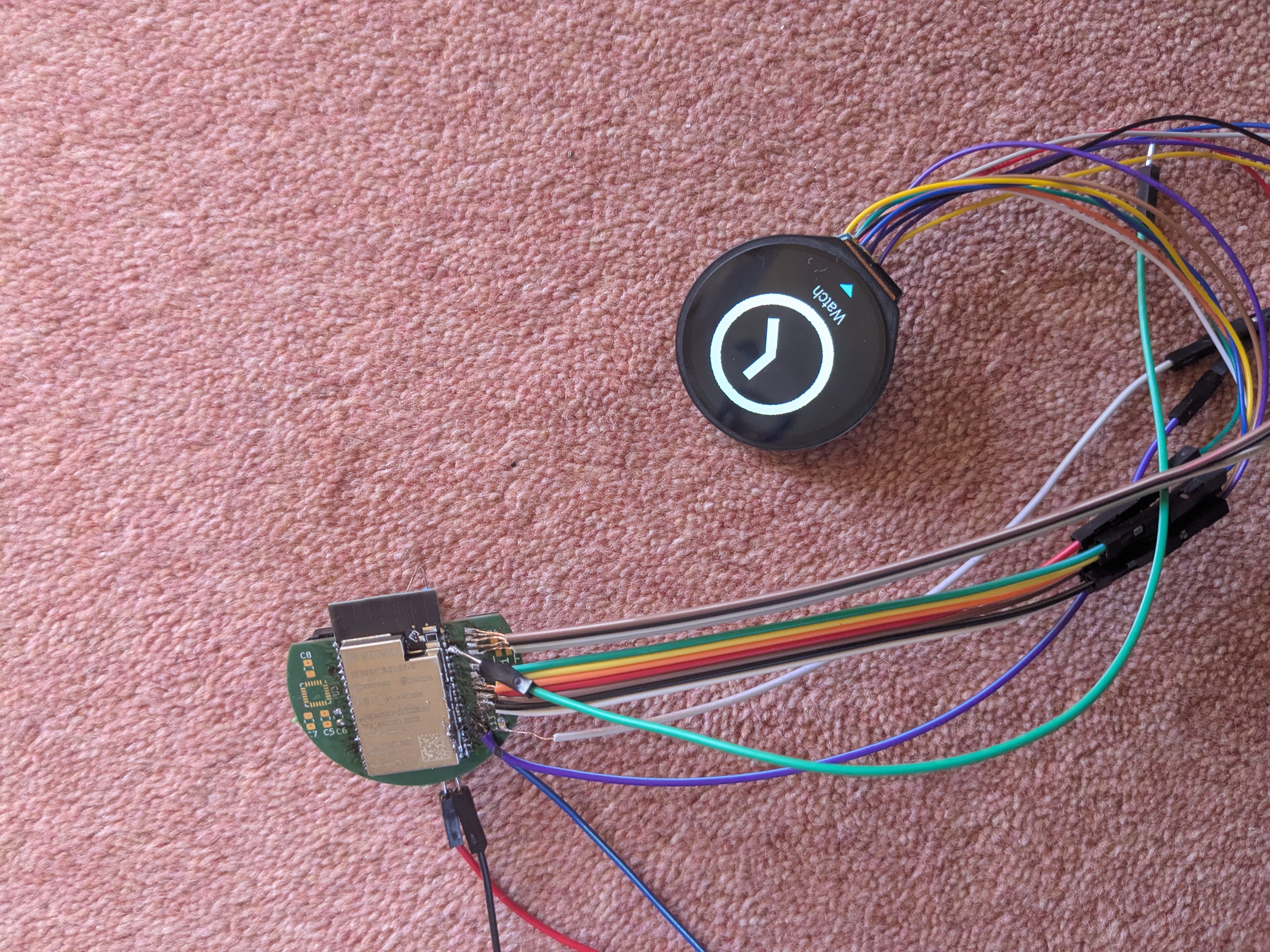

ESP-Smartwatch, from the project README
From the project README

Main components on the ESP-Smartwatch

ESP32-WROVER-EMCP73831-5-OTMPU-6050TLV1117-33

ESP-Smartwatch bill of materials (BOM)

34 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROVER-E
U1
1
MCP73831-5-OT
U2
1
MPU-6050
U3
1
TLV1117-33
U4
1
SM13B-GHS-TB
J4
1
BAT_CON/DC_CON
J5
1
SM02B-GHS-TB(LF)(SN)
PROG_INT
J6
1
BOOT/FLASH
BOOT/FLASH1
1
RST
RST1
1
SW_Push
SW1
1
CHARGED
GREEN1
1
CHARGING
RED1
4
10nF
C1, C4, C8, C13
4
100nF
C2, C3, C9, C10
2
0.1uF
C5, C7
1
2.2nF
C6
2
Polarized_10uF
C11, C12
1
2.2KΩ
R1
2
470Ω
R2, R3
6
10KΩ
R4, R5, R6, R7, R8, R9

ESP-Smartwatch design files

The KiCad project lives in the Westsi/ESP-Smartwatch repository on GitHub; these links point at the commit this page was built from.

ESP-Smartwatch: common questions

What microcontroller does the ESP-Smartwatch use?

The ESP-Smartwatch is built around the ESP32-WROVER-E, from the ESP32 family.

How big is the ESP-Smartwatch PCB?

The ESP-Smartwatch measures 40 × 29.7 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ESP-Smartwatch?

34 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP-Smartwatch design files?

From the Westsi/ESP-Smartwatch repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP-Smartwatch design in my own project?

Yes, under the terms of its GPL-2.0 license, which Westsi chose for the repository.

Can I test firmware for the ESP-Smartwatch without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
