KlackerBS

weteor·Klacker_BS·pcb/klackerBS/klackerBS.kicad_pcb

KlackerBS PCB layout, top view — open source board by weteor

About the KlackerBS PCB

KlackerBS is an open source PCB design by weteor, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 266.5 × 99 mm, with 149 components from 37 distinct parts.

Other key parts include the TP4056, DW01A, USBLC6-2SC6, FS8205 and MS88SF2. By type, the board carries 56 switches, 56 diodes, 13 resistors, 11 capacitors, 6 ICs and 3 connectors.

It belongs with the keyboards designs in this gallery.

From the project

a 3x5+2 split keyboard hidden in a row staggered unibody design w/ numpad

a 3x5+2 split keyboard hidden in a row staggered unibody design w/ numpad

- MX hotswap - compact design - layout for comfortable typing, straight wrist and minimal fingermovement - reversable pcb w/ numpad breakoff - Layout options: Numpad Right, Left or None - Bluetooth and USB connection - case files are supplied (stl, step, as well as freecad files) - ZMK firmware support

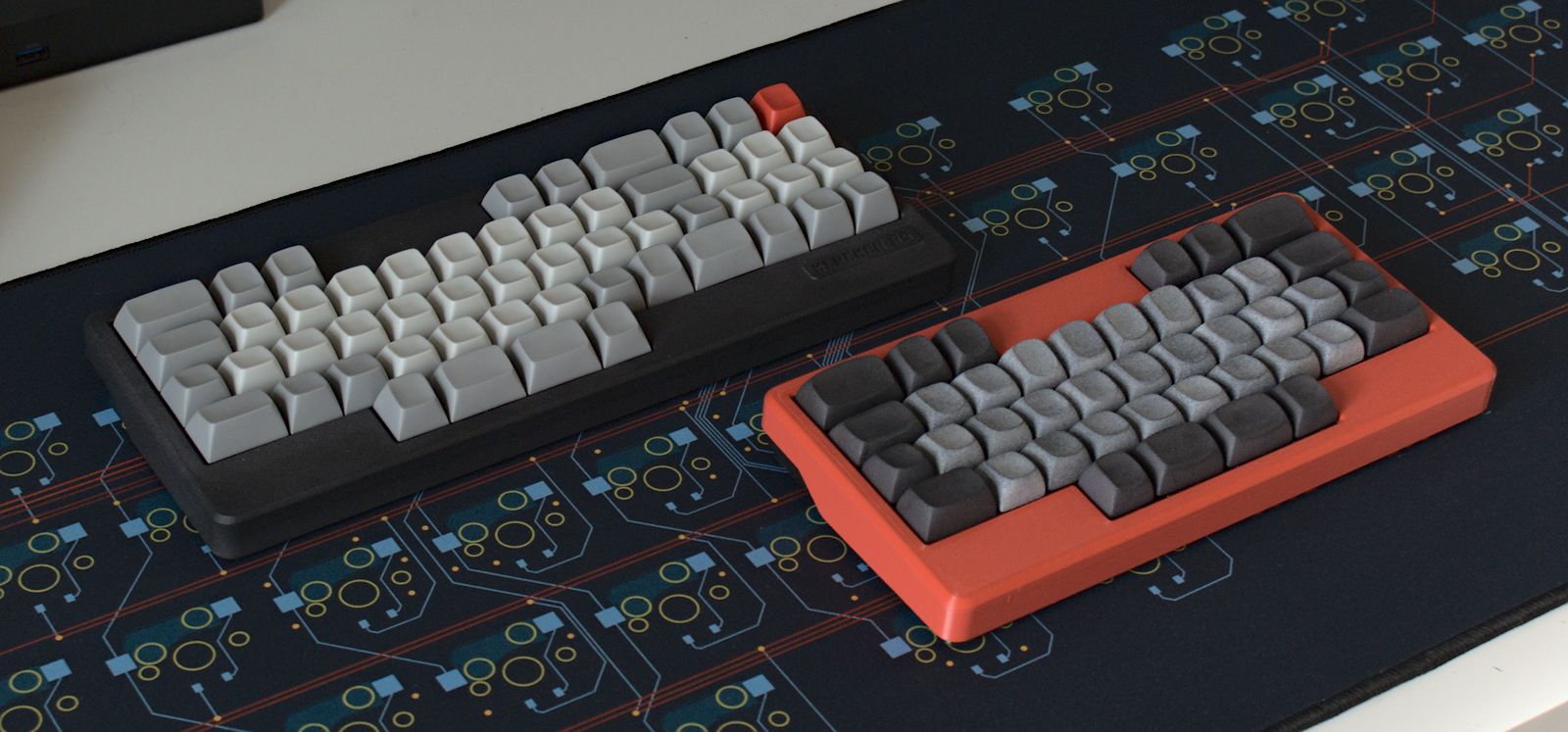

KlackerBS, from the project README
From the project README

Main components on the KlackerBS

TP4056DW01AUSBLC6-2SC6FS8205MS88SF2XC6206PXXXMR-REGULATOR_LINEAR

KlackerBS bill of materials (BOM)

149 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4056
U1
1
DW01A
U2
1
USBLC6-2SC6
U3
1
FS8205
U4
1
MS88SF2
U5
1
XC6206PXXXMR-REGULATOR_LINEAR
XC6206PxxxMR-Regulator_Linear
U6
1
AO3401A
Q1
1
C168688
USB_C Main
J1
1
BL_CONN
J2
1
Conn_01x03
J3
2
Battery_Cell
BT1, BT2
1
500MA
500mA
F1
2
SW_Push
SW1, SW6
45
SW_Push
SW2, SW3, SW4, SW5, SW8, SW9, SW10, SW11 +37
6
SW_Push
SW7, SW16, SW28, SW37, SW39, SW40
1
C520860
SW_RESET
SW54
2
ON_OFF
SW55, SW56
53
C81598
D
D1, D2, D3, D4, D5, D6, D7, D8 +45
1
C2297
gween
D54
1
C84256
oragne
D55
Show 17 more
QtyPartRefs
1
C172430
D_Schottky_Small
D56
4
10UF
10uF
C1, C2, C10, C11
1
100NF
0.1uF
C3
1
1NF
1nF
C4
2
4.7UF
4.7uF
C5, C6
2
1UF
1uF
C7, C8
1
100NF
100nF
C9
2
5.1K
5.1k
R1, R2
1
100R
100
R3
1
1M
R4
3
1k
R5, R6, R7
1
5.1K
5k
R8
1
806K
806k
R9
1
2M
R10
1
100R
R11
1
2R2
R12
1
100K
100k
R13

KlackerBS design files

The KiCad project lives in the weteor/Klacker_BS repository on GitHub; these links point at the commit this page was built from.

KlackerBS: common questions

How big is the KlackerBS PCB?

The KlackerBS measures 266.5 × 99 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KlackerBS?

149 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KlackerBS design files?

From the weteor/Klacker_BS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KlackerBS design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which weteor chose for the repository.
