Cenere-Mouse
About the Cenere-Mouse PCB
Cenere-Mouse is an open source Nordic nRF PCB design by willwaush, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 47.8 × 89 mm, with 104 components from 57 distinct parts.
Its main chip is the NRF52840-QIAA-R, from the Nordic nRF family. Other key parts include the SRV05-4, BQ24075RGTR, MAX17048G+T10, TPS62840YBGR and PAW3395. By type, the board carries 49 capacitors, 25 resistors, 8 ICs, 6 inductors, 5 LEDs and 3 transistors.
It belongs with the iot & wireless and power & battery designs in this gallery.
From the project

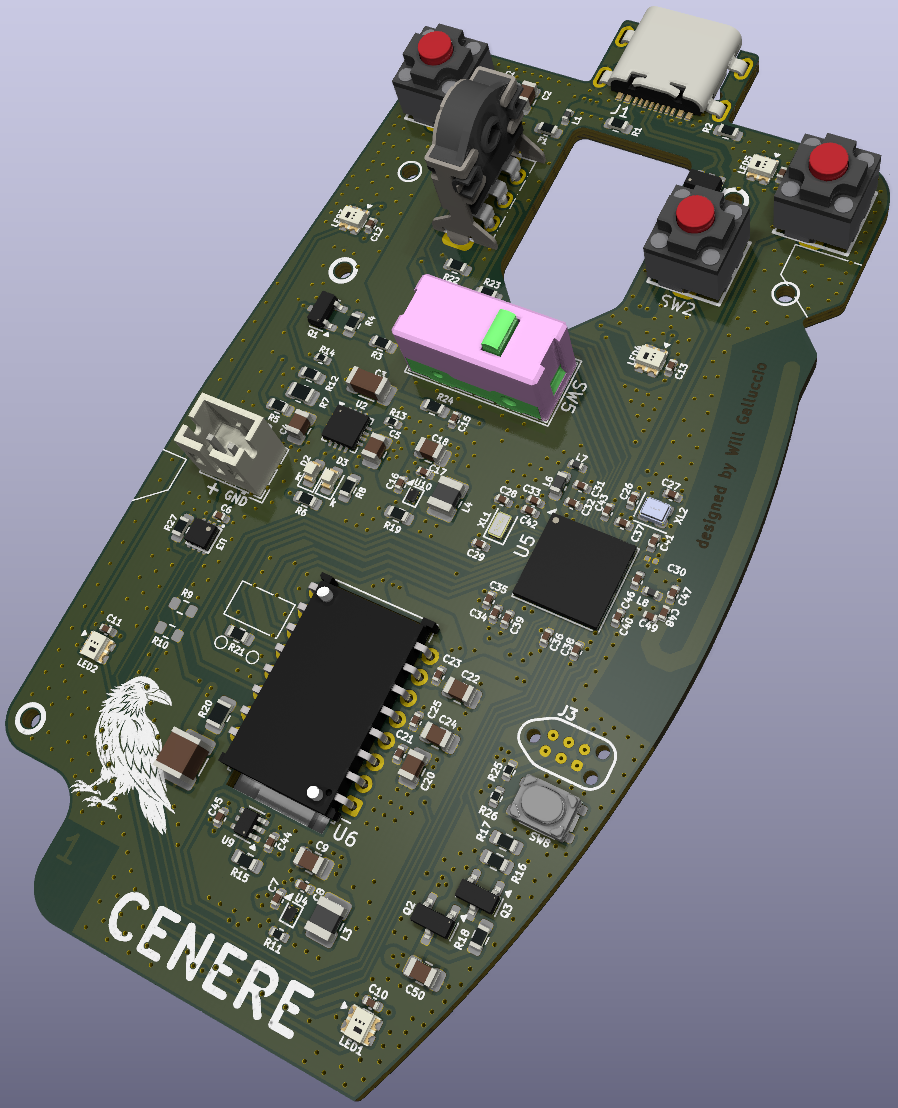

Open Source tri-Mode Mouse
This project is an open-source tri-mode connectivity gaming mouse, designed around the Nordic nRF52840 SoC. It supports three connectivity modes:
- USB HID - Bluetooth Low Energy (BLE) - Nordic 2.4 GHz Wireless protocol
The design is a 4-layer PCB, manufactured by JLCPCB, chosen for their reliable stackup and cost-effective prototyping services.
The board will be fabricated at JLCPCB with the following stackup:
Main components on the Cenere-Mouse
Cenere-Mouse bill of materials (BOM)
104 components, 57 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SRV05-4 MSKSEMI | SOT-23-6 | U1 |
| 1 | BQ24075RGTR BQ24075RGT Texas Instruments | VQFN-16-1EP_3x3mm_P0.5mm_EP1.6x1.6mm_ThermalVias | U2 |
| 1 | MAX17048G+T10 MAX17048 Maxim Integrated | TDFN-8-EP_2x2mm_EP_0.8x1.38mm | U3 |
| 2 | TPS62840YBGR TPS62840YBG Texas Instruments | Texas_DSBGA-6_0.76x1.16mm_Layout2x3_P0.4mm | U4, U10 |
| 1 | NRF52840-QIAA-R nRF52840-QIXX Nordic Semicon | Nordic_AQFN-73-1EP_7x7mm_P0.5mm | U5 |
| 1 | PAW3395 PAW3395DM PIXART | PixArt_PDIP-16_10.9x16.2mm_P1.78mm | U6 |
| 1 | SN74LVC1T45DC Texas Instruments | SOT-363_SC-70-6 | U9 |
| 2 | 2N7002 Jiangsu Changjing Electronics Technology Co., Ltd. | SOT-23 | Q1, Q3 |
| 1 | AO3401A UMW(Youtai Semiconductor Co., Ltd.) | SOT-23 | Q2 |
| 1 | TYPE-C-31-M-14 HRO_Type-C-31-M-14 Korean Hroparts Elec | USB_C_Receptacle_HRO_TYPE-C-31-M-14 | J1 |
| 1 | PH-2A BOOMELE(Boom Precision Elec) | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | J2 |
| 1 | 0467001.NRHF 1 A Littelfuse | Fuse_0603_1608Metric | F1 |
| 1 | SKRPACE010 Microswitch_Wheel ALPS | KEY-SMD_4P-L4.2-W3.2-P2.20-LS4.6 | SW8 |
| 1 | XKHEL89CGI-112YLC-32.768K 32.768kHz YXC Crystal Oscillators | Crystal_SMD_2012-2Pin_2.0x1.2mm | XL1 |
| 1 | XL7EL89CKI-111YLC-32M 32MHz YXC Crystal Oscillators | Crystal_SMD_2016-4Pin_2.0x1.6mm | XL2 |
| 5 | WS2812B-2020 WS2812_2020 Worldsemi | LED_WS2812_2020 | LED1, LED2, LED3, LED4, LED5 |
| 1 | KT-0603R Red Hubei KENTO | LED_0603_1608Metric | D2 |
| 1 | APTD1608CGCK Emerald Kingbright | LED_0603_1608Metric | D3 |
| 1 | BLM15PX121SN1D Murata | L_0402_1005Metric | L1 |
| 2 | FTC252012S2R2MBCA 2.2uH cjiang (Changjiang Microelectronics Tech) | L_1008_2520Metric | L3, L4 |
Show 37 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LBMF1608T100M 10uH Taiyo Yuden | L_0603_1608Metric | L6 |
| 1 | LQW15AN15NG80D 15nH Murata | L_0402_1005Metric | L7 |
| 1 | LQG15HS4N7S02D 4.7nH Murata | L_0402_1005Metric | L8 |
| 6 | CL21B106KOQNNNE 10uF Samsung | C_0805_2012Metric | C1, C9, C18, C20, C22, C50 |
| 1 | CC0805KRX7R9BB104 100nF YAGEO | C_0805_2012Metric | C2 |
| 1 | 1206B475K500NT 4.7uF FH (Guangdong Fenghua Advanced Tech) | C_1206_3216Metric | C3 |
| 3 | CGA0805X7R475K350MT 4.7uF HRE | C_0805_2012Metric | C4, C5, C24 |
| 15 | CL05B104KB54PNC 100nF Samsung | C_0402_1005Metric | C6, C10, C11, C12, C13, C14, C21, C23 +7 |
| 5 | CL05A475MP5NRNC 4.7uF Samsung | C_0402_1005Metric | C7, C16, C34, C35, C39 |
| 2 | CL05A106MQ5NUNC 10uF Samsung | C_0402_1005Metric | C8, C17 |
| 3 | CL05A105KA5NQNC 1uF Samsung | C_0402_1005Metric | C15, C31, C33 |
| 1 | GRM32ER71A476KE15L 47uF Murata | C_1210_3225Metric | C19 |
| 3 | 0402CG120J500NT 12pF FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C26, C27, C43 |
| 2 | 0402CG150J500NT 15pF FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C28, C29 |
| 1 | CC0402KRX7R9BB473 47nF YAGEO | C_0402_1005Metric | C32 |
| 1 | CL05C821JB5NNNC 820pF Samsung | C_0402_1005Metric | C40 |
| 1 | 0402CG101J500NT 100pF FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C41 |
| 1 | GJM1555C1HR80WB01D 0.8pF Murata | C_0402_1005Metric | C46 |
| 1 | GCM1555C1HR50WA16D 0.5pF Murata | C_0402_1005Metric | C47 |
| 1 | GRM0335C1ER40WA01D 0.4pF Murata | Z0201 RF Antenna Path | C48 |
| 1 | DNP | Z0201 RF Antenna Path | C49 |
| 3 | 0603WAF5101T5E 5.1K UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R1, R2, R15 |
| 2 | 0603WAF1000T5E 100R UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R3, R17 |
| 5 | 0603WAF1002T5E 10K UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R4, R16, R18, R21, R27 |
| 1 | 0603WAF1003T5E 100K UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R5 |
| 2 | 0603WAF1501T5E 1.5K UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R6, R8 |
| 1 | 0805W8F1002T5E 10K UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R7 |
| 1 | FRC0402F2673TS 267K FOJAN | R_0402_1005Metric | R11 |
| 1 | 0603WAF3901T5E 3.9K UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R12 |
| 1 | 0402WGF2201TCE 2.2K UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R13 |
| 1 | 0402WGF5602TCE 56K UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R14 |
| 1 | RC0603DR-07909RL 909R YAGEO | R_0603_1608Metric | R19 |
| 1 | 0805W8F560KT5E 5.6R UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R20 |
| 2 | 0603WAF1004T5E 1M UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R22, R23 |
| 1 | 0603WAF470KT5E 4.7R UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric | R24 |
| 1 | 0402WGF1003TCE 100K UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R25 |
| 1 | 0402WGF1501TCE 1.5K UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R26 |
Cenere-Mouse design files
The KiCad project lives in the willwaush/Cenere-Mouse repository on GitHub; these links point at the commit this page was built from.
Cenere-Mouse: common questions
What microcontroller does the Cenere-Mouse use?
The Cenere-Mouse is built around the NRF52840-QIAA-R, from the Nordic nRF family.
How big is the Cenere-Mouse PCB?
The Cenere-Mouse measures 47.8 × 89 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Cenere-Mouse?
104 components, from 57 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cenere-Mouse design files?
From the willwaush/Cenere-Mouse repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Cenere-Mouse design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Cenere-Mouse without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
