1026-RPi-Power-Hat
About the 1026-RPi-Power-Hat
1026-RPi-Power-Hat is an open source PCB design by wilsondr9999, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 85 × 56.5 mm, with 121 components from 55 distinct parts.
Other key parts include the LM64440APPQRYFRQ1, TLV75511PDQNR, TLV75533PDQNR, TUSB4041IPAPR and TPS2561DRCR. By type, the board carries 52 capacitors, 35 resistors, 12 ICs, 8 inductors, 6 connectors and 4 diodes.
It belongs with the dev boards & breakouts and sensors designs in this gallery.
From the project
1026 RPi Power Hat
For assembly, the recommended method is to use solder paste and a stencil with a reflow oven or hot air station. The stencil can be made from the 1026 RPi Power Hat-F_Paste file in the Fabrication Exports folder. Inexpensive stencils are available from OshStencils.

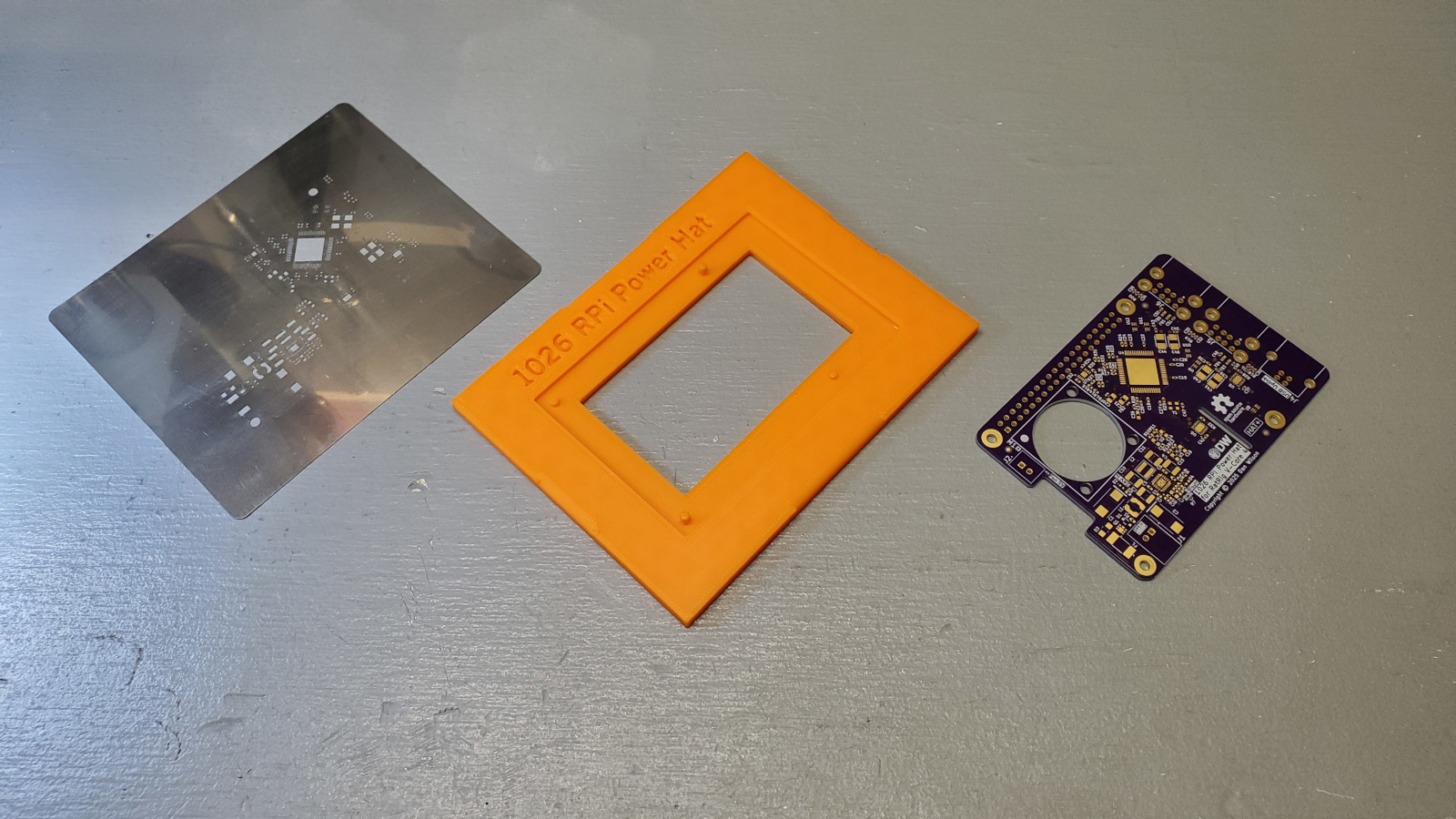

There is a solder stencil jig that can be 3D printed in the FreeCAD Project folder. The file 1026 RPi Power Hat SSJ (STL) can be imported into your preferred slicer and printed with the following settings:
Main components on the 1026-RPi-Power-Hat
1026-RPi-Power-Hat bill of materials (BOM)
121 components, 55 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM64440APPQRYFRQ1 | [U] TI LM63460 Sw Volt Reg | U1 |
| 1 | TLV75511PDQNR | [U] TI LDO Regulator TLV755 DQN | U2 |
| 1 | TLV75533PDQNR | [U] TI LDO Regulator TLV755 DQN | U3 |
| 1 | TUSB4041IPAPR | [U] Texas Inst USB 2.0 Hub Controller TUSB4041I QFP50P1200X1200X120-65N | U4 |
| 2 | TPS2561DRCR | [U] TI USB Power Ctlr TPS2561DRCR | U5, U6 |
| 1 | CAT24C32HU4I-GT3 | [U] OnSemi Serial EEPROM 4KB CAT24C32HU4I-GT3 | U7 |
| 5 | USBLC6-2P6 | [U] ST Micro USB ESD Protection USBLC6-2P6 | U8, U9, U10, U11, U12 |
| 1 | CFM-2510B-070-140 | [Fan] SameSky CFM-2510B-070-140 | M1 |
| 1 | BUK6D120-60PX | [Q] Nexperia BUK6D120-60PX P-Ch 60V 8A | Q1 |
| 1 | ECS-2520MV-240-BL-TR | [Y] ECS Clock Osc 24MHz ECS2520MV240BLTR | Y1 |
| 1 | S2B-XH-A-1 | [J] JST S2B-XH-A-1 | J1 |
| 1 | B2B-XH-A(LF)(SN) | JST_B2B-XH-A(LF)(SN) | J2 |
| 1 | ESW-120-34-G-D | [J] Samtec Elevated Socket Strip ESW-120-34-G-D | J3 |
| 1 | USB1030-GF-P-B-B | [J] GCT USB-B 2.0 Connector PCB USB1030-GF-P-B-B | J4 |
| 2 | USB1035-GF-P-0-B-B | [J] GCT USB-A x2 2.0 Connector USB1035-GF-P-0-B-B | J5, J6 |
| 1 | 1812L110/33MR | [F] Littelfuse PPTC 1812L010DR | F1 |
| 1 | PDZ10B,115 | [D] Nexperia Zener PDZ10B,115 10V | D1 |
| 1 | 150040GS73220 | [D] Wurth Elektronik 150040GS73220 | D2 |
| 1 | SMF24CA | [D] Littelfuse SMF24CA 24V 200W | D3 |
| 1 | 150040RS73240 | [D] Wurth Elektronik 150040RS73240 | D4 |
Show 35 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | BLM15PX221SZ1D | [FB] Murata BLM15PX221SZ1D | FB1, FB2 |
| 4 | BLM18KG221SN1D | [FB] Murata BLM18KG221SN1D 220ohm 2.2A | FB3, FB4, FB5, FB6 |
| 1 | LPS4040-223 | [L] Coilcraft Inductor LPS4040 | L1 |
| 1 | XGL4025-152ME | [L] Coilcraft Inductor XGL4025 | L2 |
| 2 | T521D336M035ATE065 | [C] Kemet Tantalum Polymer T521X | C1, C2 |
| 2 | GRJ32ER71H106KE11K | C_1210_3225Metric | C3, C4 |
| 2 | GCM155R71H223KA55D | C_0402_1005Metric | C5, C6 |
| 6 | GCM188R71C105KA64J | C_0603_1608Metric | C7, C13, C14, C15, C16, C36 |
| 25 | GCM155R71C104KA55D | C_0402_1005Metric | C8, C9, C17, C18, C19, C20, C22, C23 +17 |
| 2 | GCM32ER71C226ME19L | C_1210_3225Metric | C10, C11 |
| 1 | VJ0402A100GXJCW1BC | C_0402_1005Metric | C12 |
| 2 | GCM21BR70J106KE22K | C_0805_2012Metric | C21, C29 |
| 3 | GCM155R71H104KE02J | C_0402_1005Metric | C30, C33, C35 |
| 3 | GCM155R71H102KA37D | C_0402_1005Metric | C31, C32, C34 |
| 4 | TCJB157M006R0070 | [C] Kyocera AVC Tant Poly TCJB157M006R0070 | C40, C41, C44, C46 |
| 1 | CRCW040215K0FKED 15K | R_0402_1005Metric | R1 |
| 1 | CRCW040247K0FKED 47K | R_0402_1005Metric | R2 |
| 1 | CRCW040295K3FKED 95K3 | R_0402_1005Metric | R3 |
| 1 | CRCW04026K34FKEDC 6K34 | R_0402_1005Metric | R4 |
| 1 | CRCW04024R70FNED 4R7 | R_0402_1005Metric | R5 |
| 1 | TNPW040256K2BEED 56K2 | R_0402_1005Metric | R6 |
| 1 | TNPW04021K00BEED 1K | R_0402_1005Metric | R7 |
| 1 | TNPW040213K7BEED 13K7 | R_0402_1005Metric | R8 |
| 1 | RCC04027K50FKED 7K5 | R_0402_1005Metric | R9 |
| 1 | CRCW040212K7FKED 12K7 | R_0402_1005Metric | R10 |
| 5 | CRCW040210K0FKEDC 10K | R_0402_1005Metric | R11, R29, R30, R31, R32 |
| 1 | CRCW040226K7FKED 26K7 | R_0402_1005Metric | R12 |
| 1 | CRCW040210K2FKED 10K2 | R_0402_1005Metric | R13 |
| 1 | TNPW040290K9BEED 90K9 | R_0402_1005Metric | R14 |
| 1 | TNPW040210K0BEED 10K | R_0402_1005Metric | R15 |
| 8 | CRCW04024K70FKEDC 4K7 | R_0402_1005Metric | R16, R17, R21, R22, R23, R24, R26, R27 |
| 3 | CRCW04021M00FKED 1M | R_0402_1005Metric | R18, R19, R20 |
| 1 | TNPW04029K53BEED 9K53 | R_0402_1005Metric | R25 |
| 2 | TNPW040225K5BEED 25K5 | R_0402_1005Metric | R28, R33 |
| 2 | CRCW04023K90FKED 3K9 | R_0402_1005Metric | R34, R35 |
1026-RPi-Power-Hat design files
The KiCad project lives in the wilsondr9999/1026-RPi-Power-Hat repository on GitHub; these links point at the commit this page was built from.
1026-RPi-Power-Hat: common questions
How big is the 1026-RPi-Power-Hat?
The 1026-RPi-Power-Hat measures 85 × 56.5 mm, has 4 copper layers and is 1.54178 mm thick.
How many components are on the 1026-RPi-Power-Hat?
121 components, from 55 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 1026-RPi-Power-Hat design files?
From the wilsondr9999/1026-RPi-Power-Hat repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 1026-RPi-Power-Hat design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which wilsondr9999 chose for the repository.
