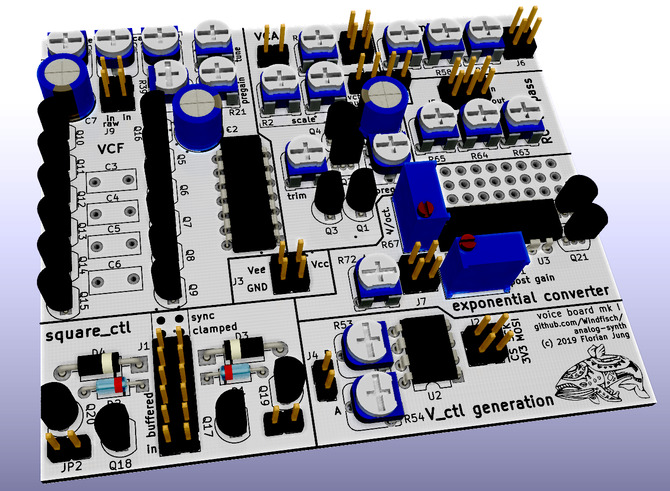

Voice board layout, top view — open source board by Windfisch

About the Voice board

Voice board is an open source PCB design by Windfisch, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 83.8 × 72.4 mm, with 127 components from 42 distinct parts.

Other key parts include the TL074, MCP4822 and LM324. By type, the board carries 69 resistors, 22 transistors, 16 capacitors, 10 connectors, 4 diodes and 3 ICs.

It belongs with the audio designs in this gallery.

From the project

A low-cost semimodular analog synthesizer

This board offers various utility features for a two-VCO-voice. It is designed to be used together with two ../vco_mk1/ and offers the following features:

- voltage controlled filter - voltage controlled amplifier - simple mixer - 2x square_ctl signal processing (buffering, sync pulse generation, clamping, which are missing from the VCO mk I board) - an expo converter (to be used as VCF input) - a 2-channel MCP4822 DAC for VCO control voltage generation - three general-purpose RC low pass filters

Voice board, from the project README
From the project README

Main components on the Voice board

TL074MCP4822LM324

Voice board bill of materials (BOM)

127 components, 42 distinct parts.
