Lightwolf PCB layout, top view — open source RP2040/RP2350 board by wolf-yuan-6115

About the Lightwolf PCB

Lightwolf is an open source RP2040/RP2350 PCB design by wolf-yuan-6115, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 21 × 51 mm, with 46 components from 23 distinct parts.

Its main chip is the RP2350A_C42411118, from the RP2040/RP2350 family. Other key parts include the ABM8-272-T3_C20625731, 0603L100SLYR and W25Q64JVSSIQ_C179171. By type, the board carries 19 capacitors, 13 resistors, 5 diodes, 4 ICs, 1 transistor and 1 inductor.

From the project

LightWolf is a recreate version of Raspberry Pi Pico development board created by me. It's used to experiment with PCB designing and electronics.

LightWolf is a recreate version of Raspberry Pi Pico development board created by me. It's used to experiment with PCB designing and electronics.

Currently, LightWolf comes with following vairants: - LightWolf 2350 (/2350): Raspberry Pi RP2350 based development board with 4 MB of flash, USB C connector, a bunch of GPIO pins and 3 user LEDs.

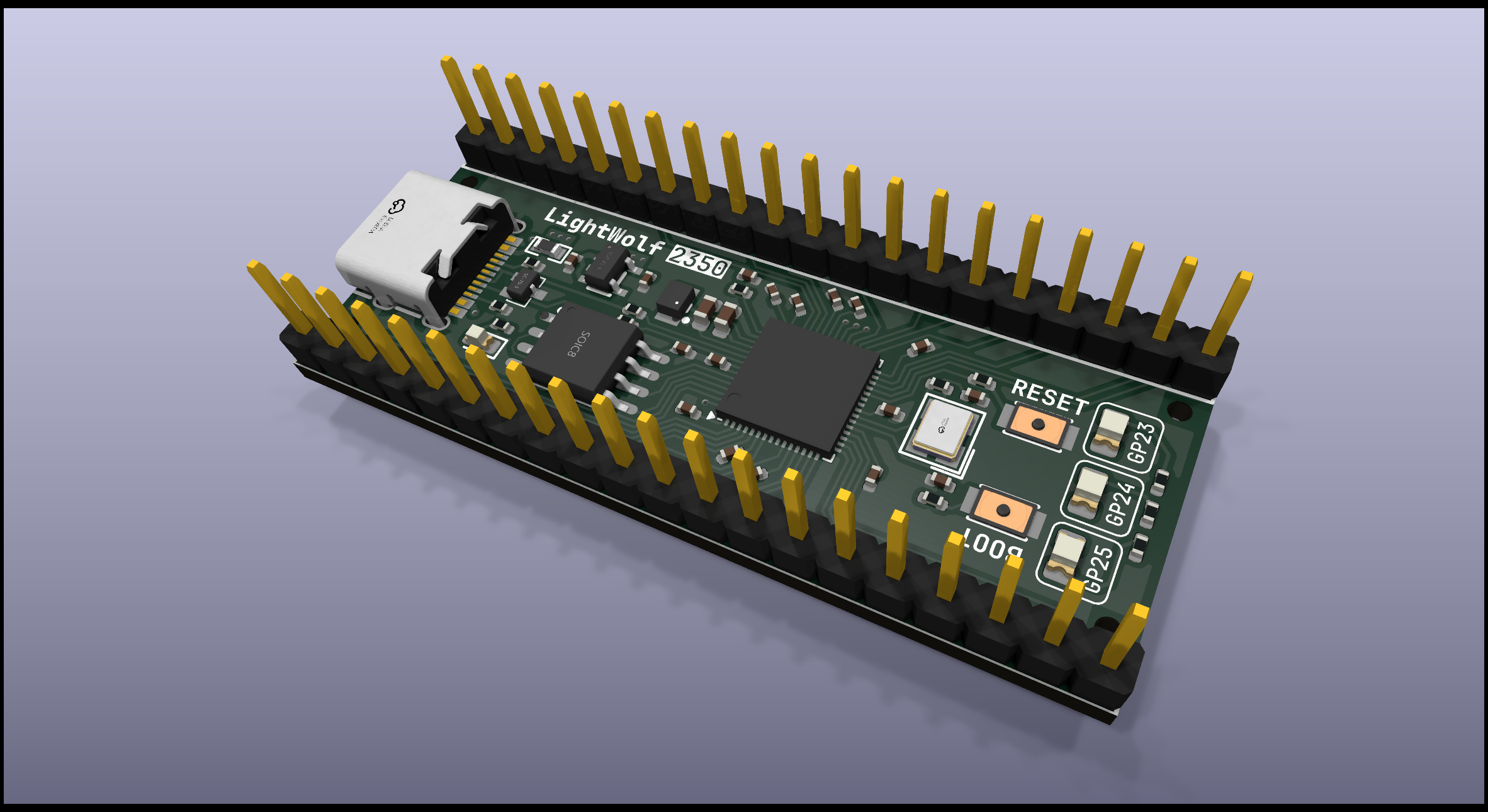

Lightwolf, from the project README
From the project README

Main components on the Lightwolf

ABM8-272-T3_C206257310603L100SLYRW25Q64JVSSIQ_C179171RP2350A_C42411118

Lightwolf bill of materials (BOM)

46 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ABM8-272-T3_C20625731
U1
1
0603L100SLYR
U2
1
W25Q64JVSSIQ_C179171
U3
1
RP2350A_C42411118
U4
1
XC6220B331MR-G
Q1
2
1TS015A-1400-0600-CT
BOOT1, RESET1
1
TYPE-C-31-M-12
USBC1
1
TPD2E2U06DCKR
D1
1
C2290
White
Hubei KENTO Elec
D2
1
C2296
Yellow
Hubei KENTO Elec
D3
2
C2297
Green
Hubei KENTO Elec
D4, D5
1
AOTA-B201610S3R3-101-T
L1
1
470NF
470nF
Samsung Electro-Mechanics
C1
11
100NF
100nF
Samsung Electro-Mechanics
C2, C3, C4, C5, C6, C7, C8, C13 +3
2
10UF
10uF
Samsung Electro-Mechanics
C9, C12
2
15PF
15pF
FH(Guangdong Fenghua Advanced Tech)
C10, C11
2
4.7UF
4.7uF
Samsung Electro-Mechanics
C17, C18
1
4.7UF
4.7uF
Samsung Electro-Mechanics
C19
2
1kΩ
UNI-ROYAL(Uniroyal Elec)
R1, R8
2
5.1kΩ
UNI-ROYAL(Uniroyal Elec)
R2, R3
Show 3 more
QtyPartRefs
4
470Ω
UNI-ROYAL(Uniroyal Elec)
R4, R10, R11, R12
2
10kΩ
UNI-ROYAL(Uniroyal Elec)
R5, R13
3
33Ω
UNI-ROYAL(Uniroyal Elec)
R6, R7, R9

Lightwolf design files

The KiCad project lives in the wolf-yuan-6115/lightwolf repository on GitHub; these links point at the commit this page was built from.

Lightwolf: common questions

What microcontroller does the Lightwolf use?

The Lightwolf is built around the RP2350A_C42411118, from the RP2040/RP2350 family.

How big is the Lightwolf PCB?

The Lightwolf measures 21 × 51 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Lightwolf?

46 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lightwolf design files?

From the wolf-yuan-6115/lightwolf repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Lightwolf design in my own project?

Yes, under the terms of its GPL-3.0 license, which wolf-yuan-6115 chose for the repository.

Can I test firmware for the Lightwolf without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
