About the PicoStation3D PCB

PicoStation3D is an open source RP2040/RP2350 PCB design by Wren6991, published on GitHub under the CC0-1.0 license. It is a 4-layer board measuring 100 × 50 mm, with 74 components from 24 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP115ASN330, W25Q128JV, iCE40UP5k-QFN48 and S70KS128. By type, the board carries 31 capacitors, 26 resistors, 7 connectors, 5 ICs, 2 switches and 2 diodes.

From the project

3D games console based on RP2040 and iCE40 UP5k

This is an unfinished, untested project to develop a 3D games console based on an RP2040 microcontroller and an iCE40 UP5k FPGA. Quick links:

- Board Schematic (PDF) - RP2040 Datasheet (PDF) - FPGA Datasheet (PDF)

From left to right, the components on the top edge are:

- A 3.5mm TRS audio jack, connected straight to RP2040 GPIOs via an RC filter (no separate audio supply on this board rev) - A status LED for the RP2040 - A micro SD receptacle connected to the RP2040 - A micro USB socket providing power to the board, and code download and serial comms via the RP2040 - A status LED for the…

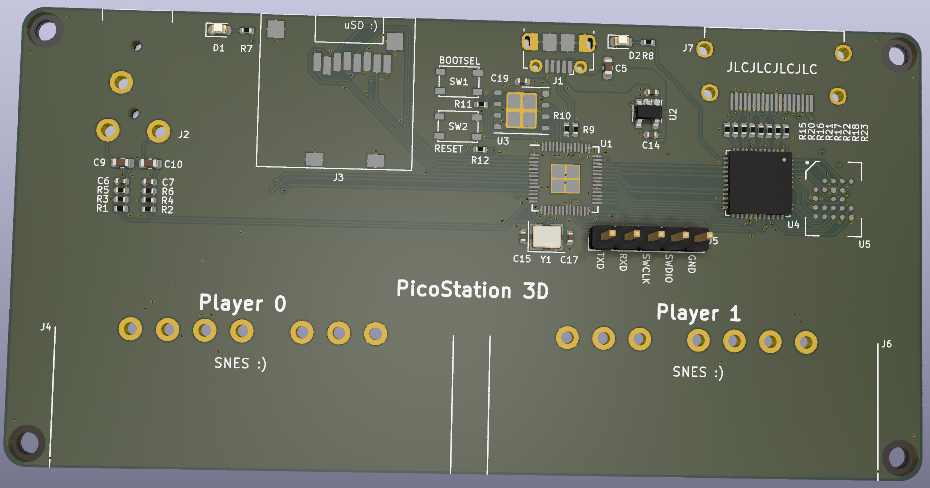

PicoStation3D, from the project README — From the project README

Main components on the PicoStation3D

RP2040 NCP115ASN330 W25Q128JViCE40UP5k-QFN48S70KS128

PicoStation3D bill of materials (BOM)

74 components, 24 distinct parts.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56_EP_7x7_Pitch0.4mm	U1
1	NCP115ASN330	SOT-23-5	U2
1	W25Q128JV	WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4mm	U3
1	iCE40UP5k-QFN48	QFN-48-1EP_7x7mm_P0.5mm_EP5.3x5.3mm	U4
1	S70KS128	S70KS128	U5
1	RH100-12.000	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	USB_B_Micro	USB_Micro-B_Molex-105017-0001	J1
1	AudioJack3	STX-3000-TRS	J2
1	Micro_SD_Card	MEM2061-MICRO-SD	J3
1	SNES	SNES-Controller-Right	J4
1	Conn_01x05	PinHeader_1x05_P2.54mm_Vertical	J5
1	SNES	SNES-Controller-Left	J6
1	NOT_HDMI_A	HDMI-SS-53000	J7
2	PTS815	SW_SPST_PTS815	SW1, SW2
2	LED	LED_0603_1608Metric	D1, D2
7	1u	C_0402_1005Metric	C1, C2, C12, C14, C16, C18, C20
18	100n	C_0402_1005Metric	C3, C4, C6, C7, C8, C11, C13, C19 +10
4	10u	C_0603_1608Metric	C5, C9, C10, C27
2	10p	C_0402_1005Metric	C15, C17
15	270	R_0402_1005Metric	R1, R2, R3, R4, R5, R6, R15, R16 +7

Show 4 more

Qty	Part	Footprint	Refs
7	2k2	R_0402_1005Metric	R7, R8, R11, R13, R14, R19, R26
2	27	R_0402_1005Metric	R9, R10
1	NF	R_0402_1005Metric	R12
1	100	R_0402_1005Metric	R25

PicoStation3D design files

The KiCad project lives in the Wren6991/PicoStation3D repository on GitHub; these links point at the commit this page was built from.

Layoutboard/picostation.kicad_pcb

PicoStation3D: common questions

What microcontroller does the PicoStation3D use?

The PicoStation3D is built around the RP2040, from the RP2040/RP2350 family.

How big is the PicoStation3D PCB?

The PicoStation3D measures 100 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the PicoStation3D?

74 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the PicoStation3D design files?

From the Wren6991/PicoStation3D repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PicoStation3D design in my own project?

Yes, under the terms of its CC0-1.0 license, which Wren6991 chose for the repository.
