Vut arcar

wykys·vut-arcar·hw/arcar.kicad_pcb

Vut arcar PCB layout, top view — open source AVR/Arduino board by wykys
Simulate this board

About the Vut arcar PCB

Vut arcar is an open source AVR/Arduino PCB design by wykys, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 36 mm, with 53 components from 25 distinct parts.

Its main chip is the ATMEGA328PB-AU, from the AVR/Arduino family. Other key parts include the USBLC6-2SC6, CP2102, ULN2003A, LSM9DS1 and TLE52062GAUMA1. By type, the board carries 19 capacitors, 10 resistors, 9 diodes, 8 ICs, 4 connectors and 2 modules.

From the project

VUT UREL Autonomous Racing Car

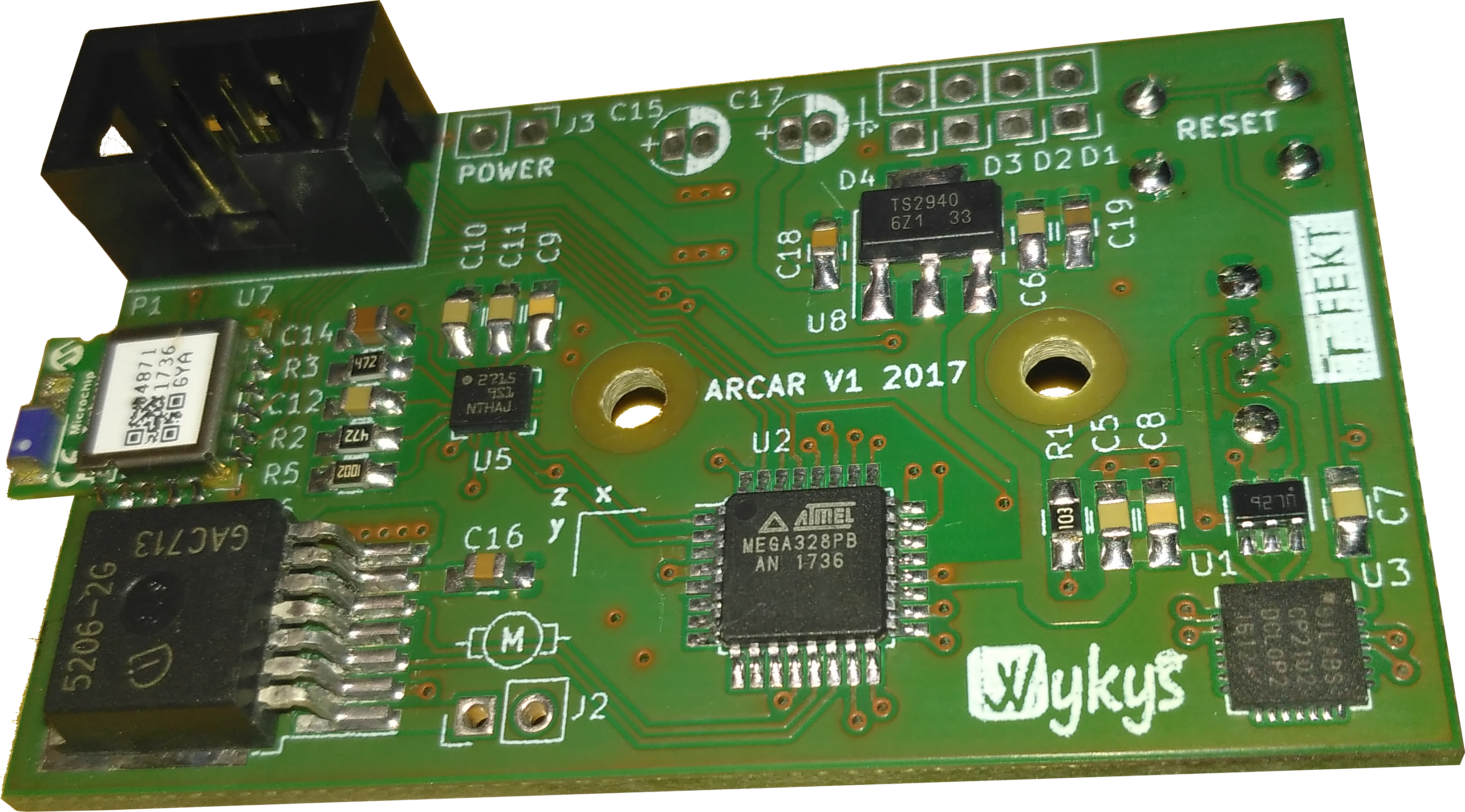

Vut arcar, from the project README
From the project README

Main components on the Vut arcar

USBLC6-2SC6ATMEGA328PB-AUCP2102ULN2003ALSM9DS1TLE52062GAUMA1RN4871MCP1804T-3302I/DB

Vut arcar bill of materials (BOM)

53 components, 25 distinct parts.

QtyPartRefs
1
USBLC6-2SC6
U1
1
ATMEGA328PB-AU
U2
1
CP2102
U3
1
ULN2003A
U4
1
LSM9DS1
U5
1
TLE52062GAUMA1
U6
1
RN4871
U7
1
MCP1804T-3302I/DB
U8
2
screw
M1, M2
1
USB_B_Micro
J1
1
MOTOR
J2
1
POWER
J3
1
AVR_ISP_02X03
P1
1
SW_Push
SW1
4
LED
D1, D2, D3, D4
5
SK32SMA
D5, D6, D7, D8, D9
11
100n
C1, C2, C3, C4, C5, C6, C7, C10 +3
2
10n
C8, C9
1
10u
C14
2
4700u/35V
C15, C17
Show 5 more
QtyPartRefs
1
470n
C16
2
1u/50V
C18, C19
4
10k
R1, R4, R5, R9
2
4k7
R2, R3
4
1k
R6, R7, R8, R10

Vut arcar design files

The KiCad project lives in the wykys/vut-arcar repository on GitHub; these links point at the commit this page was built from.

Vut arcar: common questions

What microcontroller does the Vut arcar use?

The Vut arcar is built around the ATMEGA328PB-AU, from the AVR/Arduino family.

How big is the Vut arcar PCB?

The Vut arcar measures 60 × 36 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vut arcar?

53 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Vut arcar design files?

From the wykys/vut-arcar repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Vut arcar design in my own project?

Yes, under the terms of its MIT license, which wykys chose for the repository.

Can I test firmware for the Vut arcar without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
