About the 2063-Z80 PCB

2063-Z80 is an open source PCB design by Z80-Retro, published on GitHub. It is a 4-layer board measuring 100 × 100 mm, with 78 components from 40 distinct parts.

Other key parts include the Z80-CPU, AS6C4008-55PCN, SST39SF010, Z80-CTC and Z80-SIO-0. By type, the board carries 24 capacitors, 21 resistors, 14 ICs, 12 connectors, 3 diodes and 2 crystals.

It belongs with the retro computing designs in this gallery.

From the project

Retro Z80 CPU Board

This project was designed to run CP/M 2.2 from an SD card. It should be an attainable goal for anyone that can solder through-hole parts to assemble it. Note that J10 is an optional header that allows a Sparkfun SD card breakout board DEV-13743 to used instead of soldering on the surface-mount SD socket part.

Here is an easy-to-find direct link to the PDF of the schematic for a quick view.

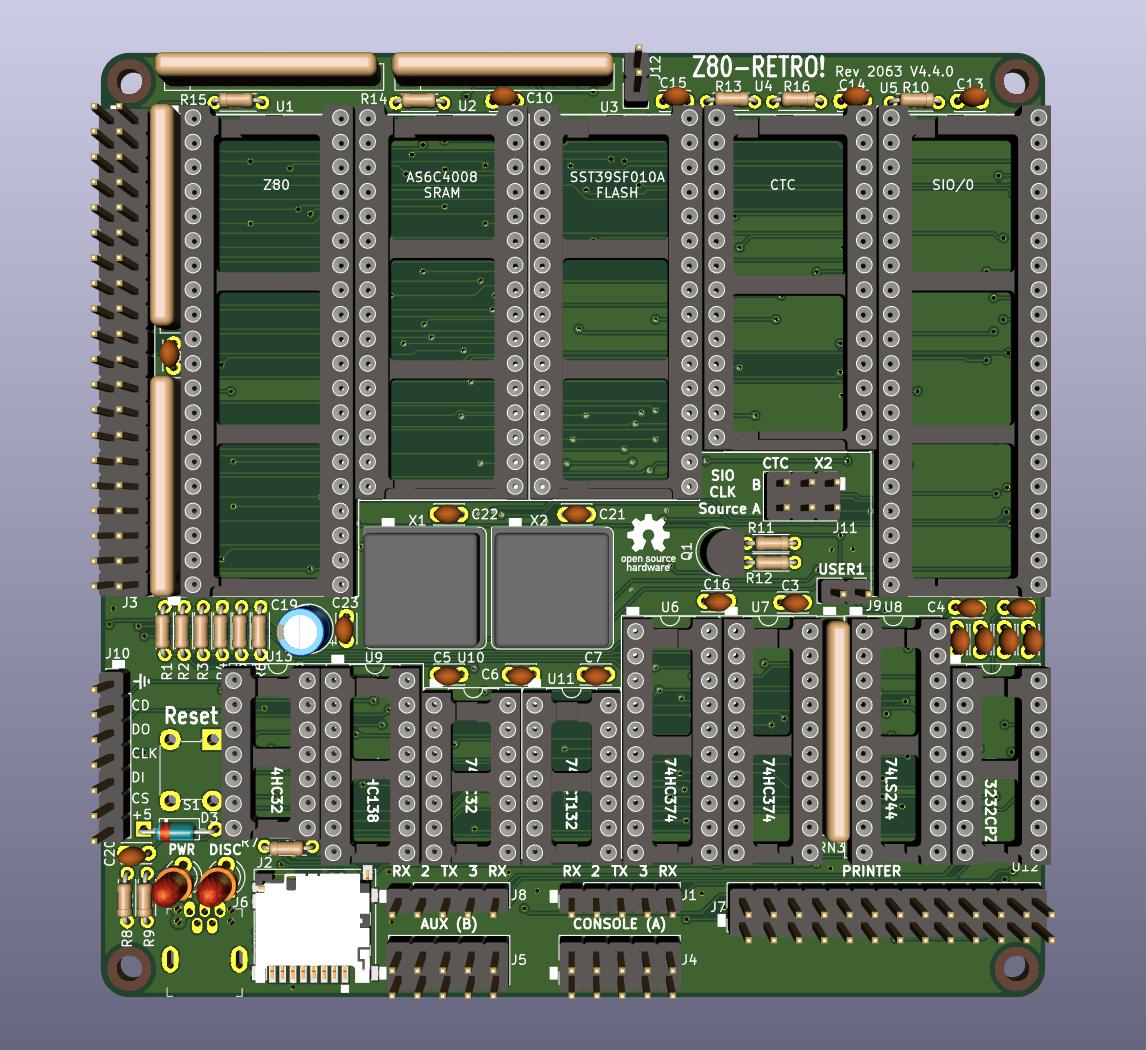

2063-Z80, from the project README
From the project README

Main components on the 2063-Z80

Z80-CPUAS6C4008-55PCNSST39SF010Z80-CTCZ80-SIO-074HC37474LS24474HC13874HC3274HCT132ICL3232CPZLM1117-3.3

2063-Z80 bill of materials (BOM)

78 components, 40 distinct parts.

QtyPartRefs
1
Z80-CPU
U1
1
AS6C4008-55PCN
U2
1
SST39SF010
U3
1
Z80-CTC
U4
1
Z80-SIO-0
U5
2
74HC374
U6, U7
1
74LS244
U8
1
74HC138
U9
2
74HC32
U10, U13
1
74HCT132
U11
1
ICL3232CPZ
U12
1
LM1117-3.3
U20
1
PN2222
Q1
1
ACH-10.000MHZ-EK
X1
1
ECS-2100A-018
X2
2
Conn_01x05
J1, J8
1
DM3D-SF(41)
J2
1
Conn_02x20
J3
2
Conn_02x05
J4, J5
1
0548190519
J6
Show 20 more
QtyPartRefs
1
Conn_02x13
J7
2
Conn_01x02
J9, J12
1
Conn_01x07
J10
1
Conn_02x03
J11
1
1825910-6
S1
2
LED_ALT
D1, D2
1
1N914
D3
4
.47
C1, C11, C12, C20
16
.1
C2, C3, C4, C5, C6, C7, C8, C9 +8
1
.1
C17
1
10uF
C18
1
10uF
C19
1
.1
C24
3
2K7
R1, R3, R5
3
4K7
R2, R4, R6
4
10K
R7, R10, R13, R14
2
680
R8, R9
2
1K
R11, R12
2
120
R15, R16
5
10K
RN1, RN2, RN3, RN4, RN5

2063-Z80 design files

The KiCad project lives in the Z80-Retro/2063-Z80 repository on GitHub; these links point at the commit this page was built from.

2063-Z80: common questions

How big is the 2063-Z80 PCB?

The 2063-Z80 measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the 2063-Z80?

78 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the 2063-Z80 design files?

From the Z80-Retro/2063-Z80 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 2063-Z80 design in my own project?

The repository has no license, so all rights stay with Z80-Retro. Use it as a reference, and ask the author before reusing the design.
