Synth Labs 065 Hotswap RGB
About the Synth Labs 065 Hotswap RGB PCB
Synth Labs 065 Hotswap RGB is an open source RP2040/RP2350 PCB design by 0xCB-dev, published on GitHub under the Custom license license. It is a 2-layer board measuring 305.1 × 95.5 mm, with 228 components from 38 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q32JVUUIQ, USBLC6-2P6, SN74LVC1T45DRLR and TLV75533PDQNR. By type, the board carries 120 diodes, 24 capacitors, 7 resistors, 5 ICs, 2 inductors and 1 crystal.
It belongs with the keyboards and audio designs in this gallery.
From the project
Synth Labs 065 65% Keyboard PCB files
Licence | OSHWA :-------------------------:|:-------------------------: | TBD

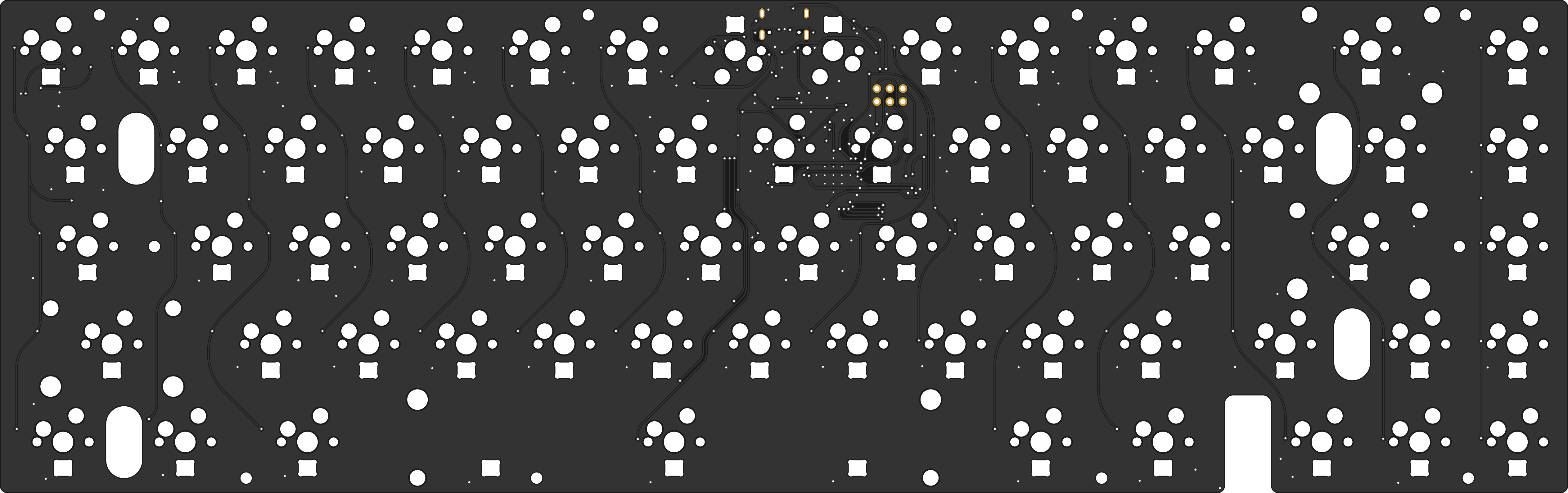

Top | Bottom :-------------------------:|:-------------------------: |
Main components on the Synth Labs 065 Hotswap RGB
Synth Labs 065 Hotswap RGB bill of materials (BOM)
228 components, 38 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W25Q32JVUUIQ Winbond | W25Q32JVUUIQ | U1 |
| 1 | USBLC6-2P6 TECH PUBLIC | SOT-666 | U2 |
| 1 | RP2040 Raspberry Pi | QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm | U6 |
| 1 | SN74LVC1T45DRLR 74LVC1T45 Texas Instruments | SOT-563 | U7 |
| 1 | TLV75533PDQNR Texas Instruments | X2SON-4 | U8 |
| 1 | 2TJ412000HYGBC 12MHz JYJE | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y2 |
| 1 | USB4120-03-C | GCT_USB4105_REVA | J2 |
| 1 | C70156 3A | Fuse_0805_2012Metric | F1 |
| 1 | C5156480 esc | SW_Hotswap_Kailh_1.00u | MX1 |
| 48 | C5156480 MX | SW_Hotswap_Kailh_1.00u | MX2, MX3, MX4, MX5, MX6, MX7, MX8, MX9 +40 |
| 1 | 0 | SW_Hotswap_Kailh_1.00u | MX11 |
| 1 | C5156480 bkspc | SW_Hotswap_Kailh_2.00u | MX14 |
| 2 | C5156480 MX | SW_Hotswap_Kailh_1.50u | MX16, MX29 |
| 1 | C5156480 MX | SW_Hotswap_Kailh_1.75u | MX31 |
| 2 | C5156480 MX | SW_Hotswap_Kailh_2.25u | MX43, MX45 |
| 1 | C5156480 shft | SW_Hotswap_Kailh_1.75u | MX56 |
| 1 | C5156480 up | SW_Hotswap_Kailh_1.00u | MX57 |
| 5 | C5156480 MX | SW_Hotswap_Kailh_1.25u | MX59, MX60, MX61, MX63, MX64 |
| 1 | C5156480 MX | SW_Hotswap_Kailh_6.25u | MX62 |
| 2 | C5156480 lft | SW_Hotswap_Kailh_1.00u | MX65, MX67 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C5156480 dwn | SW_Hotswap_Kailh_1.00u | MX66 |
| 14 | SK6812MINI-HS | SK6812MINI-HS | D1, D2, D3, D4, D5, D6, D7, D8 +6 |
| 69 | SK6812MINI-E | MX_SK6812MINI-E | D15, D16, D17, D18, D19, D20, D21, D22 +61 |
| 36 | BAV70 | SOT-23 | D84, D85, D86, D87, D88, D89, D90, D91 +28 |
| 1 | SMF5.0CA | D_SOD-123F | D120 |
| 2 | 600R | C_0201_0603Metric | FB1, FB2 |
| 14 | CL05B104KO5NNNC 100n Samsung Electro-Mechanics | C_0201_0603Metric | C1, C11, C12, C13, C14, C27, C28, C29 +6 |
| 2 | CL05A105KA5NQNC 100n Samsung Electro-Mechanics | C_0201_0603Metric | C9, C10 |
| 1 | CL05B104KO5NNNC 10u Samsung Electro-Mechanics | C_0402_1005Metric | C15 |
| 1 | CL05B104KO5NNNC 1u Samsung Electro-Mechanics | C_0201_0603Metric | C16 |
| 2 | 0402CG150J500NT 15p FH(Guangdong Fenghua Advanced Tech) | C_0201_0603Metric | C23, C24 |
| 2 | CL05A105KA5NQNC 1u Samsung Electro-Mechanics | C_0201_0603Metric | C25, C26 |
| 2 | CL05A106MQ5NUNC 10u Samsung Electro-Mechanics | C_0402_1005Metric | C39, C40 |
| 2 | 0402WGF270JTCE 27R UNI-ROYAL(Uniroyal Elec) | R_0201_0603Metric | R1, R2 |
| 1 | 0402WGF1001TCE 5k1 UNI-ROYAL(Uniroyal Elec) | R_0201_0603Metric | R3 |
| 1 | 5K1 5k1 | R_0201_0603Metric | R4 |
| 2 | 0402WGF1001TCE 1k UNI-ROYAL(Uniroyal Elec) | R_0201_0603Metric | R5, R20 |
| 1 | 0402WGF1002TCE 10k UNI-ROYAL(Uniroyal Elec) | R_0201_0603Metric | R17 |
Synth Labs 065 Hotswap RGB design files
The KiCad project lives in the 0xCB-dev/SL-065-PCB repository on GitHub; these links point at the commit this page was built from.
Synth Labs 065 Hotswap RGB: common questions
What microcontroller does the Synth Labs 065 Hotswap RGB use?
The Synth Labs 065 Hotswap RGB is built around the RP2040, from the RP2040/RP2350 family.
How big is the Synth Labs 065 Hotswap RGB PCB?
The Synth Labs 065 Hotswap RGB measures 305.1 × 95.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Synth Labs 065 Hotswap RGB?
228 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Synth Labs 065 Hotswap RGB design files?
From the 0xCB-dev/SL-065-PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Synth Labs 065 Hotswap RGB design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Synth Labs 065 Hotswap RGB without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
