M4 CAN Feather Carrier v6

2468shrm·M4_CAN_Feather_Carrier_v6

M4 CAN Feather Carrier v6 PCB layout, top view — open source board by 2468shrm

About the M4 CAN Feather Carrier v6 PCB

M4 CAN Feather Carrier v6 is an open source PCB design by 2468shrm, published on GitHub. It is a 4-layer board measuring 70.5 × 79.5 mm, with 61 components from 34 distinct parts.

Other key parts include the 74LVC2G17GV,125, LMR33630BDDA, Feather_M4_CAN_Express, TXS0104EPW and LMV324AIDR. By type, the board carries 18 capacitors, 11 resistors, 9 ICs, 9 diodes, 7 connectors and 4 crystals.

It belongs with the dev boards & breakouts and sensors designs in this gallery.

From the project

Sixth version of the M4 Feather CAN Express carrier board. Hopefully, "the last".

The promise of the platform isn't that one can hook a single sensor to the platform and send the sendor value over CAN. There are many examples of awesome dedicated circuits that perform functions like these that would result in a smaller solution (e.g. Grapple Robotics LaserCAN is a CAN-connected Time-of-Flight sensor). Rather, the platform enables creative combination of sensors and application-specific processing in an off-roboRIO accelerator. Moreover, the platform provides a great opportunity to start an embedded journey.

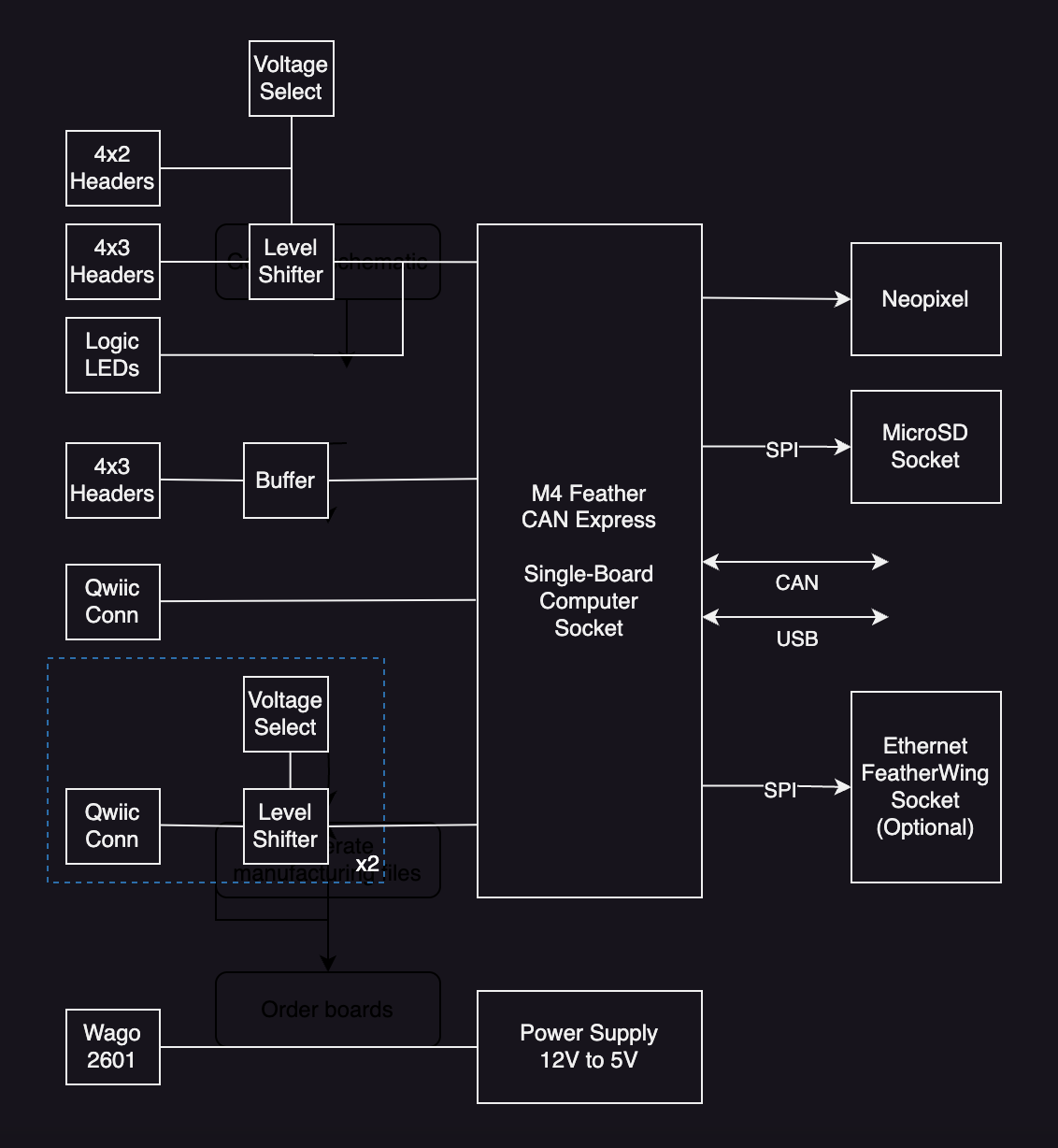

M4 CAN Feather Carrier v6, from the project README
From the project README

Main components on the M4 CAN Feather Carrier v6

74LVC2G17GV,125LMR33630BDDAFeather_M4_CAN_ExpressTXS0104EPWLMV324AIDR74HC14TXS0102DCU

M4 CAN Feather Carrier v6 bill of materials (BOM)

61 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74LVC2G17GV,125
IC1
1
LMR33630BDDA
U1
2
Feather_M4_CAN_Express
U2, U6
1
TXS0104EPW
U3
1
LMV324AIDR
U4
1
74HC14
U5
2
TXS0102DCU
U7, U8
3
STEMMA_I2C_QT
X1, X2, X4
1
104031-0811
X3
1
2601-3102
J1
1
2601-3103
J2
2
conn_04_03
J3, J7
1
Conn_02x04_Odd_Even
J4
1
Conn_01x03
J5
1
Conn_01x02
J6
2
SSSS811101
S1, S2
7
LED
D1, D2, D3, D4, D8, D102, D103
2
SS54
D6, D101
1
ASPI-0804T-150M-T
FXL0630-3R3-M
L1
2
470U
470u
C1, C26
Show 14 more
QtyPartRefs
2
10UF
10uF
C2, C10
1
220NF
220nF
C3
1
1UF
1uF
C4
2
100NF
100nF
C5, C9
1
6.8PF
6.8pF
C6
2
22UF
22uF
C7, C8
5
0.1U
0.1u
C11, C20, C21, C22, C23
2
10U
10u
C24, C25
5
220
R1, R2, R3, R4, R7
1
4K7
R6
2
100K
100k
R101, R103
1
24.9K
24.9k
R102
1
470
R104
1
1K5
R105

M4 CAN Feather Carrier v6 design files

The KiCad project lives in the 2468shrm/M4_CAN_Feather_Carrier_v6 repository on GitHub; these links point at the commit this page was built from.

M4 CAN Feather Carrier v6: common questions

How big is the M4 CAN Feather Carrier v6 PCB?

The M4 CAN Feather Carrier v6 measures 70.5 × 79.5 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the M4 CAN Feather Carrier v6?

61 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the M4 CAN Feather Carrier v6 design files?

From the 2468shrm/M4_CAN_Feather_Carrier_v6 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the M4 CAN Feather Carrier v6 design in my own project?

The repository has no license, so all rights stay with 2468shrm. Use it as a reference, and ask the author before reusing the design.
