ESP32-C6-WROOM-1 Dev Board
About the ESP32-C6-WROOM-1 Dev Board
ESP32-C6-WROOM-1 Dev Board is an open source ESP32 PCB design by 74th, published on GitHub under the MIT license. It is a 2-layer board measuring 25.4 × 36.8 mm, with 22 components from 17 distinct parts.
Its main chip is the ESP32-C3-MINI-1, from the ESP32 family. Other key parts include the AMS1117-3.3. By type, the board carries 8 resistors, 4 capacitors, 2 ICs, 2 connectors, 2 switches and 2 diodes.
It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.

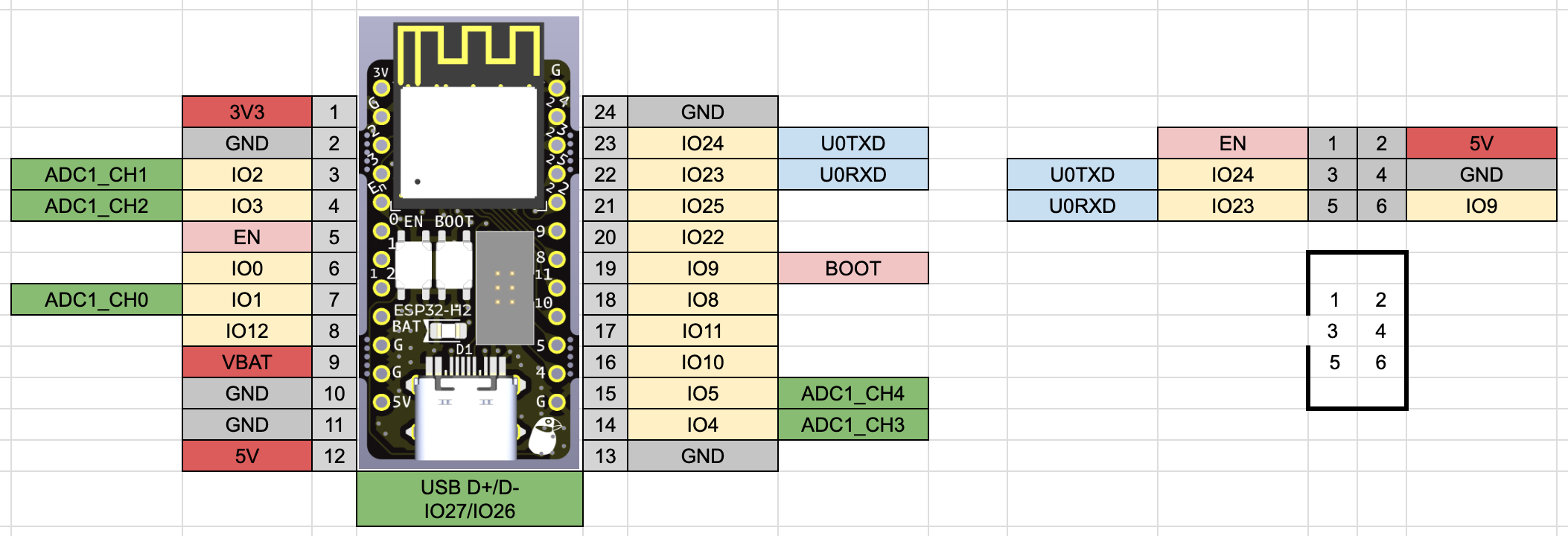

From the project
ESP32 Dev Boards PCB
- 10 ピンブレッドボードに挿しても、左右 1 ピン空いている - ESP-Prog の USB シリアル変換のボックスピンヘッダを持つ - USB Type-C をもつ
BOOTH でモジュール付きキットを販売中です。 https://74th.booth.pm/items/5777580
Main components on the ESP32-C6-WROOM-1 Dev Board
ESP32-C6-WROOM-1 Dev Board bill of materials (BOM)
22 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-C3-MINI-1 ESP32-C6-WROOM-1 | ESP32-C6-WROOM-1 | U1 |
| 1 | AMS1117-3.3 AMS1117 | SOT-223-3_TabPin2 | U2 |
| 1 | ESP-Prog-ProgramCOM_RECV | Connector_BoxPinHeader_2x03_P1.27mm | J1 |
| 1 | USB2.0-C_SMT | Connector_USB-C-Receptacle_SMT_12-Pin_Simple | J2 |
| 2 | Pin_13 | PinOut_Pin_13 | CH1, CH2 |
| 2 | SKRPABE010 SW_Push | Switch_SKRPABE010 | SW1, SW2 |
| 1 | PMEG2010ER,115 | Package_SOD123W | D1 |
| 1 | Blue | LED_0805_2012 | D2 |
| 1 | 10U 22u | Capacitor_0805_2012 | C1 |
| 1 | 10U 10u | Capacitor_0805_2012 | C2 |
| 1 | 100N 10u | Capacitor_0805_2012 | C3 |
| 1 | 100N 1u | Capacitor_0805_2012 | C4 |
| 2 | 5.1K 10k | Register_0805_2012 | R1, R6 |
| 2 | 10K 27 | Register_0805_2012 | R2, R3 |
| 1 | 5.1K 5.1k | Register_0805_2012 | R4 |
| 1 | 10K 5.1k | Register_0805_2012 | R5 |
| 2 | 10k | Register_0805_2012 | R7, R8 |
ESP32-C6-WROOM-1 Dev Board design files
The KiCad project lives in the 74th/esp32-dev-boards repository on GitHub; these links point at the commit this page was built from.
ESP32-C6-WROOM-1 Dev Board: common questions
What microcontroller does the ESP32-C6-WROOM-1 Dev Board use?
The ESP32-C6-WROOM-1 Dev Board is built around the ESP32-C3-MINI-1, from the ESP32 family.
How big is the ESP32-C6-WROOM-1 Dev Board?
The ESP32-C6-WROOM-1 Dev Board measures 25.4 × 36.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP32-C6-WROOM-1 Dev Board?
22 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESP32-C6-WROOM-1 Dev Board design files?
From the 74th/esp32-dev-boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ESP32-C6-WROOM-1 Dev Board design in my own project?
Yes, under the terms of its MIT license, which 74th chose for the repository.
Can I test firmware for the ESP32-C6-WROOM-1 Dev Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
