Bt nes advantage

aaronperkins·bt-nes-advantage·pcb/bt-nes-advantage.kicad_pcb

Bt nes advantage PCB layout, top view — open source ESP32 board by aaronperkins

About the Bt nes advantage PCB

Bt nes advantage is an open source ESP32 PCB design by aaronperkins, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 78 × 36 mm, with 26 components from 15 distinct parts.

Its main chip is the ESP32-C3_SUPERMINI_TH, from the ESP32 family. Other key parts include the TP4057 and TPS613222ADBV. By type, the board carries 10 resistors, 6 diodes, 3 ICs, 3 connectors, 3 capacitors and 1 inductor.

It belongs with the iot & wireless and retro computing designs in this gallery.

From the project

A integrated Bluetooth adapter for the NES Advantage (NES-026)

Integrated Bluetooth adapter for the NES Advantage (NES-026)

To change profiles, hold A + B + Up for 5 seconds. The red LED will blink to indicate the current profile (1 blink = Profile 1, 2 blinks = Profile 2).

To change directional modes, hold Down + A + B for 5 seconds. The red LED will blink to indicate the current mode (1 blink = D-Pad Only, 2 blinks = Axes Only, 3 blinks = Both).

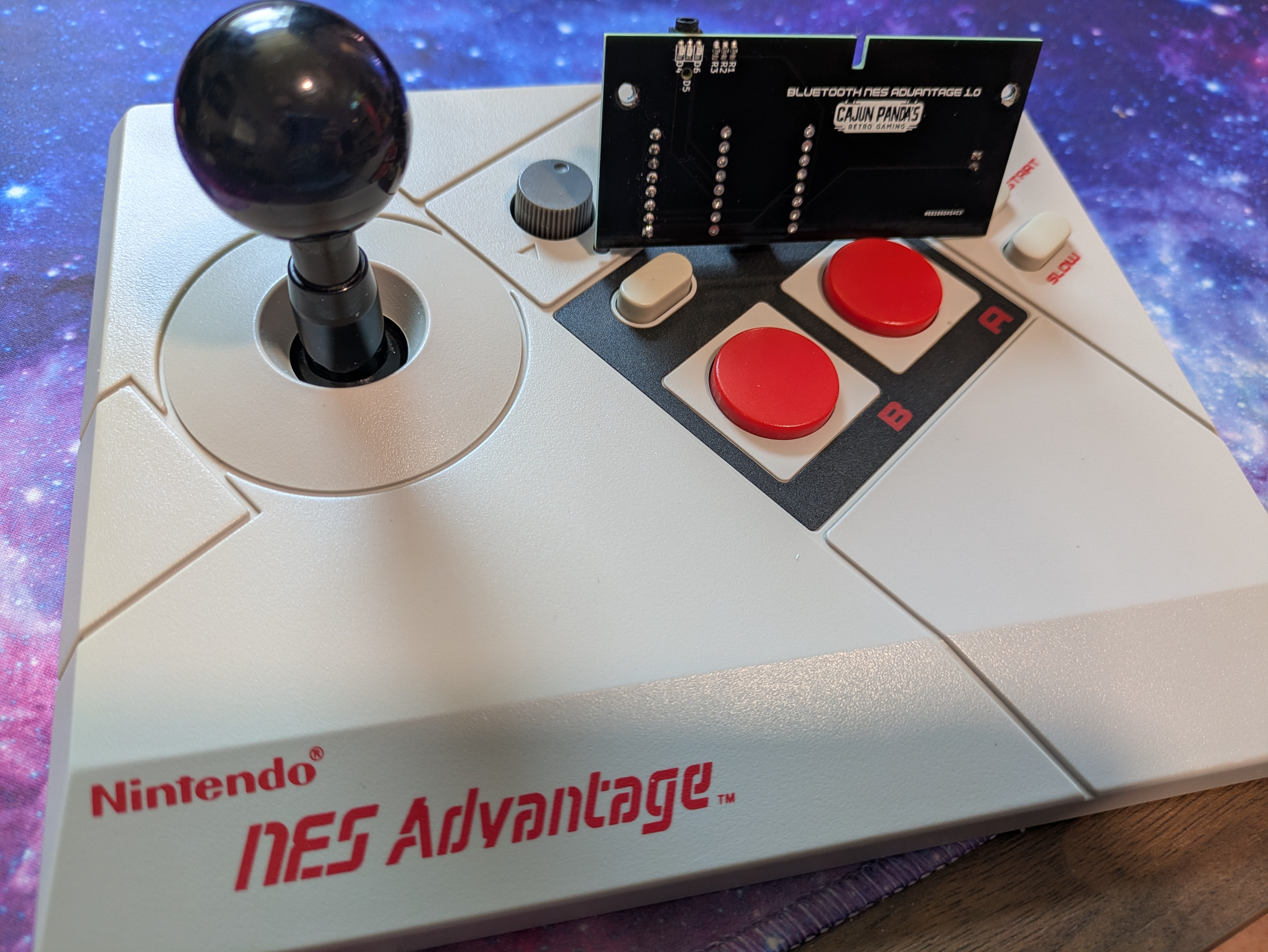

Bt nes advantage, from the project README
From the project README

Main components on the Bt nes advantage

TP4057TPS613222ADBVESP32-C3_SUPERMINI_TH

Bt nes advantage bill of materials (BOM)

26 components, 15 distinct parts.

QtyPartRefs
1
TP4057
U1
1
TPS613222ADBV
U2
1
ESP32-C3_SUPERMINI_TH
U3
1
PJ-043-SMT-TR
J1
1
Conn_01x08_Socket
J2
1
3.7V Lithium Battery
J3
3
1N5817W
D1, D2, D3
3
LED
D4, D5, D6
1
2.2µH
L1
2
10µF
C1, C3
1
22µF
C2
3
200
R1, R2, R3
1
2K
R4
2
100K
R5, R6
4
1K
R7, R8, R9, R10

Bt nes advantage design files

The KiCad project lives in the aaronperkins/bt-nes-advantage repository on GitHub; these links point at the commit this page was built from.

Bt nes advantage: common questions

What microcontroller does the Bt nes advantage use?

The Bt nes advantage is built around the ESP32-C3_SUPERMINI_TH, from the ESP32 family.

How big is the Bt nes advantage PCB?

The Bt nes advantage measures 78 × 36 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bt nes advantage?

26 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bt nes advantage design files?

From the aaronperkins/bt-nes-advantage repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bt nes advantage design in my own project?

Yes, under the terms of its GPL-3.0 license, which aaronperkins chose for the repository.

Can I test firmware for the Bt nes advantage without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
