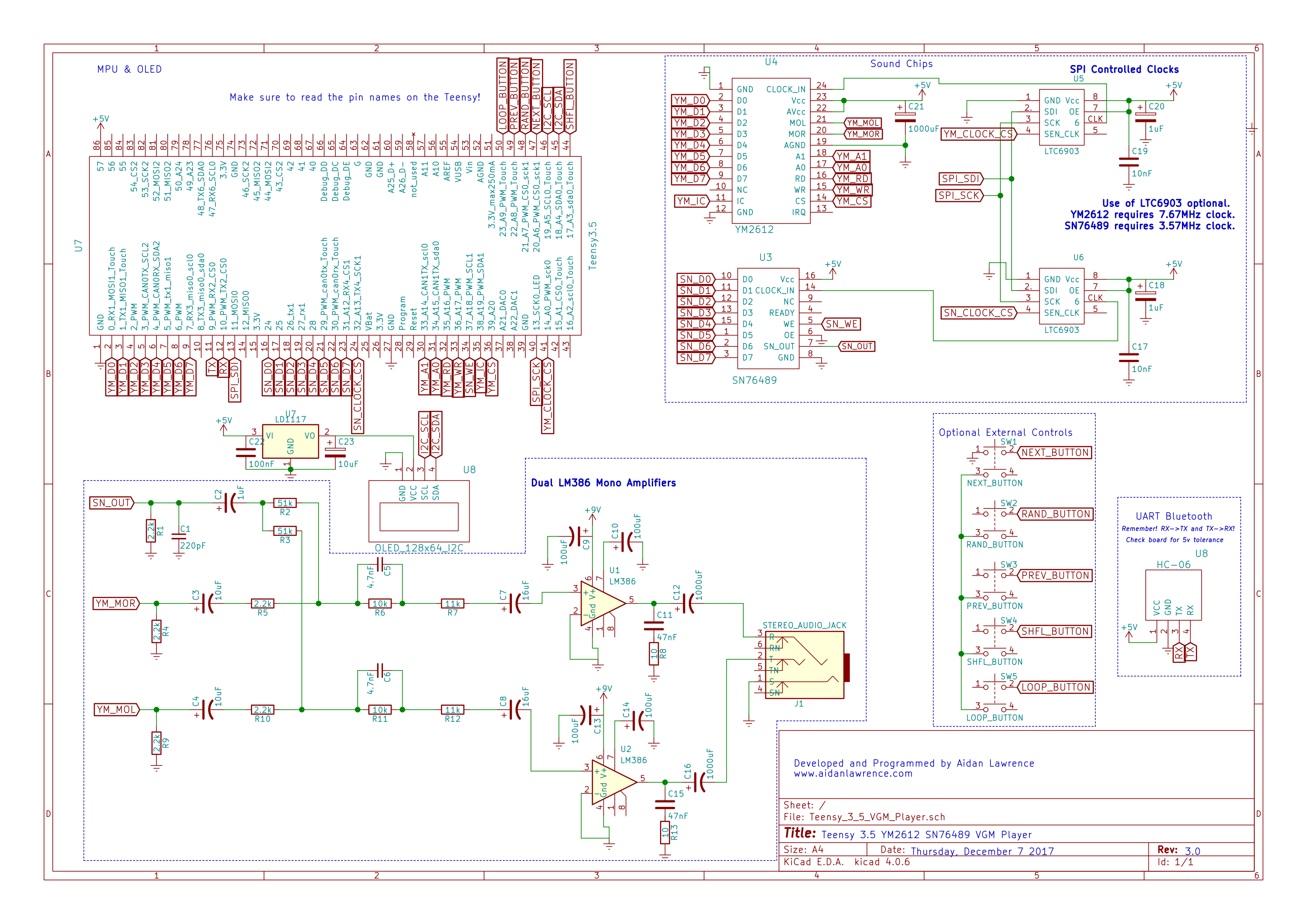

AidanHockey5·Teensy_3_5_VGM_Player_YM2612_SN76489·SchematicsAndInfo/Teensy_3_5_VGM_Player.sch

Teensy 3 5 VGM Player YM2612 SN76489

About the Teensy 3 5 VGM Player YM2612 SN76489 PCB

Teensy 3 5 VGM Player YM2612 SN76489 is an open source NXP PCB design by AidanHockey5, published on GitHub under the AGPL-3.0 license. It is a board, with 48 components from 25 distinct parts.

Its main chip is the Teensy3.5, from the NXP family. Other key parts include the LM386, SN76489, YM2612, LTC6903 and OLED_128x64_I2C. By type, the board carries 23 capacitors, 13 resistors, 8 ICs, 3 switches and 1 connector.

It belongs with the retro computing and displays & leds designs in this gallery.

From the project

A hardware Sega Genesis / Master system video game music player based on the Teensy 3.5

A new and improved version of this project can be found here: https://github.com/AidanHockey5/STM32VGMPlayerYM2612SN76489

You can view this project in action here: https://youtu.be/oJf--M76etQ

For more information, visit: http://www.aidanlawrence.com/hardware-sega-genesis-vgm-player-v-3/

This is the official successor to my original ESP8266 VGM player https://github.com/AidanHockey5/ESP8266VGMPlayerPSGYM2612

Main components on the Teensy 3 5 VGM Player YM2612 SN76489

LM386SN76489YM2612LTC6903Teensy3.5OLED_128x64_I2C

Teensy 3 5 VGM Player YM2612 SN76489 bill of materials (BOM)

48 components, 25 distinct parts.

QtyPartRefs
2
LM386
U1, U2
1
SN76489
U3
1
YM2612
U4
2
LTC6903
U5, U6
1
Teensy3.5
U7
1
OLED_128x64_I2C
U8
1
STEREO_AUDIO_JACK
J1
1
NEXT_BUTTON
SW1
1
RAND_BUTTON
SW2
1
PREV_BUTTON
SW3
1
220pF
C1
3
1uF
C2, C18, C20
2
10uF
C3, C4
2
4.7nF
C5, C6
2
6.8uF
C7, C8
4
100uF
C9, C10, C13, C14
2
47nF
C11, C15
3
1000uF
C12, C16, C21
2
10nF
C17, C19
2
10uF
C22, C23
Show 5 more
QtyPartRefs
5
2.2k
R1, R4, R5, R9, R10
2
51k
R2, R3
2
10k
R6, R11
2
11k
R7, R12
2
10
R8, R13

Teensy 3 5 VGM Player YM2612 SN76489 design files

The KiCad project lives in the AidanHockey5/Teensy_3_5_VGM_Player_YM2612_SN76489 repository on GitHub; these links point at the commit this page was built from.

Teensy 3 5 VGM Player YM2612 SN76489: common questions

What microcontroller does the Teensy 3 5 VGM Player YM2612 SN76489 use?

The Teensy 3 5 VGM Player YM2612 SN76489 is built around the Teensy3.5, from the NXP family.

How many components are on the Teensy 3 5 VGM Player YM2612 SN76489?

48 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Teensy 3 5 VGM Player YM2612 SN76489 design files?

From the AidanHockey5/Teensy_3_5_VGM_Player_YM2612_SN76489 repository on GitHub, which has the schematic and a netlist; the links under Design files point to each one.

Can I use the Teensy 3 5 VGM Player YM2612 SN76489 design in my own project?

Yes, under the terms of its AGPL-3.0 license, which AidanHockey5 chose for the repository.

Can I test firmware for the Teensy 3 5 VGM Player YM2612 SN76489 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
