View base PCB layout, top view — open source board by Ambition-muzi

About the View base PCB

View base is an open source PCB design by Ambition-muzi, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 81.2 × 81.2 mm, with 76 components from 27 distinct parts.

Other key parts include the MT6701-CT, T-Micro32_Plus, CH340C, HX711 and TMC6300. By type, the board carries 29 capacitors, 17 resistors, 8 ICs, 8 diodes, 2 transistors and 2 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

A brushless gimbal motor is paired with a magnetic encoder to provide closed-loop torque feedback control, making it possible to dynamically create and adjust the feel of detents and endstops.

A brushless gimbal motor is paired with a magnetic encoder to provide closed-loop torque feedback control, making it possible to dynamically create and adjust the feel of detents and endstops.

⚠️ Update (2022-03-24): As a result of the popularity of this project, it seems like the recommended motors are unfortunately no longer available. I expect that these motors are simply no longer in production and therefore limited stock was available (for future reference in case you find them being sold elsewhere at a higher price, they were originally selling for US$2.56 each before this project was…

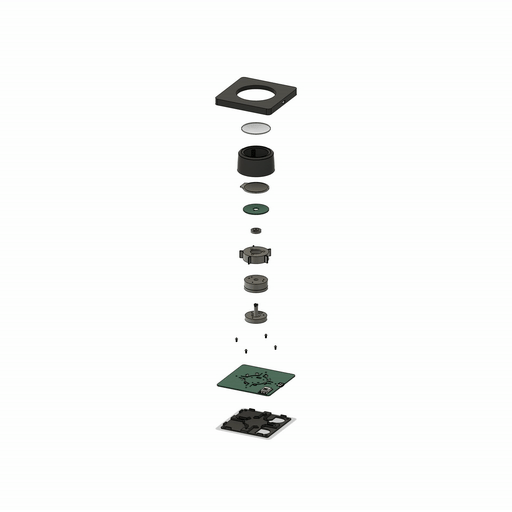

View base, from the project README
From the project README

Main components on the View base

MT6701-CTT-Micro32_PlusCH340CHX711TMC6300AP2114HA-3.3SN74LV1T34DBVVEML7700

View base bill of materials (BOM)

76 components, 27 distinct parts.

QtyPartRefs
1
MT6701-CT
U1
1
T-Micro32_Plus
U2
1
CH340C
U3
1
HX711
U4
1
TMC6300
U5
1
AP2114HA-3.3
U6
1
SN74LV1T34DBV
U7
1
VEML7700
U8
1
MMBT4403
Q1
1
UMH3N
Q2
1
BLDC
J1
1
USB_C_Receptacle_USB2.0
J2
4
BF350-3AA Strain Gauge
Z1, Z2, Z3, Z4
3
RotorScrew (BOM-only)
Z6, Z7, Z8
1
WatchGlass39.5mm
Z9
1
BLDCMotor
Z10
8
SK6812SIDE-A
D1, D2, D3, D4, D5, D6, D7, D8
1
3.3uH
L1
21
0.1uF
C1, C2, C3, C4, C5, C6, C7, C8 +13
6
10uF
C9, C10, C16, C18, C24, C26
Show 7 more
QtyPartRefs
1
22uF
C13
1
1uF
C28
2
5.1k
R1, R2
8
10k
R3, R7, R8, R9, R10, R11, R12, R17
1
8.2k
R4
2
100
R5, R6
4
2.2k
R13, R14, R15, R16

View base design files

The KiCad project lives in the Ambition-muzi/Smart_knot repository on GitHub; these links point at the commit this page was built from.

View base: common questions

How big is the View base PCB?

The View base measures 81.2 × 81.2 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the View base?

76 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the View base design files?

From the Ambition-muzi/Smart_knot repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the View base design in my own project?

Yes, under the terms of its Apache-2.0 license, which Ambition-muzi chose for the repository.
