STM32F103 Telemetry V01

andreabadan·STM32F103_Telemetry_V01·Board_STM32F103C8T6/STM32F103C8T6/STM32F103C8T6.kicad_pcb

STM32F103 Telemetry V01 PCB layout, top view — open source STM32 board by andreabadan

About the STM32F103 Telemetry V01 PCB

STM32F103 Telemetry V01 is an open source STM32 PCB design by andreabadan, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 96 × 96 mm, with 109 components from 65 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the LD1117S33TR, W25Q128JVS, USBLC6-2SC6, MPU-6050 and HM-19. By type, the board carries 37 resistors, 32 capacitors, 12 connectors, 8 ICs, 8 diodes and 3 inductors.

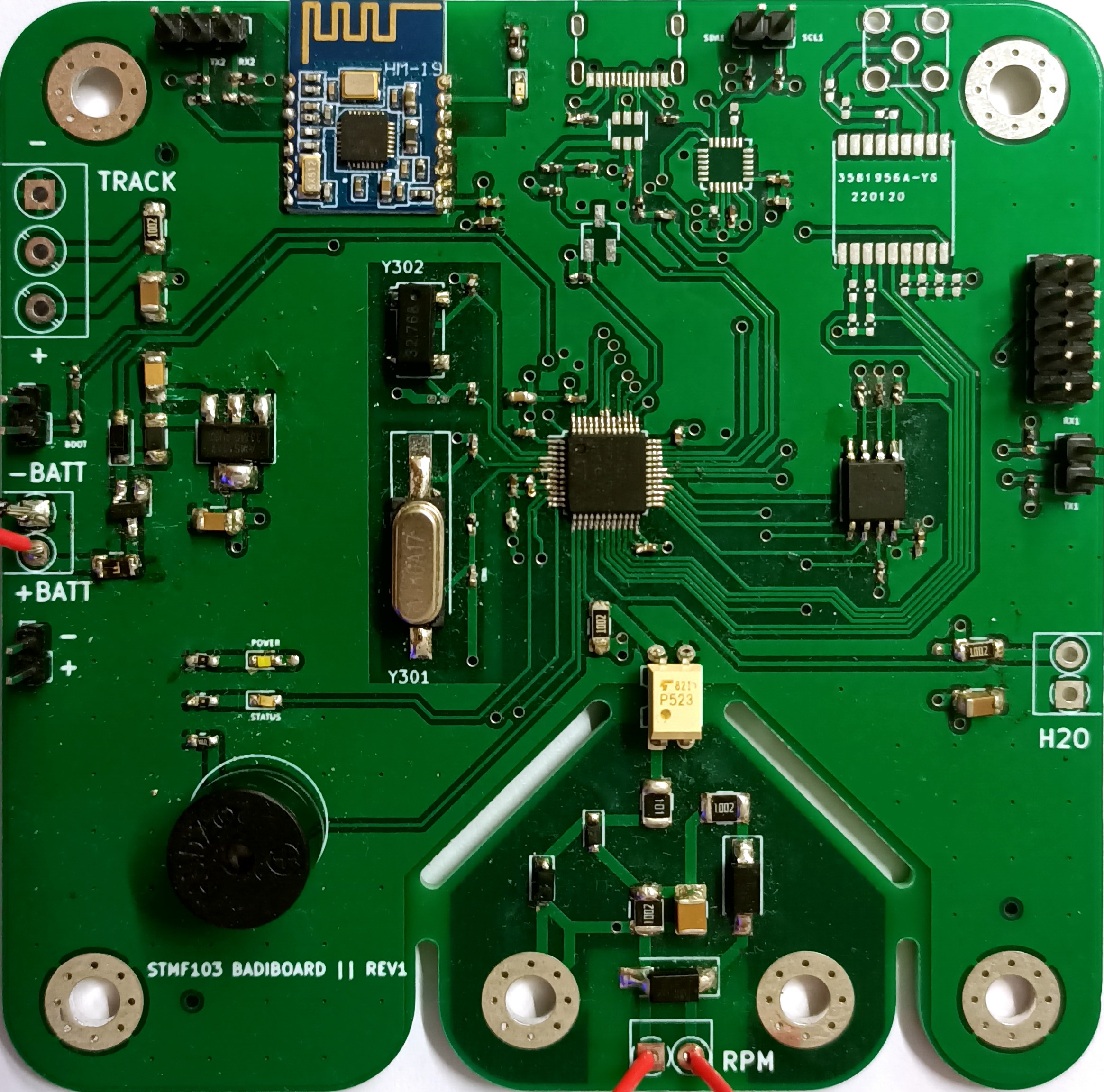

STM32F103 Telemetry V01, from the project README
From the project README

Main components on the STM32F103 Telemetry V01

LD1117S33TRW25Q128JVSSTM32F103C8T6USBLC6-2SC6MPU-6050HM-19TLP627MAX-M8Q

STM32F103 Telemetry V01 bill of materials (BOM)

109 components, 65 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LD1117S33TR
U201
1
W25Q128JVS
U301
1
STM32F103C8T6
U302
1
USBLC6-2SC6
U401
1
MPU-6050
U501
1
HM-19
U601
1
TLP627
U701
1
MAX-M8Q
U801
1
SI2301CDS-T1-BE3
Q201
1
SI2312BDS-T1-BE3
Q301
1
8MHz
Y301
1
32.768KHz
Y302
1
BOOT
J301
1
BATTERY
J401
1
I2C
J402
1
H2O
J403
1
USB_C_Receptacle_USB2.0
J404
1
SWD
J405
1
USART1
J406
1
CIRCUIT_SENSOR
J407
Show 45 more
QtyPartRefs
1
BLUETOOTH
J408
1
RPM
J409
1
POWER
J410
1
Conn_Coaxial
J801
1
Buzzer
BZ301
1
500mA
F201
3
MountingHole
H307, H308, H309
1
B5819W
D201
1
GREEN
D202
1
BLUE
D301
1
RED
D601
2
1N4007F
D701, D702
1
1N4148WS
D703
1
5v1
D704
1
600 @ 600 MHz
FB201
1
39nH
L301
1
100nH
L801
1
0.1uF
C201
3
10uF
C202, C701, C703
1
4.7uF
C301
13
0.1uF
C302, C303, C304, C305, C308, C401, C502, C503 +5
1
1uF
C306
2
0.01uF
C307, C805
2
24pF
C309, C311
2
13pF
C310, C312
2
47pF
C402, C403
3
10uF
C501, C601, C801
1
2200pF
C505
1
0.1uF
C702
3
1.5kΩ
R201, R311, R603
2
2.2kΩ
R301, R302
8
100kΩ
R303, R304, R306, R308, R309, R310, R313, R314
1
787Ω
R305
1
36kΩ
R307
1
100kΩ
R312
5
10kΩ
R315, R316, R318, R320, R803
1
4.7kΩ
R317
1
1.5kΩ
R319
2
22kΩ
R401, R402
2
5.1kΩ
R403, R404
2
1kΩ
R601, R602
3
10kΩ
R701, R702, R706
2
10kΩ
R703, R704
1
100Ω
R705
2
0kΩ
R801, R802

STM32F103 Telemetry V01 design files

The KiCad project lives in the andreabadan/STM32F103_Telemetry_V01 repository on GitHub; these links point at the commit this page was built from.

STM32F103 Telemetry V01: common questions

What microcontroller does the STM32F103 Telemetry V01 use?

The STM32F103 Telemetry V01 is built around the STM32F103C8T6, from the STM32 family.

How big is the STM32F103 Telemetry V01 PCB?

The STM32F103 Telemetry V01 measures 96 × 96 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the STM32F103 Telemetry V01?

109 components, from 65 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32F103 Telemetry V01 design files?

From the andreabadan/STM32F103_Telemetry_V01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32F103 Telemetry V01 design in my own project?

Yes, under the terms of its GPL-3.0 license, which andreabadan chose for the repository.

Can I test firmware for the STM32F103 Telemetry V01 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
