About the Pcb power usb

Pcb power usb is an open source ESP32 PCB design by angelnu, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 95.8 × 30.5 mm, with 52 components from 12 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the AMS1117-3.3. By type, the board carries 12 capacitors, 10 connectors, 9 resistors, 8 transistors, 8 diodes and 2 ICs.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

Settings for esphome

This PCB allows providing 5 V for up to 8 USB devices. Each of them can be disabled via esphome. Each USB has an LED to indicate if power is provided.

- Aisler PCB project - KiCad PCB - - - - 3D Printed cage: - Fusion 360 online view - Fusion 360 archive

- Parts: - 1x ESP32-WROOM-32 - 1x AMS1117 - 3,3v 1A regulator in SOT-223 format - 8x IRLML0030 - 5A N-MOSFET - 8x USBAStewartSS-52100-001Horizontal - 8x 0805 LEDs - 8x 0805 LED resistors (depends on selected LED) - 1x 10 KOhm resistor (reset) - 9x 0805 10 uF capacitor - 1x DC 5.5 x 2.1 mm barrel connector - Bought from Amazon - PINs: -…

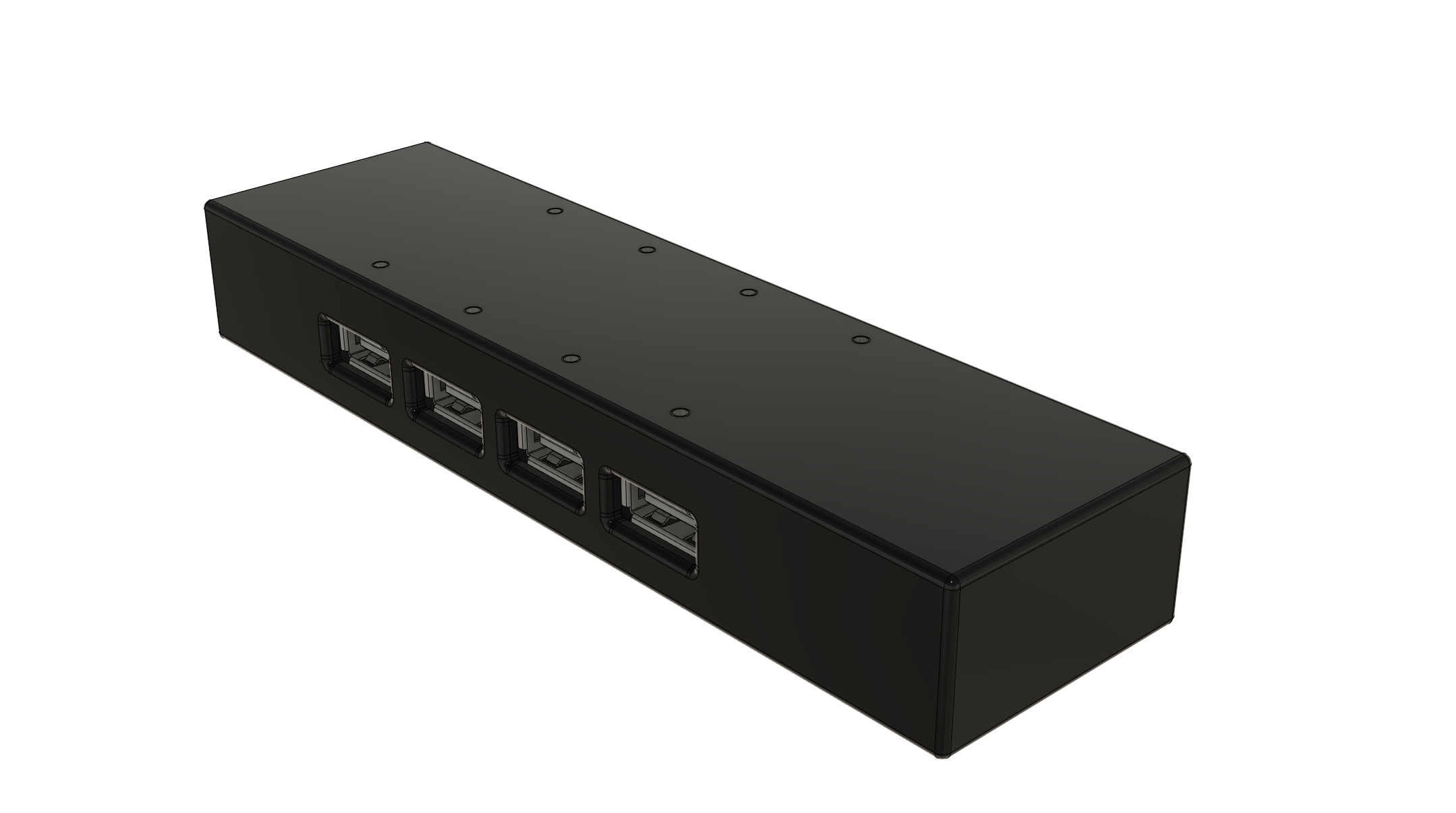

Pcb power usb, from the project README
From the project README

Main components on the Pcb power usb

AMS1117-3.3ESP32-WROOM-32

Pcb power usb bill of materials (BOM)

52 components, 12 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
ESP32-WROOM-32
U2
8
IRLML0030
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8
8
USB_A
J1, J2, J3, J4, J5, J6, J7, J8
2
Conn_01x01
J9, J10
2
SW_Push
SW1, SW2
1
Conn_01x04_Male
program_port1
8
LED
D1, D2, D3, D4, D5, D6, D7, D8
11
10uF
C1, C2, C3, C4, C5, C6, C7, C8 +3
1
100nF
C11
8
R
R1, R2, R3, R4, R5, R6, R7, R8
1
12K
R10

Pcb power usb design files

The KiCad project lives in the angelnu/esphome repository on GitHub; these links point at the commit this page was built from.

Pcb power usb: common questions

What microcontroller does the Pcb power usb use?

The Pcb power usb is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Pcb power usb?

The Pcb power usb measures 95.8 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pcb power usb?

52 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb power usb design files?

From the angelnu/esphome repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pcb power usb design in my own project?

Yes, under the terms of its Apache-2.0 license, which angelnu chose for the repository.

Can I test firmware for the Pcb power usb without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
