Esp32-temp PCB layout, top view — open source ESP32 board by angelnu

About the Esp32-temp PCB

Esp32-temp is an open source ESP32 PCB design by angelnu, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 57.1 × 56.3 mm, with 24 components from 16 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the DS18B20 and XC6206PxxxMR. By type, the board carries 5 capacitors, 4 connectors, 4 resistors, 3 ICs, 2 transistors and 2 relays.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

Settings for esphome

- Aisler PCB project - KiCad schematics - - KiCad PCB - - -

- Parts: - 1x ESP32-WROOM-32 - nx Temperature Sensors - DS18B20 - the sensor in the PCB is in format TO-92. I bought mine in ebay. - the external sensors are attached to the connector top lef. You can get them waterprof at many places including Amazon - 2x 5v 10A Relay - 1x 220v-5V ACDC transformer - 1x xc6206 - 3,3v 0,5A regulator in SOT-23 format - 2x IRLML2060 - N-MOSFET - PINs: - Header top left - external temperature sensors. From top to bottom: - VCC - Data - GND - Header right - 220v input/oputput. From top to bottom: - Input…

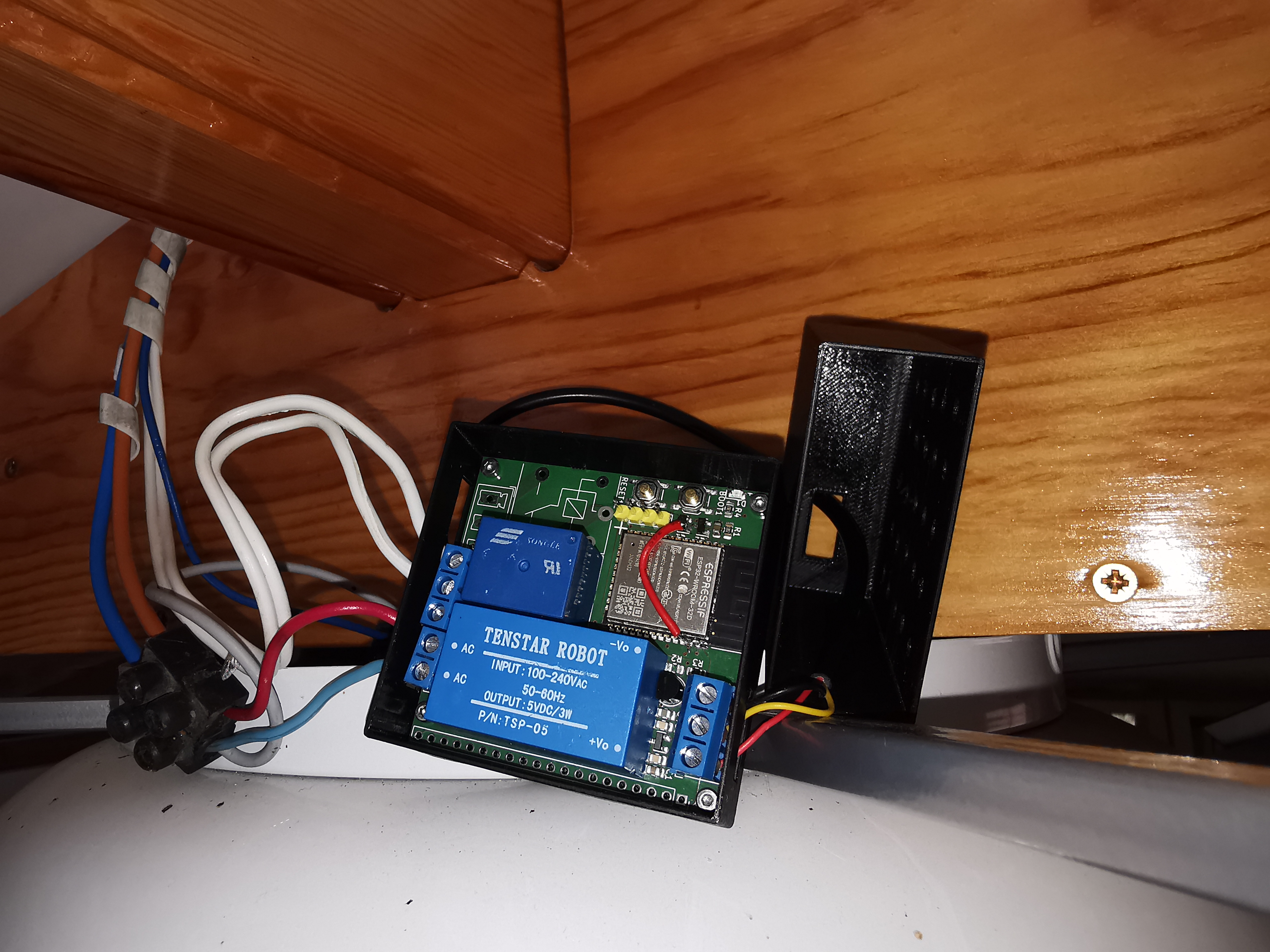

Esp32-temp, from the project README
From the project README

Main components on the Esp32-temp

ESP32-WROOM-32DS18B20XC6206PxxxMR

Esp32-temp bill of materials (BOM)

24 components, 16 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
DS18B20
U2
1
XC6206PxxxMR
U3
2
IRLML2060
Q1, Q2
1
220V
J1
1
PROGRAM
J3
1
TEMP
J4
1
Conn_01x24_Male
J5
2
SW_Push
BOOT1, RESET1
2
SANYOU_SRD_Form_A
K1, K2
1
HLK-PM05
PS1
1
LED
D1
3
10uF
C1, C3, C4
2
100nF
C2, C5
2
12K
R1, R4
2
4K7
R2, R3

Esp32-temp design files

The KiCad project lives in the angelnu/esphome repository on GitHub; these links point at the commit this page was built from.

Esp32-temp: common questions

What microcontroller does the Esp32-temp use?

The Esp32-temp is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Esp32-temp PCB?

The Esp32-temp measures 57.1 × 56.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-temp?

24 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-temp design files?

From the angelnu/esphome repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Esp32-temp design in my own project?

Yes, under the terms of its Apache-2.0 license, which angelnu chose for the repository.

Can I test firmware for the Esp32-temp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
