D1600e psu breakout

antmicro·d1600e-psu-breakout

D1600e psu breakout layout, top view — open source board by antmicro

About the D1600e psu breakout

D1600e psu breakout is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 100 × 100 mm, with 166 components from 51 distinct parts.

Other key parts include the USB4145-03-0070-C, ISO1641BDR, NCP163ASN330T1G, AP62301WU-7 and FT4232H-56Q-REEL. By type, the board carries 57 resistors, 36 capacitors, 20 diodes, 15 ICs, 13 connectors and 6 transistors.

It belongs with the power & battery and dev boards & breakouts designs in this gallery.

From the project

Breakout board for DELL D1600E-S0 Power Supply Unit

This project contains open hardware design files for a Power Supply Unit (PSU) breakout board compatible with Dell D1600E-S0 PSU. The design files were prepared in KiCad.

The main directory contains the KiCad design files, LICENSE and README. The remaining files are stored in the following directories:

img - contains graphics for this README doc - contains generated schematics and other documentation assets`` - contains visual assets for showcasing this design on Open Hardware Portal and Antmicro Designer.

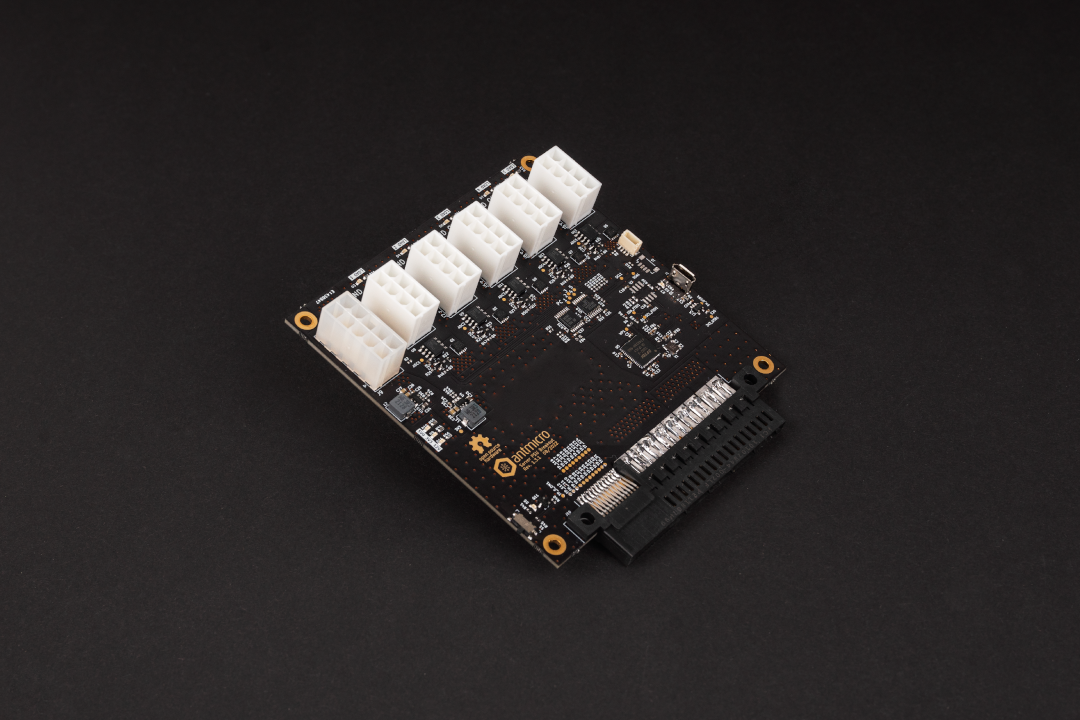

D1600e psu breakout, from the project README
From the project README

Main components on the D1600e psu breakout

USB4145-03-0070-CISO1641BDRNCP163ASN330T1GAP62301WU-7FT4232H-56Q-REELSN74AUP1G17DCKRACPL-217-500ETMCS1100A2QDRQ1TCA9534PWRADS7828E/250

D1600e psu breakout bill of materials (BOM)

166 components, 51 distinct parts.

QtyPartRefs
1
USB4145-03-0070-C
USB-C_GCT_USB4145-03-0070-C
GCT
U1
1
ISO1641BDR
ISO1641
Texas Instruments
U2
1
NCP163ASN330T1G
ON Semiconductor
U3
2
AP62301WU-7
AP62301_TSOT
Diodes Incorporated
U4, U15
1
FT4232H-56Q-REEL
FT4232H_VQFN
FTDI Chip
U5
1
SN74AUP1G17DCKR
SN74AUP1G17_SC70
Texas Instruments
U6
1
ACPL-217-500E
Broadcom
U7
5
TMCS1100A2QDRQ1
TMCS1100A2-Q1
Texas Instruments
U8, U9, U11, U12, U13
1
TCA9534PWR
TCA9534PWR_TSSOP
Texas Instruments
U10
1
ADS7828E/250
ADS7828
Texas Instruments
U14
5
2N7002
2N7002_SOT-23-3
ON Semiconductor
Q6, Q7, Q8, Q9, Q10
1
BC856,215
Nexperia
Q11
1
KX-7_SMD_CRYSTAL_12,0 MHZ
Resonator_12MHz_KX_7
Geyer Electronic
Y1
5
22-27-2041
Molex_KK_1x4_22-27-2041
Molex
J1, J11, J12, J13, J14
1
BM04B-SRSS-TB(LF)(SN)
JST_SH_1x4_BM04B-SRSS-TB-LF-SN
JST Automotive Connectors
J3
5
39-28-8080
Molex_Mini-Fit-Jr_2x4_39-28-8080
Molex
J4, J5, J6, J7, J8
1
39-28-1103
Molex_Mini-Fit-Jr_2x5_39-28-1103
Molex
J9
1
10107844-002LF
Socket_Amphenol_HPCE_2x17_10107844-002LF
Amphenol
J10
10
SI7613DN-T1-GE3
Vishay
QA1, QA2, QA3, QA4, QA5, QB1, QB2, QB3 +2
1
PCM12SMTR
SW_SPDT_PCM12SMTR
C&K
S1
Show 31 more
QtyPartRefs
1
61300311121
PinHeader_1x3_P2.54mm_Drill1.1mm
Würth Elektronik
SW1
5
PESD5V0S2BQA
Nexperia
D1, D12, D13, D14, D20
10
LG L29K-G2J1-24-Z
LED_G_0603_LG_L29K-G2J1-24-Z
OSRAM
D2, D3, D4, D5, D6, D7, D8, D9 +2
5
BZT52B15SV-T
Rectron
D15, D16, D17, D18, D19
4
BLM18AG601SN1D
FB_600Z_0.5A_Murata-BLM18AG_0603
Murata
FB1, FB2, FB3, FB4
2
74437336033
L_3u3_4.1A_WE-LHMI-5030
Würth Elektronik
L1, L2
2
CL05C180JB51PNC
C_18p_0402
Samsung Electro-Mechanics
C1, C2
22
GRM155R61H104KE14D
C_100n_0402
Murata
C3, C4, C5, C6, C7, C8, C9, C10 +14
5
GRM155R61A475MEAAD
C_4u7_0402
Murata
C11, C12, C13, C19, C20
1
C1005X6S1A105K050BC
C_1u_0402
TDK
C22
2
C1608X5R1E106M080AC
C_10u_25V_0603
TDK
C24, C33
4
GRM188R60J226MEA0D
C_22u_0603
Murata
C26, C27, C35, C36
1
CR0402-FX-1001GLF
R_1k_0402
Bourns
R1
1
RC0402BR-07100KL
R_100k_0.1%_0402
Yageo
R2
1
CR0402-FX-1202GLF
R_12k_0402
Bourns
R3
2
CR0603-J/-000ELF
R_0R_0603
Bourns
R4, R8
10
CR0402-FX-4701GLF
R_4k7_0402
Bourns
R5, R6, R19, R22, R23, R25, R28, R29 +2
1
CR0402-FX-3300GLF
R_330R_0402
Bourns
R7
5
CR0603-FX-4701ELF
R_4k7_0603
Bourns
R11, R12, R51, R52, R53
7
ERJ2GE0R00X
R_0R_0402
Panasonic
R14, R16, R18, R31, R33, R70, R72
7
CR0402-FX-1002GLF
R_10k_0402
Bourns
R20, R21, R24, R26, R27, R40, R73
1
CR0402-FX-6801GLF
R_6k8_0402
Bourns
R34
1
CR0402-FX-1301GLF
R_1k3_0402
Bourns
R35
2
CR0402-FX-6800GLF
R_680R_0402
Bourns
R41, R44
1
CR0402-FX-2151GLF
R_2k15_0402
Bourns
R43
2
CR0603-FX-1001ELF
R_1k_0603
Bourns
R54, R55
1
CR0603-FX-2201ELF
R_2k2_0603
Bourns
R56
2
CR0402-FX-5101GLF
R_5k1_0402
Bourns
R57, R58
1
ERA-2AEB1542X
R_15k4_0.1%_0402
Panasonic
R59
10
CR0402-FX-2R00GLF
R_2R_0402
Bourns
R60, R61, R62, R63, R64, R65, R66, R67 +2
1
CR0402-FX-2200GLF
R_220R_0402
Bourns
R74

D1600e psu breakout design files

The KiCad project lives in the antmicro/d1600e-psu-breakout repository on GitHub; these links point at the commit this page was built from.

D1600e psu breakout: common questions

How big is the D1600e psu breakout?

The D1600e psu breakout measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the D1600e psu breakout?

166 components, from 51 distinct parts. The full bill of materials is listed on this page.

Where can I download the D1600e psu breakout design files?

From the antmicro/d1600e-psu-breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the D1600e psu breakout design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
