Base station PCB V0.3.1

ARTS-Laboratory·Sensor-Package-Access-Hub·system_development/V0.3.1/EDA/Base_station_PCB_V0.3.1/Base_station_PCB_V0.3.1.kicad_pcb

Base station PCB V0.3.1 layout, top view — open source board by ARTS-Laboratory
Simulate this board

About the Base station PCB V0.3.1

Base station PCB V0.3.1 is an open source PCB design by ARTS-Laboratory, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 55.6 × 53 mm, with 8 components from 6 distinct parts.

Other key parts include the NRF24L01_Breakout. By type, the board carries 4 capacitors, 1 IC, 1 connector, 1 diode and 1 resistor.

It belongs with the sensors designs in this gallery.

From the project

An access hub for communicating with the lab's sensor packages over short-range RF

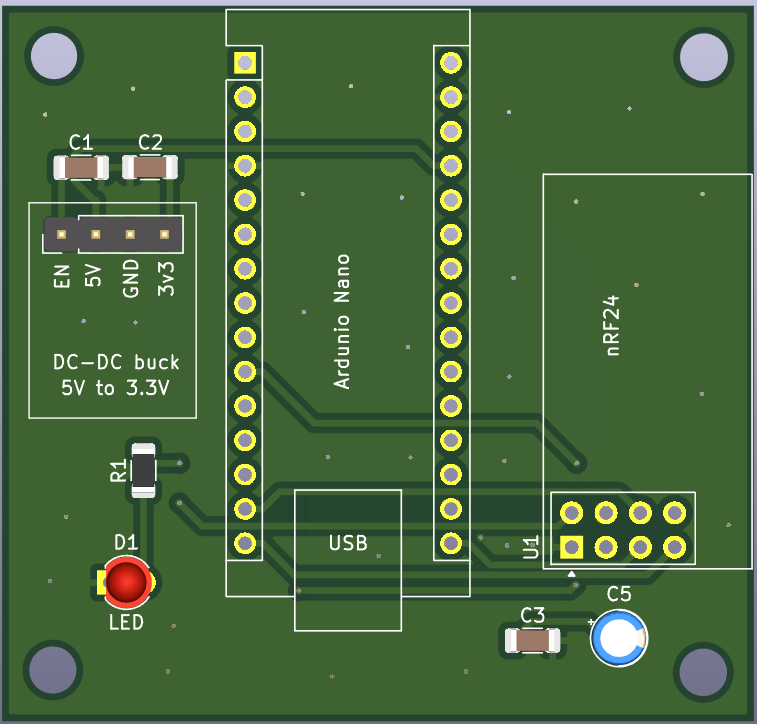

PCB view- * Reference from - https://github.com/ARTS-Laboratory/IoT-Water-Level-Sensor

Base station PCB V0.3.1, from the project README
From the project README

Main components on the Base station PCB V0.3.1

NRF24L01_Breakout

Base station PCB V0.3.1 bill of materials (BOM)

8 components, 6 distinct parts — part numbers from the project's BOM.
