About the Esp32stack PCB

Esp32stack is an open source ESP32 PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 3.2 × 3.2 mm, with 27 components from 16 distinct parts.

Its main chip is the ESP32-WROOM, from the ESP32 family. Other key parts include the NCP1117ST33T3G and CP2102. By type, the board carries 8 capacitors, 6 resistors, 3 ICs, 3 connectors, 3 diodes and 2 transistors.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

A stacking board for esp-wroom-32.

- espressif/esp-idf - espressif/arduino-esp32 - Mongoose OS - etc

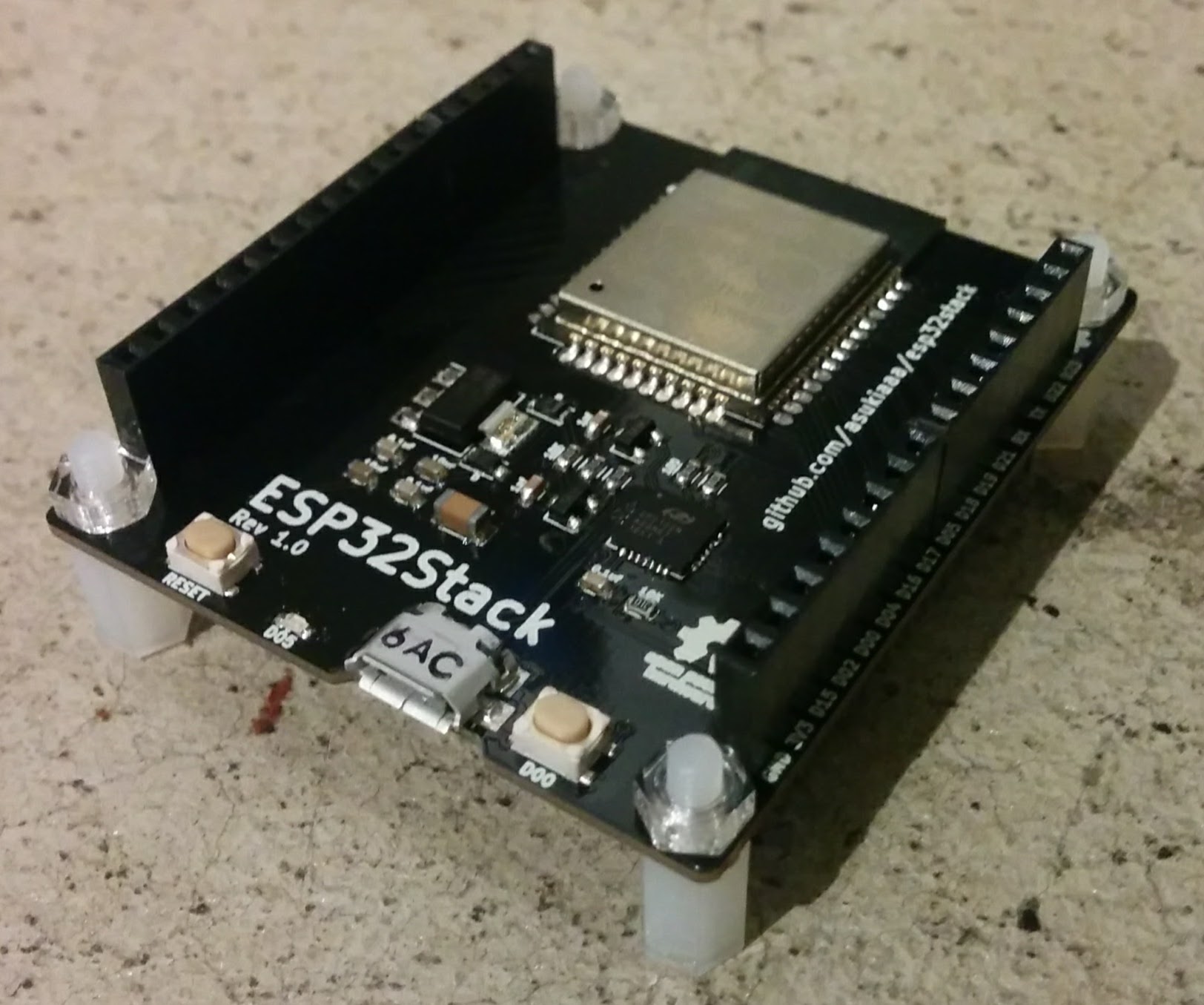

Esp32stack, from the project README
From the project README

Main components on the Esp32stack

ESP32-WROOMNCP1117ST33T3GCP2102

Esp32stack bill of materials (BOM)

27 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROOM
U1
1
NCP1117ST33T3G
U2
1
CP2102
U3
2
4020290A
MMBT3904
Q1, Q2
1
CONN_01X17
J1
1
CONN_01X16
J2
1
USB_OTG
P1
2
SWITCH_SPST
SW1, SW2
2
D
D1, D2
1
D05
D3
2
1NF
1nf
C1, C2
2
10UF
10uf
C3, C4
3
0.1UF
0.1uf
C5, C6, C7
1
100UF
100uf
C8
4
10K
R1, R2, R3, R4
2
100
R5, R6

Esp32stack design files

The KiCad project lives in the asukiaaa/esp32stack repository on GitHub; these links point at the commit this page was built from.

Esp32stack: common questions

What microcontroller does the Esp32stack use?

The Esp32stack is built around the ESP32-WROOM, from the ESP32 family.

How big is the Esp32stack PCB?

The Esp32stack measures 3.2 × 3.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32stack?

27 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32stack design files?

From the asukiaaa/esp32stack repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Esp32stack design in my own project?

The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32stack without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
