UniversalFluxInterface

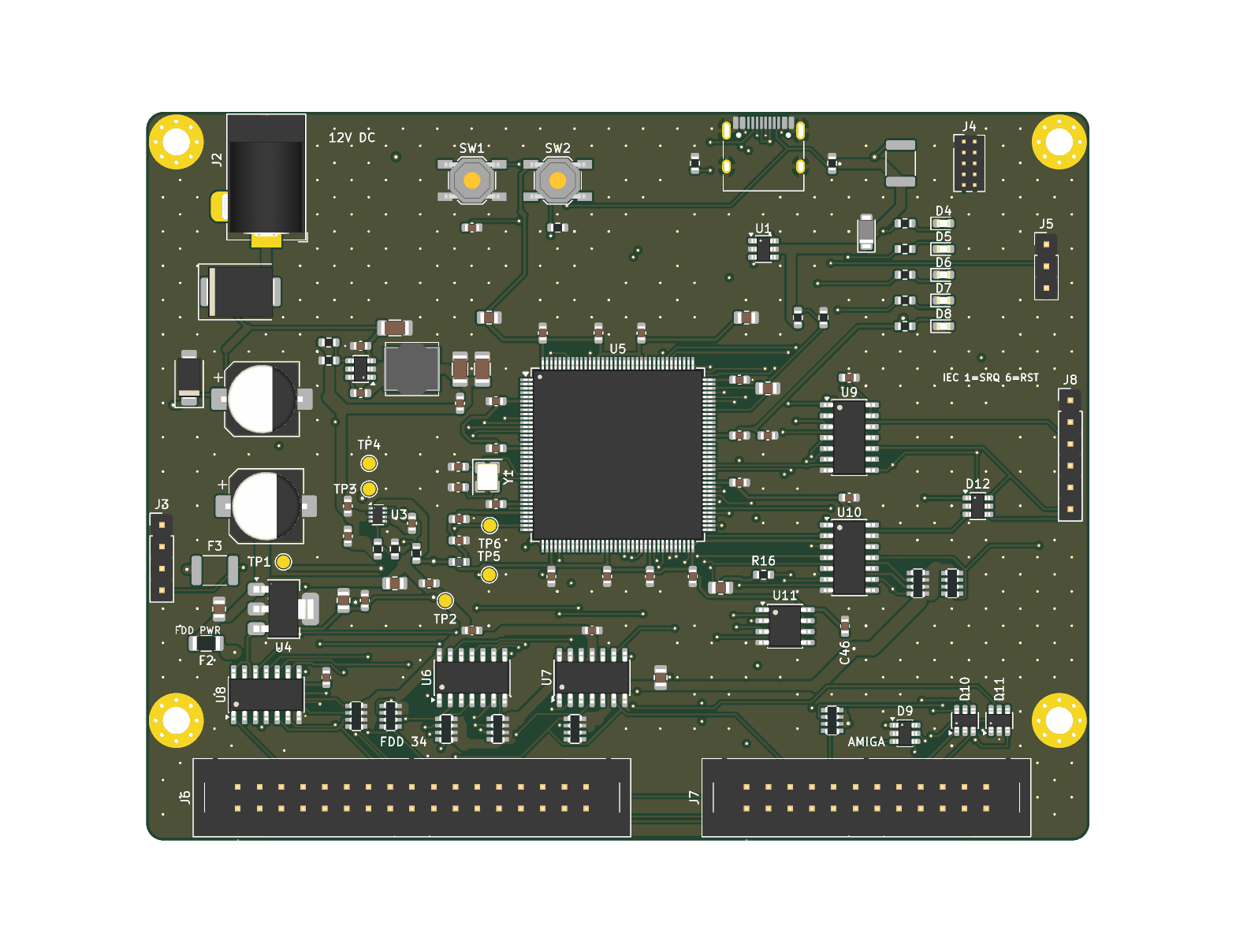

About the UniversalFluxInterface PCB
UniversalFluxInterface is an open source STM32 PCB design by Axel051171, published on GitHub under the MIT license. It is a 4-layer board measuring 110 × 97 mm, with 173 components from 80 distinct parts.
Its main chip is the STM32H723ZGT6, from the STM32 family. Other key parts include the USBLC6-2SC6, TPS54202DDCR, TPS2116DRLR, AP7361C-33E-13 and SN74LS07DR (alt. SN7407DR). By type, the board carries 56 capacitors, 49 resistors, 18 ICs, 18 connectors, 17 diodes and 4 transistors.
It belongs with the displays & leds and power & battery designs in this gallery.
From the project
UFI (Universal Flux Interface) STM32H723 flux imaging platform for reliable floppy disk preservation, recovery and advanced decoding workflows.
Status: Schaltplan + Layout v0.6 – ERC 0 Verstöße, alle Netze per Netlist-Export geprüft; PCB-DRC 0 Fehler, 0 Warnungen (Details unten).
v0.2 (gegenüber v0.1): PSRAM, ESD-Schutz an den externen Ports, Polyfuses in der Laufwerksversorgung, Messpunkte. Neue Teile haben feste Referenzen oberhalb der v0.1-Maxima (U11, C46, R16, F2/F3, D9–D12, TP1–TP6), alle bestehenden Referenzen sind unverändert.
Main components on the UniversalFluxInterface
UniversalFluxInterface bill of materials (BOM)
173 components, 80 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | TPS54202DDCR TPS54202DDC | SOT-23-6 | U2 |
| 1 | TPS2116DRLR TPS2116DRL | SOT-583-8 | U3 |
| 1 | AP7361C-33E-13 AP7361C-33E | SOT-223-3_TabPin2 | U4 |
| 1 | STM32H723ZGT6 | LQFP-144_20x20mm_P0.5mm | U5 |
| 3 | SN74LS07DR (alt. SN7407DR) SN74LS07D | SOIC-14_3.9x8.7mm_P1.27mm | U6, U7, U9 |
| 2 | SN74LVC14ADR 74LVC14AD | SOIC-14_3.9x8.7mm_P1.27mm | U8, U10 |
| 1 | APS6404L-3SQR-SN | SOIC-8_3.9x4.9mm_P1.27mm | U11 |
| 2 | INA180A1IDBVR INA180A1 | SOT-23-5 | U12, U13 |
| 1 | 74LVC1G32GW,125 74LVC1G32GW | SOT-353_SC-70-5 | U14 |
| 1 | CSNP32GCR01-AOW | SD_NAND_LGA-8_6x8mm_P1.27mm | U15 |
| 1 | SN74AHCT244PWR | TSSOP-20_4.4x6.5mm_P0.65mm | U16 |
| 1 | 74LVC2G17GW,125 74LVC2G17GW | SOT-363_SC-70-6 | U17 |
| 1 | ICL7662EBA+T | SOIC-8_3.9x4.9mm_P1.27mm | U18 |
| 2 | AO3401A | SOT-23 | Q1, Q3 |
| 2 | 2N7002 | SOT-23 | Q2, Q4 |
| 1 | YXC X322525MOB4SI (25MHz, CL 12pF, +-10ppm) 25MHz CL=12pF | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | HRO TYPE-C-31-M-12 USB-C | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | 12V DC 5.5/2.1 | BarrelJack_Horizontal | J2 |
| 1 | C32713270 FDD_PWR | PinHeader_1x04_P2.54mm_Vertical | J3 |
Show 60 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C22438120 SWD | PinHeader_2x05_P1.27mm_Vertical | J4 |
| 1 | C49257 DBG_UART | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | FDD_34PIN | IDC-Header_2x17_P2.54mm_Vertical | J6 |
| 1 | AMIGA_FDD | IDC-Header_2x12_P2.54mm_Vertical | J7 |
| 1 | C37208 IEC_HDR | PinHeader_1x06_P2.54mm_Vertical | J8 |
| 1 | EXPANSION | PinHeader_2x05_P2.54mm_Vertical | J9 |
| 1 | WRITE_LOCK | PinHeader_1x02_P2.54mm_Vertical | J11 |
| 1 | FRONT_LED | PinHeader_2x04_P2.54mm_Vertical | J12 |
| 1 | MODE_SW | PinHeader_1x03_P2.54mm_Vertical | J13 |
| 1 | C2977593 DISK_II | IDC-Header_2x10_P2.54mm_Vertical_UFI | J14 |
| 1 | APPLE_EN2 | PinHeader_1x02_P2.54mm_Vertical | J15 |
| 1 | USB_HDR | PinHeader_2x05_P2.54mm_Vertical | J16 |
| 1 | C32713270 PSU_IN | PinHeader_1x04_P2.54mm_Vertical | J17 |
| 1 | 5V_SEL | PinHeader_1x03_P2.54mm_Vertical | J18 |
| 1 | C49257 SYNC_SENSOR | PinHeader_1x03_P2.54mm_Vertical | J19 |
| 2 | SMD1812P150TF/24 (1.5A hold) 1.5A hold | Fuse_1812_4532Metric | F1, F4 |
| 1 | SMD1206P110TF (1.1A hold, 6V) 1.1A hold 6V | Fuse_1206_3216Metric | F2 |
| 1 | SMD1812P110TF/24 (1.1A hold, 24V) 1.1A hold 24V | Fuse_1812_4532Metric | F3 |
| 1 | C2886898 RESET | SW_SPST_TL3342 | SW1 |
| 1 | C2886898 BOOT | SW_SPST_TL3342 | SW2 |
| 1 | C2886898 BTN_A | SW_SPST_TL3342 | SW3 |
| 1 | C2886898 BTN_B | SW_SPST_TL3342 | SW4 |
| 3 | SMF5.0CA | D_SMF | D1, D13, D17 |
| 1 | SS54C (40V/5A) SS54 | D_SMC | D2 |
| 2 | SMAJ15CA | D_SMA | D3, D14 |
| 3 | C12624 green | LED_0603_1608Metric | D4, D5, D6 |
| 1 | C2286 red | LED_0603_1608Metric | D7 |
| 1 | C12624 green PWR | LED_0603_1608Metric | D8 |
| 6 | ESDA6V1-5SC6 | SOT-23-6 | D9, D10, D11, D12, D15, D16 |
| 1 | C1002 600R@100MHz | L_0603_1608Metric | FB1 |
| 1 | Bourns SRN6045TA-150M 15uH 3A | L_Bourns_SRN6045TA | L1 |
| 2 | 100UF/25V 100uF/25V | CP_Elec_8x10.5 | C1, C13 |
| 1 | 10UF/35V 10uF/35V | C_1206_3216Metric | C2 |
| 1 | 100NF/50V 100nF/50V | C_0603_1608Metric | C3 |
| 33 | 100NF 100nF | C_0603_1608Metric | C4, C7, C12, C16, C17, C18, C19, C20 +25 |
| 2 | 22UF/16V 22uF/16V | C_1206_3216Metric | C5, C6 |
| 4 | 1UF 1uF | C_0603_1608Metric | C8, C9, C10, C33 |
| 1 | 22UF/10V 22uF/10V | C_0805_2012Metric | C11 |
| 4 | 10UF 10uF | C_0805_2012Metric | C14, C15, C43, C48 |
| 1 | 4.7UF 4.7uF | C_0805_2012Metric | C31 |
| 1 | 1UF 1uF | C_0805_2012Metric | C32 |
| 2 | 2.2UF 2.2uF | C_0805_2012Metric | C35, C36 |
| 2 | C1647 18pF C0G | C_0603_1608Metric | C38, C39 |
| 2 | 10UF/25V 10uF/25V | C_1206_3216Metric | C55, C56 |
| 2 | 5.1K 5.1k | R_0603_1608Metric | R1, R2 |
| 1 | C25803 100k 1% | R_0603_1608Metric | R3 |
| 1 | C25952 13.3k 1% | R_0603_1608Metric | R4 |
| 1 | C4216 33k 1% | R_0603_1608Metric | R5 |
| 1 | C25804 10k 1% | R_0603_1608Metric | R6 |
| 8 | 10K 10k | R_0603_1608Metric | R7, R8, R16, R17, R30, R32, R38, R39 |
| 1 | 22K 22k | R_0603_1608Metric | R9 |
| 1 | 33K 33k | R_0603_1608Metric | R10 |
| 4 | 1k | R_0603_1608Metric | R11, R12, R13, R14 |
| 4 | 2.2K 2.2k | R_0603_1608Metric | R15, R18, R19, R20 |
| 5 | 47K 47k | R_0603_1608Metric | R21, R22, R23, R24, R25 |
| 2 | 1206W4F100LT5E (0.1R 1% 1/4W) 0.1R 1% | R_1206_3216Metric | R26, R29 |
| 4 | 100K 100k | R_0603_1608Metric | R27, R28, R31, R33 |
| 4 | 330 | R_0603_1608Metric | R34, R35, R36, R37 |
| 8 | 1k | R_Array_Convex_4x0603 | RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 |
| 2 | 10K 10k | R_Array_Convex_4x0603 | RN9, RN10 |
UniversalFluxInterface design files
The KiCad project lives in the Axel051171/UniversalFluxInterface repository on GitHub; these links point at the commit this page was built from.
UniversalFluxInterface: common questions
What microcontroller does the UniversalFluxInterface use?
The UniversalFluxInterface is built around the STM32H723ZGT6, from the STM32 family.
How big is the UniversalFluxInterface PCB?
The UniversalFluxInterface measures 110 × 97 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the UniversalFluxInterface?
173 components, from 80 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the UniversalFluxInterface design files?
From the Axel051171/UniversalFluxInterface repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the UniversalFluxInterface design in my own project?
Yes, under the terms of its MIT license, which Axel051171 chose for the repository.
Can I test firmware for the UniversalFluxInterface without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
