About the VGA Proto PCB

VGA Proto is an open source RP2040/RP2350 PCB design by baldengineer, published on GitHub under the MIT license. It is a 2-layer board measuring 37.1 × 63.8 mm, with 62 components from 33 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the 74HCT245, 74LVC2G04, MIC5504-3.3YM5, 74LVC2G04-DNP and W25Q128JVS. By type, the board carries 17 resistors, 16 capacitors, 8 connectors, 7 ICs, 7 test points and 3 diodes.

From the project

Using the Mega II from a IIgs to make a Apple IIe compatible computer: The Mega IIe!

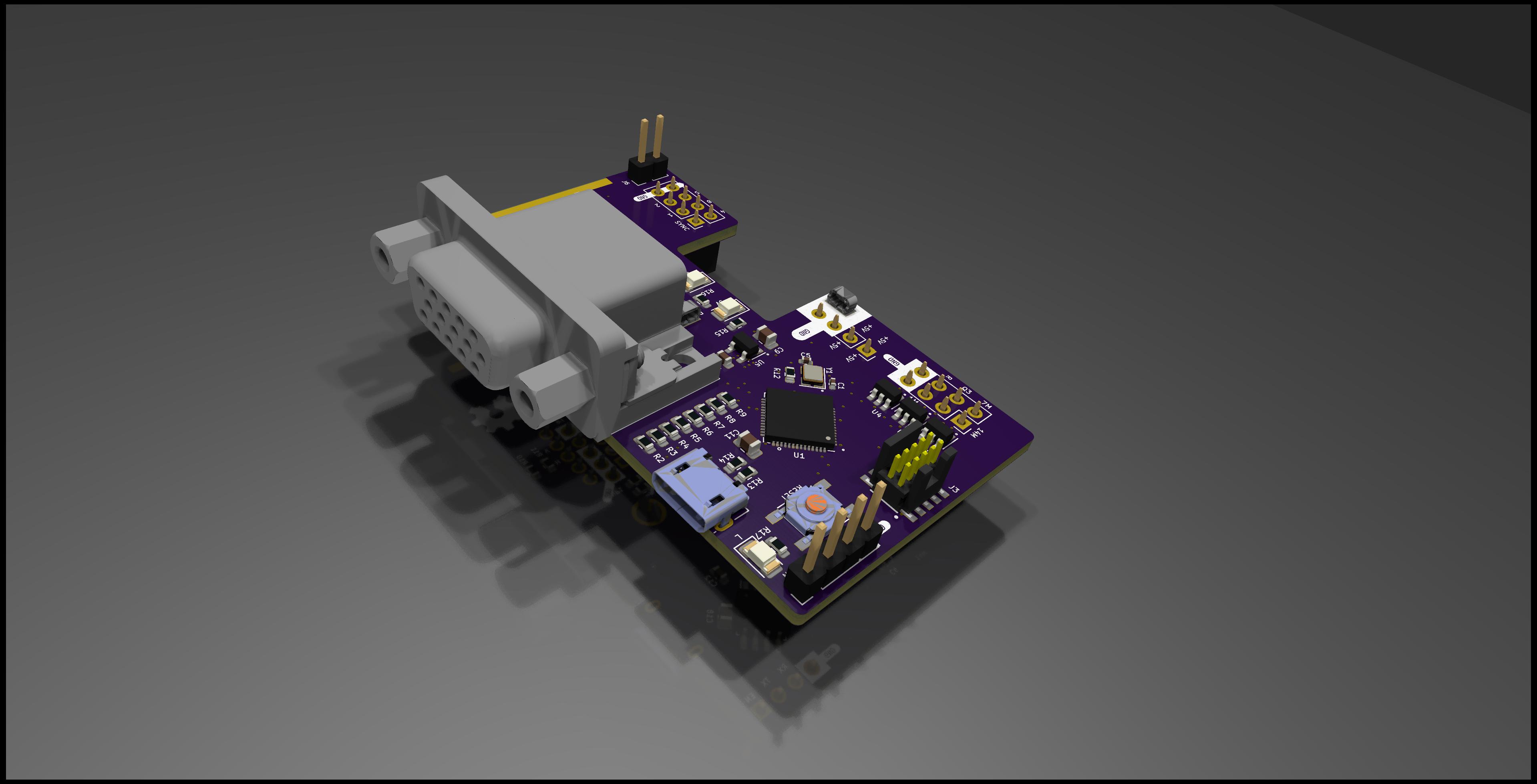

VGA Proto, from the project README
From the project README

Main components on the VGA Proto

RP204074HCT24574LVC2G04MIC5504-3.3YM574LVC2G04-DNPW25Q128JVS

VGA Proto bill of materials (BOM)

62 components, 33 distinct parts.

QtyPartRefs
1
RP2040
U1
1
74HCT245
U2
2
74LVC2G04
U3, U4
1
MIC5504-3.3YM5
U5
1
74LVC2G04-DNP
U6
1
W25Q128JVS
U7
1
ABM10AIG-12.000MHZ-7-D2Z-T
Y1
1
RGB Bin
J1
1
CLKS
J2
1
SWD
J3
1
L77HDE15SD1CH4F
J4
1
VID_TXRX
J5
1
WIN
J6
1
5V
J7
1
USB_B_Micro
J8
2
4k7
RNP1, RNP2
1
2040 RESET
SW1
7
TestPoint_Harwin
TP2, TP3, TP4, TP5, TP6, TP7, TP8
1
5V
D1
1
3V
D2
Show 13 more
QtyPartRefs
1
L
D3
2
6p
C1, C5
8
1u
C2, C6, C8, C10, C12, C13, C14, C16
3
100n
C3, C4, C17
2
10u
C9, C11
1
100n
C18
3
100
R1, R10, R11
6
1k
R2, R5, R8, R15, R16, R17
1
390
R3
2
2k2
R4, R7
2
470
R6, R9
1
0
R12
2
27
R13, R14

VGA Proto design files

The KiCad project lives in the baldengineer/Mega-IIe repository on GitHub; these links point at the commit this page was built from.

VGA Proto: common questions

What microcontroller does the VGA Proto use?

The VGA Proto is built around the RP2040, from the RP2040/RP2350 family.

How big is the VGA Proto PCB?

The VGA Proto measures 37.1 × 63.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VGA Proto?

62 components, from 33 distinct parts. The full bill of materials is listed on this page.

Where can I download the VGA Proto design files?

From the baldengineer/Mega-IIe repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the VGA Proto design in my own project?

Yes, under the terms of its MIT license, which baldengineer chose for the repository.

Can I test firmware for the VGA Proto without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
