Servid rp2040-hdmi proto rev1

baldengineer·Mega-IIe·kicad files/servid-rp2040-hdmi proto rev1/servid-rp2040-hdmi proto rev1.kicad_pcb

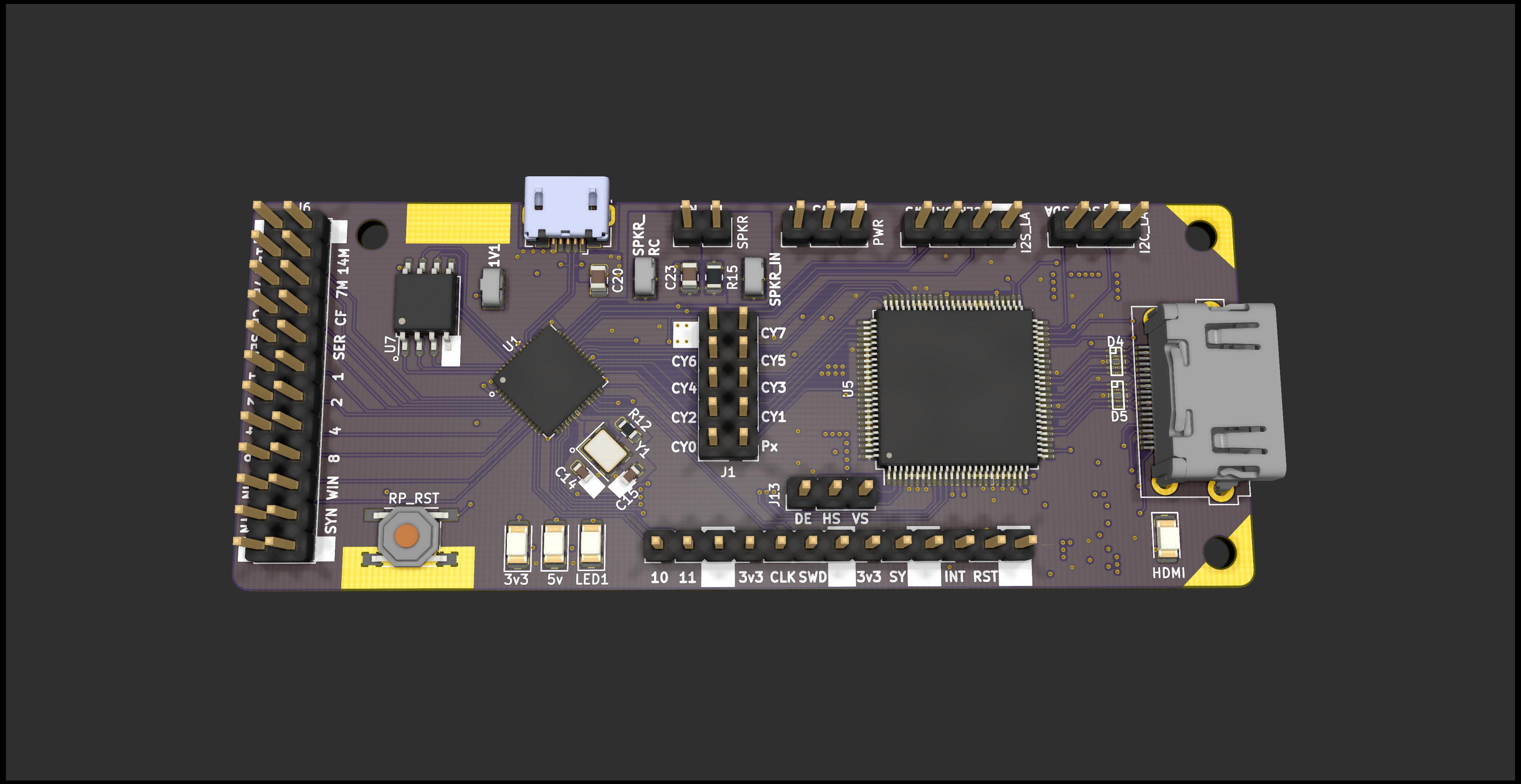

Servid rp2040-hdmi proto rev1 PCB layout, top view — open source RP2040/RP2350 board by baldengineer
Simulate this board

About the Servid rp2040-hdmi proto rev1 PCB

Servid rp2040-hdmi proto rev1 is an open source RP2040/RP2350 PCB design by baldengineer, published on GitHub under the MIT license. It is a 4-layer board measuring 88.1 × 34.5 mm, with 99 components from 44 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the MIC5504-3.3YM5, MIC5504-1.8YM5, IT6613, W25Q128JVS and TXB0108PW. By type, the board carries 39 capacitors, 25 resistors, 13 connectors, 8 ICs, 6 diodes and 3 test points.

From the project

Using the Mega II from a IIgs to make a Apple IIe compatible computer: The Mega IIe!

Servid rp2040-hdmi proto rev1, from the project README
From the project README

Main components on the Servid rp2040-hdmi proto rev1

RP2040MIC5504-3.3YM5MIC5504-1.8YM5IT6613W25Q128JVSTXB0108PW

Servid rp2040-hdmi proto rev1 bill of materials (BOM)

99 components, 44 distinct parts.

QtyPartRefs
1
RP2040
U1
2
MIC5504-3.3YM5
U2, U3
2
MIC5504-1.8YM5
U4, U6
1
IT6613
U5
1
W25Q128JVS
U7
1
TXB0108PW
U8
1
ECS-120-18-33-JEM
Y1
1
ITU-656
J1
1
INT_LA
J2
1
I2C_LA
J3
1
I2S_LA
J4
1
USB_B_Micro-CHECK FOOTPRINT
J5
1
VIDS
J6
1
10029449-111RLF
J7
1
SWD
J8
1
GPIO
J9
2
SYNCs
J10, J13
1
SPKR
J11
1
PWR
J12
1
RP_RST
SW1
Show 24 more
QtyPartRefs
1
TP_1v1
TP1
1
TP_SPKR_IN
TP2
1
TP_SPKR_RC
TP4
1
5v
D1
1
3v3
D2
1
HDMI
D3
2
RClamp0524P
D4, D5
1
LED1
D6
3
MPZ1608S221A
L1, L2, L3
8
1u
C1, C5, C9, C12, C19, C21, C35, C39
27
100n
C2, C3, C4, C6, C7, C8, C10, C11 +19
2
27p
C14, C15
1
10u
C20
1
100n
C23
5
470
R1, R2, R3, R14, R20
7
4k7
R4, R7, R8, R9, R10, R11, R13
1
698
R5
2
1k
R6, R21
1
1k
R12
1
100
R15
2
75k
R16, R18
2
49.9k
R17, R19
2
22k
R22, R24
2
47k
R23, R25

Servid rp2040-hdmi proto rev1 design files

The KiCad project lives in the baldengineer/Mega-IIe repository on GitHub; these links point at the commit this page was built from.

Servid rp2040-hdmi proto rev1: common questions

What microcontroller does the Servid rp2040-hdmi proto rev1 use?

The Servid rp2040-hdmi proto rev1 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Servid rp2040-hdmi proto rev1 PCB?

The Servid rp2040-hdmi proto rev1 measures 88.1 × 34.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Servid rp2040-hdmi proto rev1?

99 components, from 44 distinct parts. The full bill of materials is listed on this page.

Where can I download the Servid rp2040-hdmi proto rev1 design files?

From the baldengineer/Mega-IIe repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Servid rp2040-hdmi proto rev1 design in my own project?

Yes, under the terms of its MIT license, which baldengineer chose for the repository.

Can I test firmware for the Servid rp2040-hdmi proto rev1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
